Removal and Installation

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the transmission. For additional information, refer to AUTOMATIC TRANSMISSION - 5R55S .

Remove the components in the order indicated in the following illustration and table. To remove individual components, carry out only the listed steps.

COMPONENT STEPS SPECIFICATION CHART

Component	Steps
Flexplate	1-2
Crankshaft rear seal	1-4

To install, reverse the removal procedure.

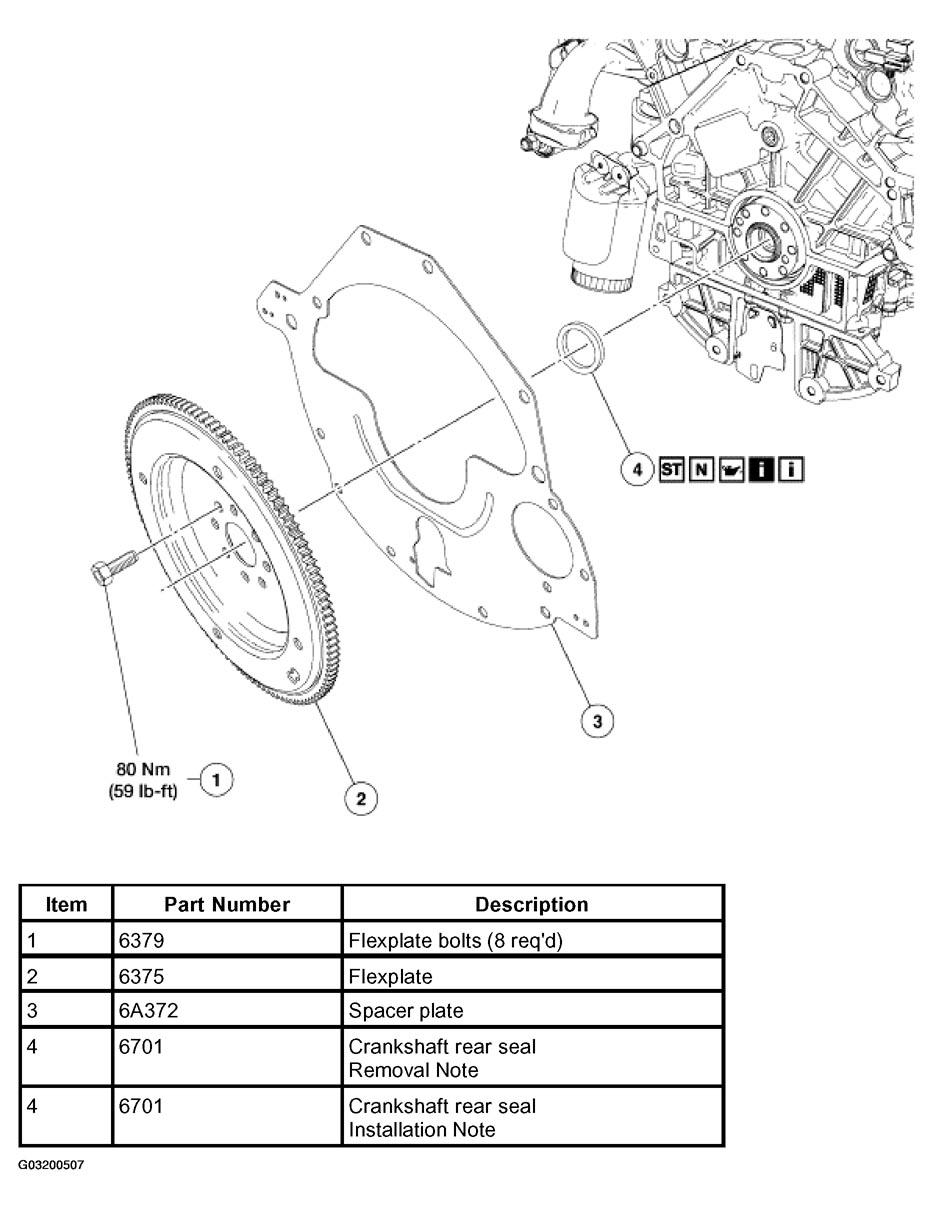

Fig 1: Removing Flexplate
Courtesy of FORD MOTOR CO.

Item 4: Crankshaft Rear Seal Removal Note

Using the special tools, remove the crankshaft rear seal.

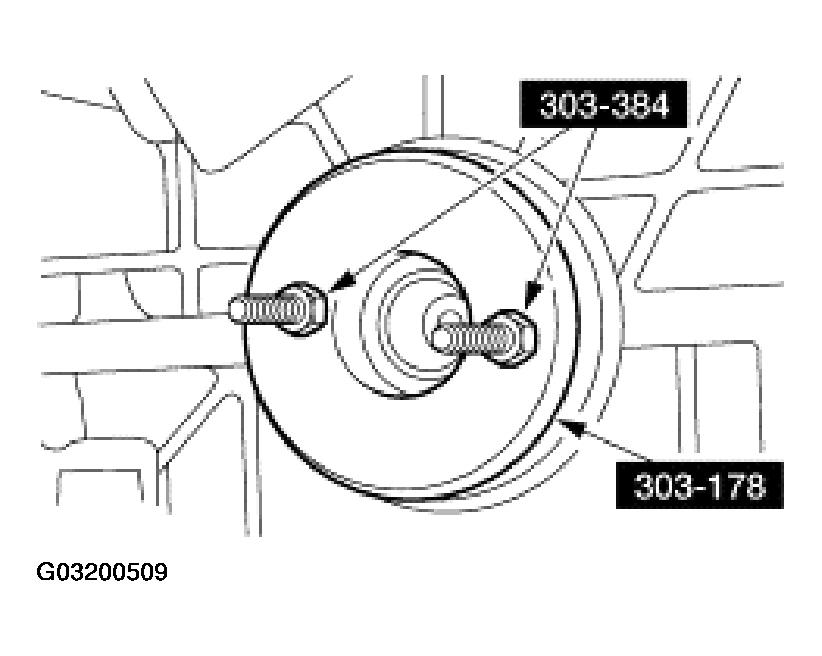

Fig 2: Removing Crankshaft Rear Seal
Courtesy of FORD MOTOR CO.

Item 4: Crankshaft Rear Seal Installation Note

Lubricate the outer lips and the inner seal on the crankshaft rear seal with clean engine oil.
Using the special tools, install the crankshaft rear oil seal.

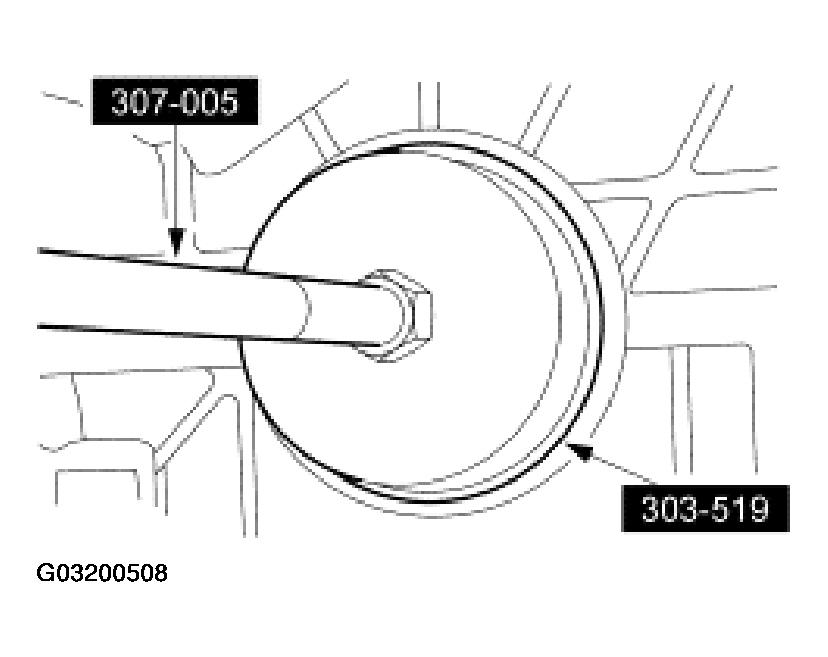

Fig 3: Installing Crankshaft Rear Oil Seal
Courtesy of FORD MOTOR CO.
