Removal and Installation

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in neutral, position it on a hoist.

Remove the components in the order indicated in the following illustration and table. To remove individual components, only carry out the listed steps.

COMPONENT STEPS SPECIFICATION

Component	Steps
Exhaust gas recirculation (EGR) valve system module	1-2, 4-7
Exhaust manifold-to-EGR valve tube	2-3

To install, reverse the removal procedure.

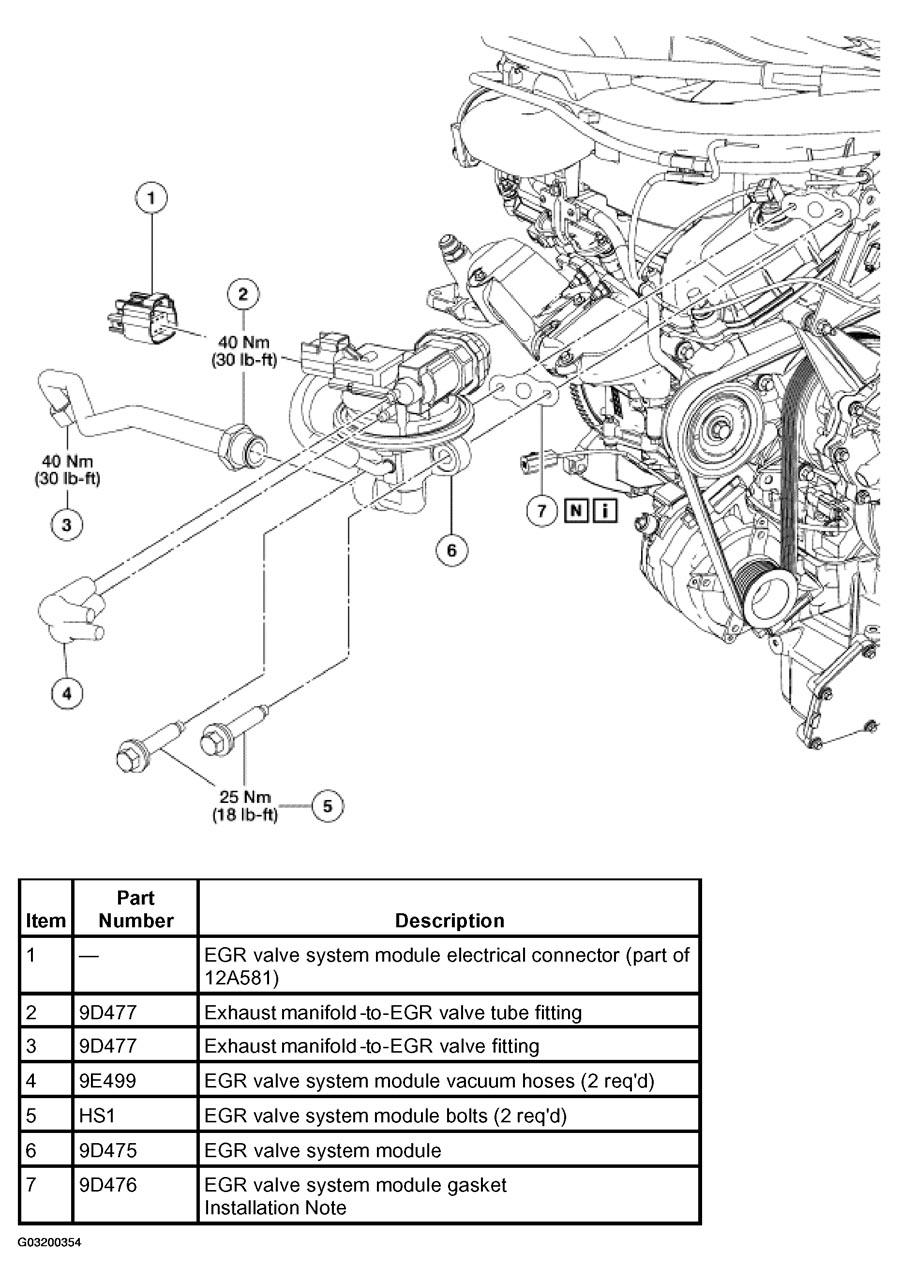

Fig 1: Removing Exhaust Gas Recirculation (EGR) Valve
Courtesy of FORD MOTOR CO.

Step 7: EGR Valve System Module Gasket Installation Note

CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs, or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of gasket material.

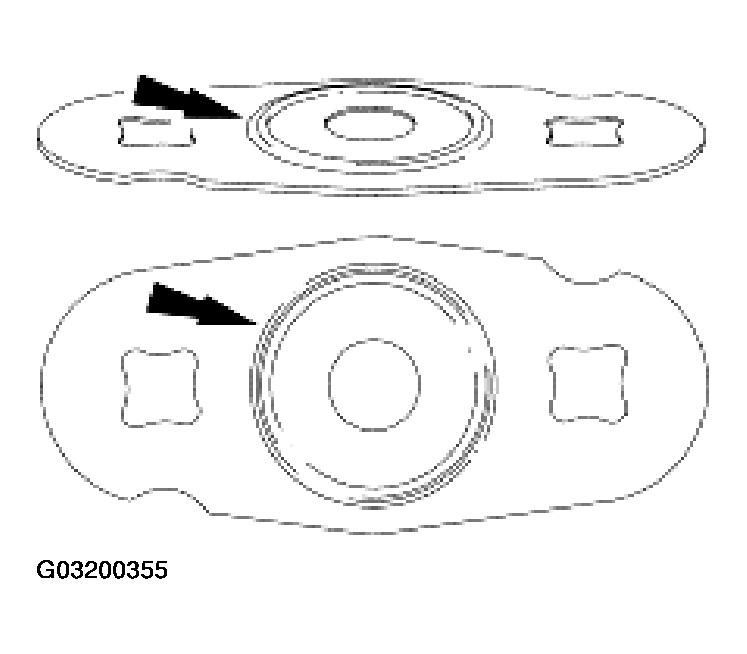

Fig 2: Installing New EGR Valve System Gasket

Courtesy of FORD MOTOR CO.

Clean the EGR valve system module gasket mating surfaces. Install a new gasket with the side with the raised circle facing the intake manifold.
