Removal and Installation

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in neutral, position it on a hoist.
Remove the intake manifold tuning valves. For additional information, refer to INTAKE AIR, FUEL CHARGING, STARTING & ENGINE ELECTRONICS - 3.0L (4V) .
Remove the fresh air inlet duct housing. For additional information, refer to INTAKE AIR, FUEL CHARGING, STARTING & ENGINE ELECTRONICS - 3.0L (4V) .
Remove the components in the order indicated in the following illustration and table.

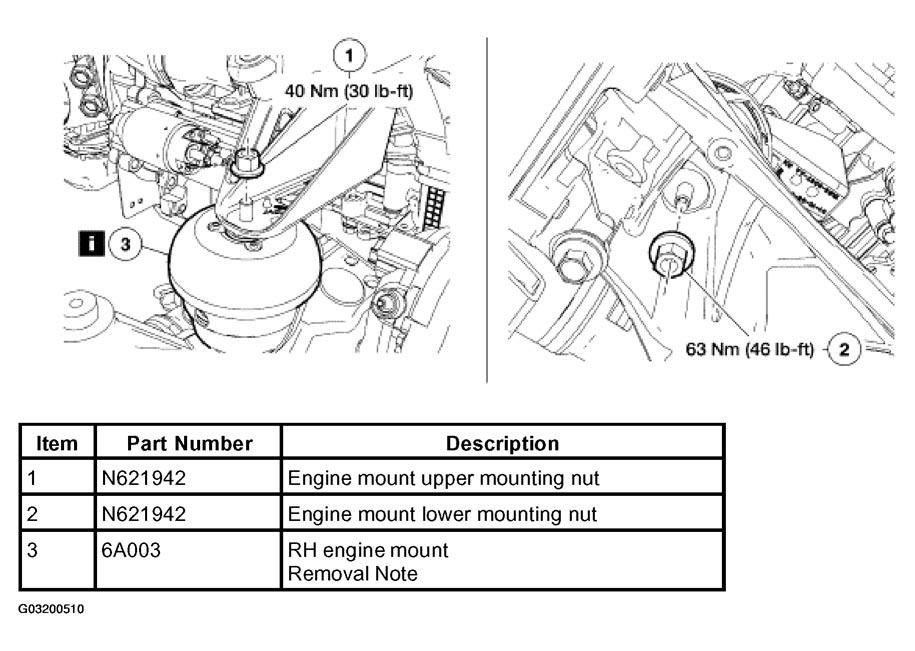

Fig 1: Removing Engine Mount - RH
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

Item 3: RH Engine Mount Removal Note

Raise the engine and remove the engine mount.
