Removal and Installation

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Some of the following references contain referrals to other procedures that also must be completed. These procedures must be carried out in their entirety in order to complete this procedure.

Remove the RH camshafts. For additional information, refer to CAMSHAFT, VALVE SPRINGS AND VALVE SEALS in this section.
Remove the RH exhaust manifold. For additional information, refer to EXHAUST MANIFOLD - RH in this section.
Remove the lower intake manifold. For additional information, refer to LOWER INTAKE MANIFOLD in this section.
Remove the components in the order indicated in the following illustration and table.
To install, reverse the removal procedure.

Fig 1: Removing Lower Intake Manifold
Courtesy of FORD MOTOR CO.

Item 6: Cylinder Head Bolts Removal Note

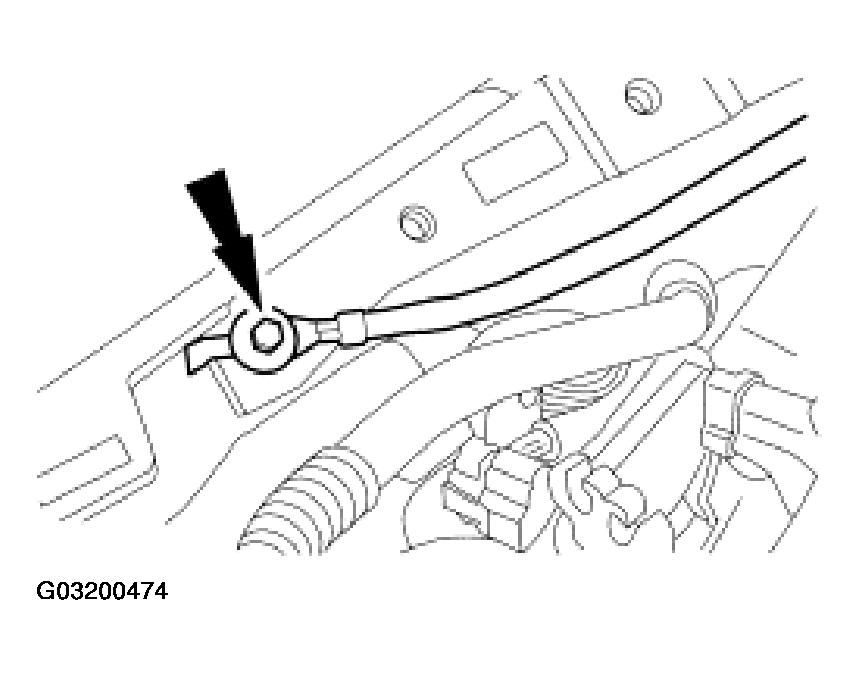

Remove the ground strap.

Fig 2: Removing Ground Strap
Courtesy of FORD MOTOR CO.

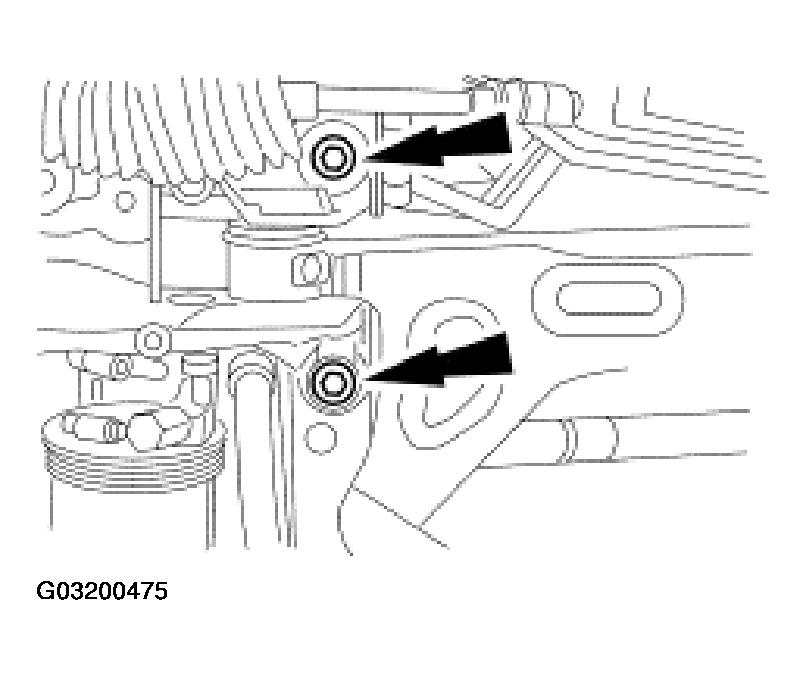

Install the four crossmember bolts.

Fig 3: Installing Crossmember Bolts
Courtesy of FORD MOTOR CO.
Remove the special tool.

Fig 4: Removing Special Tool
Courtesy of FORD MOTOR CO.

NOTE: The straightedge used must be flat within 0.0051 mm (0.0002 in) per foot of tool length.

Support the cylinder head on a bench with the head gasket side up. Inspect all areas of the deck face with a straightedge and feeler gauge. The cylinder head must not have depressions deeper than 0.0254 mm (0.001 in) across a 38.1 mm (1.5 in) square area, or scratches more than 0.0254 mm (0.001 in) deep.

Items 6, 7 and 8: Cylinder Head Bolts, Cylinder Head, and Cylinder Head Gasket Installation Note

CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.

CAUTION: New cylinder head bolts must be installed. They are tighten-to-yield designed and cannot be reused.

NOTE: LH and RH cylinder head gaskets are not interchangeable.

Using a new cylinder head gasket and bolts, install the RH cylinder head and loosely install the bolts.
Tighten the bolts in six stages in the sequence shown. See Fig 5.
- Stage 1: Tighten to 30 N.m (22 lb-ft).
- Stage 2: Rotate 90 degrees.
- Stage 3: Back out a minimum of one full turn (360 degrees).
- Stage 4: Tighten to 30 N.m (22 lb-ft).
- Stage 5: Rotate 90 degrees.
- Stage 6: Rotate all bolts an additional 90 degrees.

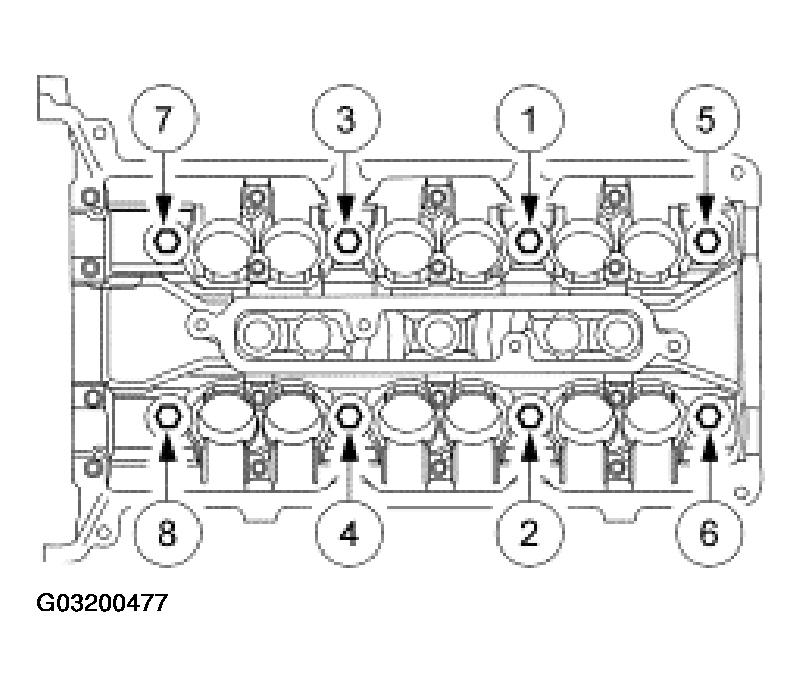

Fig 5: Tightening RH Cylinder Head Bolts Sequence
Courtesy of FORD MOTOR CO.

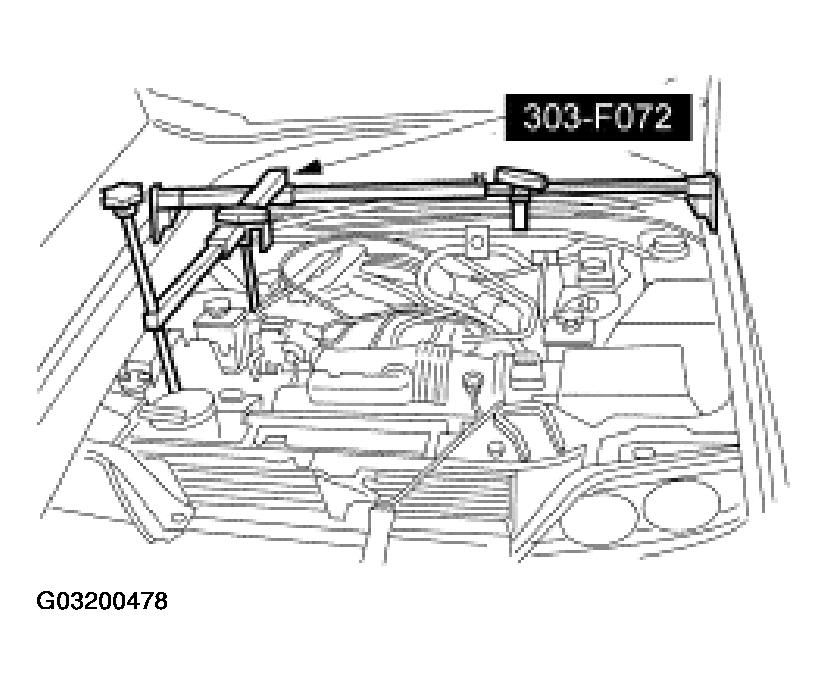

Install the special tool.

Fig 6: Identifying Special Tool
Courtesy of FORD MOTOR CO.

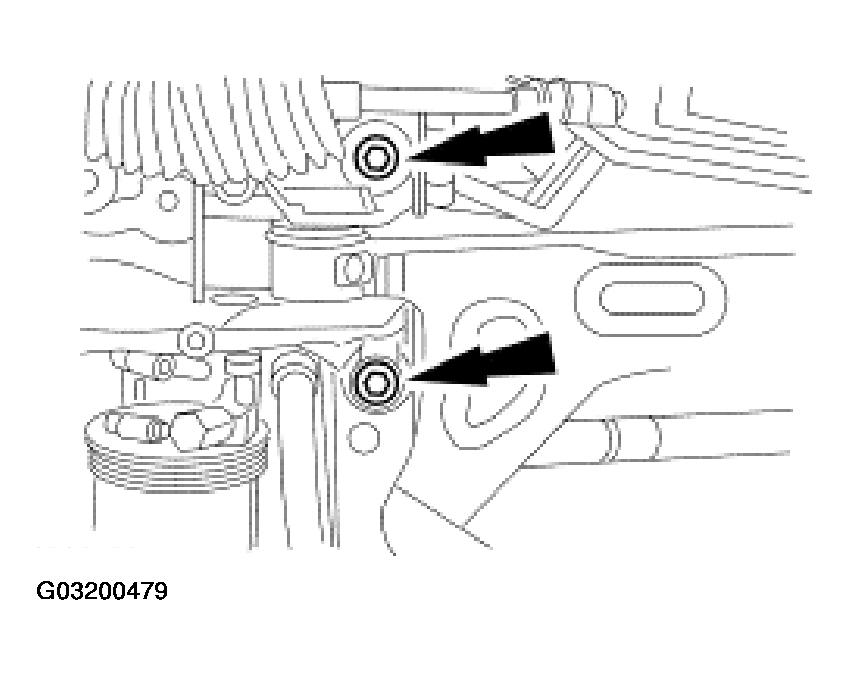

Remove the four crossmember bolts.

Fig 7: Removing Crossmember Bolts
Courtesy of FORD MOTOR CO.

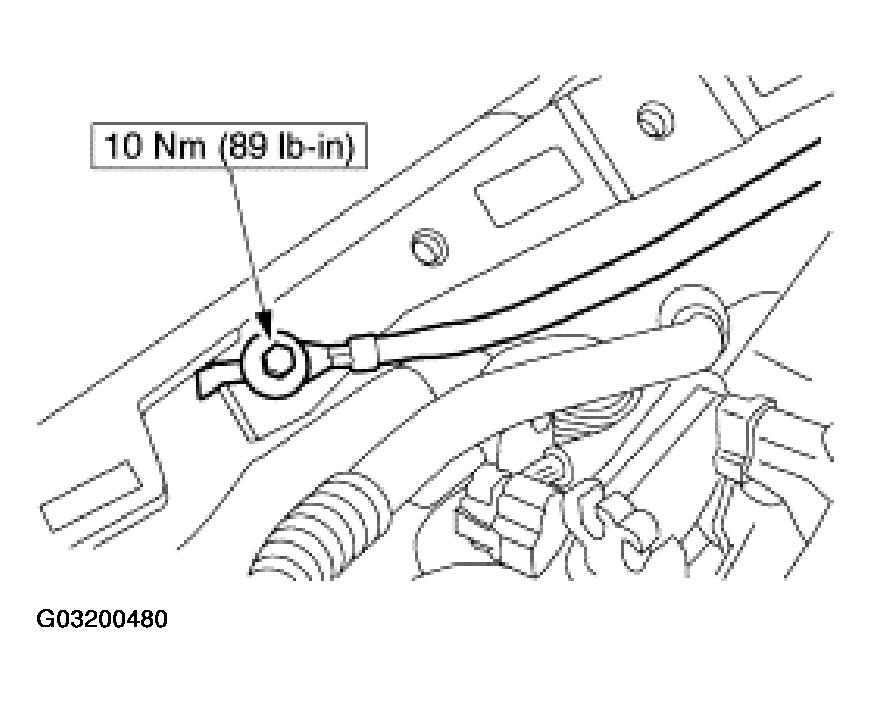

Install the ground strap.

Fig 8: Installing Ground Strap
Courtesy of FORD MOTOR CO.
