Component Locations - 3.0L

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

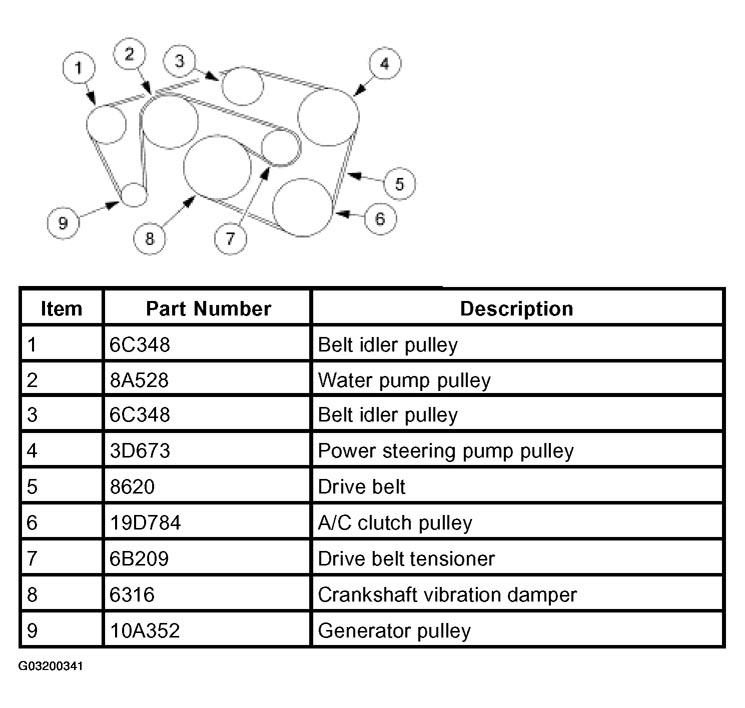

Fig 1: Identifying Accessory Drive Belt Component Locations
G03200341Courtesy of FORD MOTOR CO.
