Inspection Procedure

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Measure the crankshaft end play. Use a Dial Indicator Gauge with Holding Fixture to measure crankshaft end play.
  2. Position the crankshaft to the rear of the cylinder block.
  3. Zero the indicator.
  4. Move the crankshaft to the front of the cylinder block. Note and record the crankshaft end play.
    • If crankshaft end play exceeds specifications, install a new crankshaft thrust washer or crankshaft thrust main bearing. Refer to ENGINE - 3.0L (4V) or ENGINE - 3.9L for the procedure.

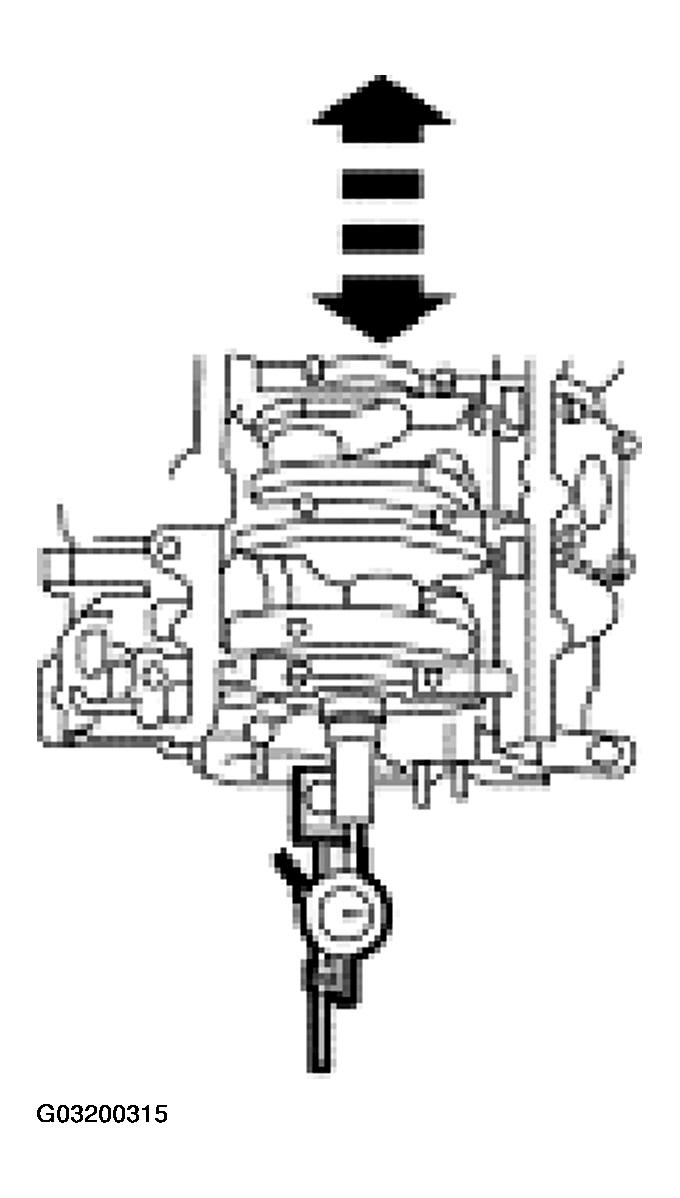

    Fig 1: Measuring Crankshaft End Play
    G03200315Courtesy of FORD MOTOR CO.
