Special Tool(s)

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

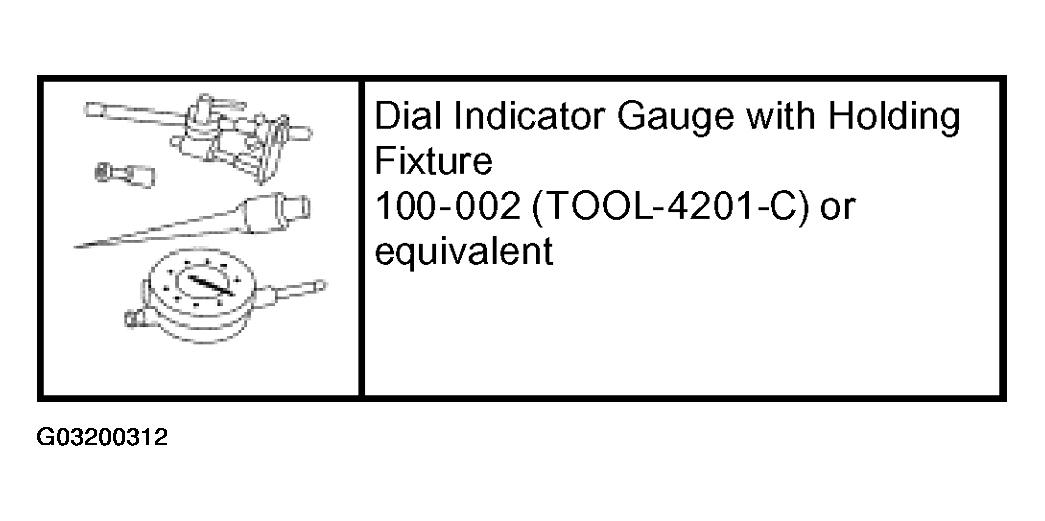

Fig 1: Identifying Special Tool - Camshaft Runout

Courtesy of FORD MOTOR CO.

NOTE: Camshaft journals must be within specifications before checking runout.

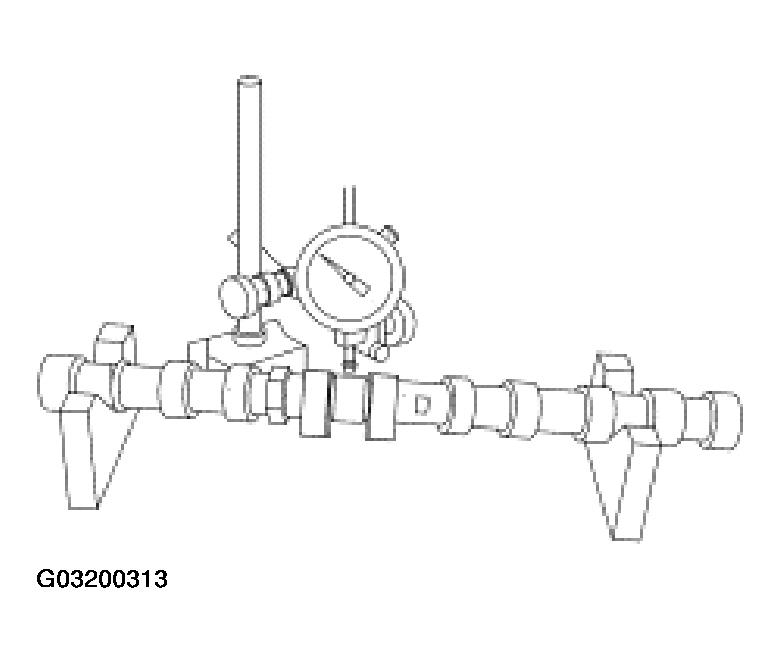

Fig 2: Measuring Camshaft Runout

Courtesy of FORD MOTOR CO.

Use a Dial Indicator Gauge with Holding Fixture to measure the camshaft runout.
- Rotate the camshaft and subtract the lowest indicator reading from the highest indicator reading.
- For additional information, refer to specification chart in ENGINE - 3.0L (4V) or ENGINE - 3.9L for the procedure.
- If out of specification, install new components as necessary. Refer to ENGINE - 3.0L (4V) or ENGINE - 3.9L for the procedure.
