Removal & Installation

WARNING: This page is about a different car, the 2004 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support vehicle. Remove wheel.
  2. Remove rear caliper. See REAR CALIPER  . Suitably support caliper.
  3. Remove pads. See Fig 1 .
  4. Compress piston into brake caliper using Rear Caliper Piston Adjuster (T75P-2588-A). See Fig 2 .
  5. To install, reverse removal procedure. Tighten fasteners to specification. See TORQUE SPECIFICATIONS  .

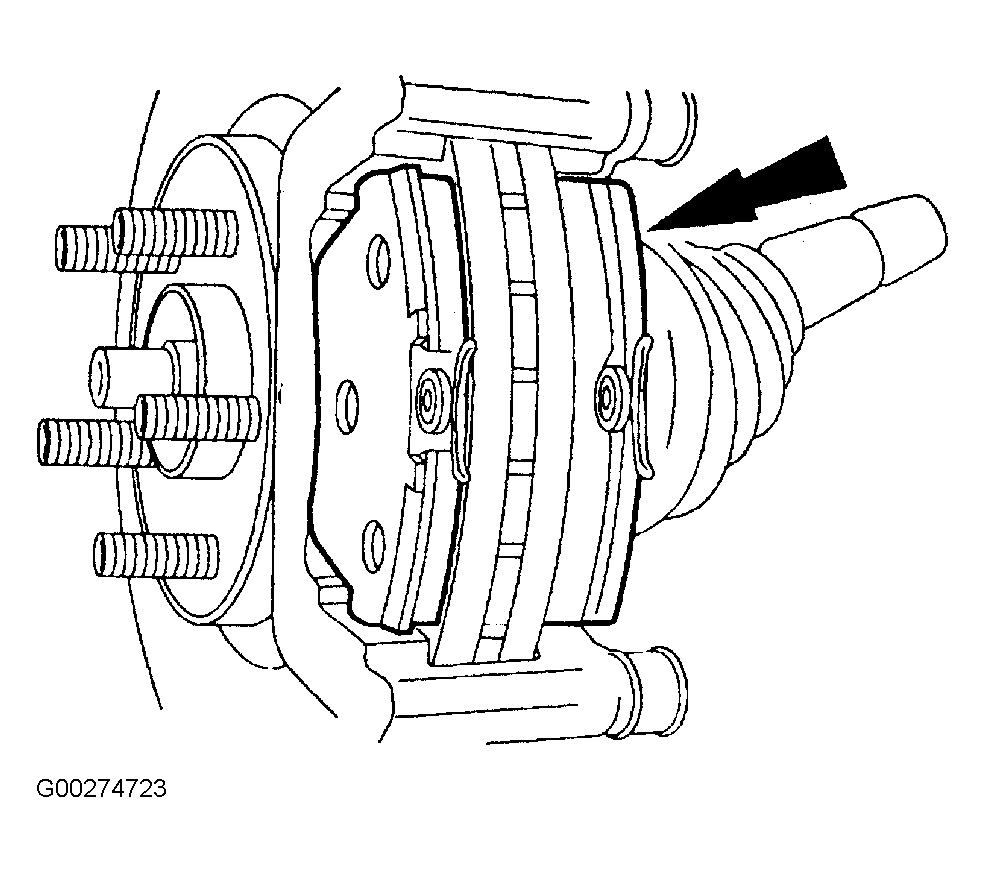

Fig 1: Removing Rear Brake Pads
G00274723Courtesy of FORD MOTOR CO.

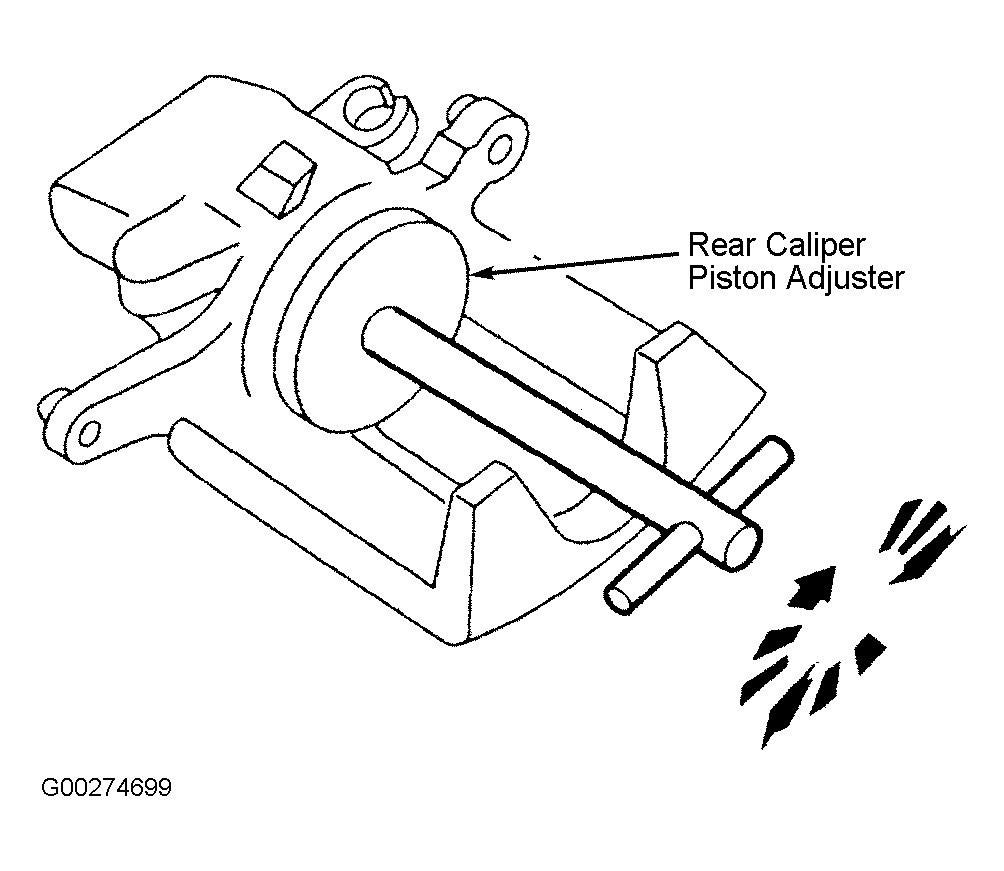

Fig 2: Compressing Rear Brake Piston Into Caliper
G00274699Courtesy of FORD MOTOR CO.
