Rear Brake Caliper: Disassembly

WARNING: This page is about a different car, the 2004 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain brake fluid from caliper.
  2. Secure caliper in vise.
  3. Turn piston counterclockwise using Rear Caliper Piston Adjuster (T75P-2588-B) or equivalent. See Fig 1 .
  4. Remove piston from bore.
  5. Remove and discard dust boot and seal from caliper bore.

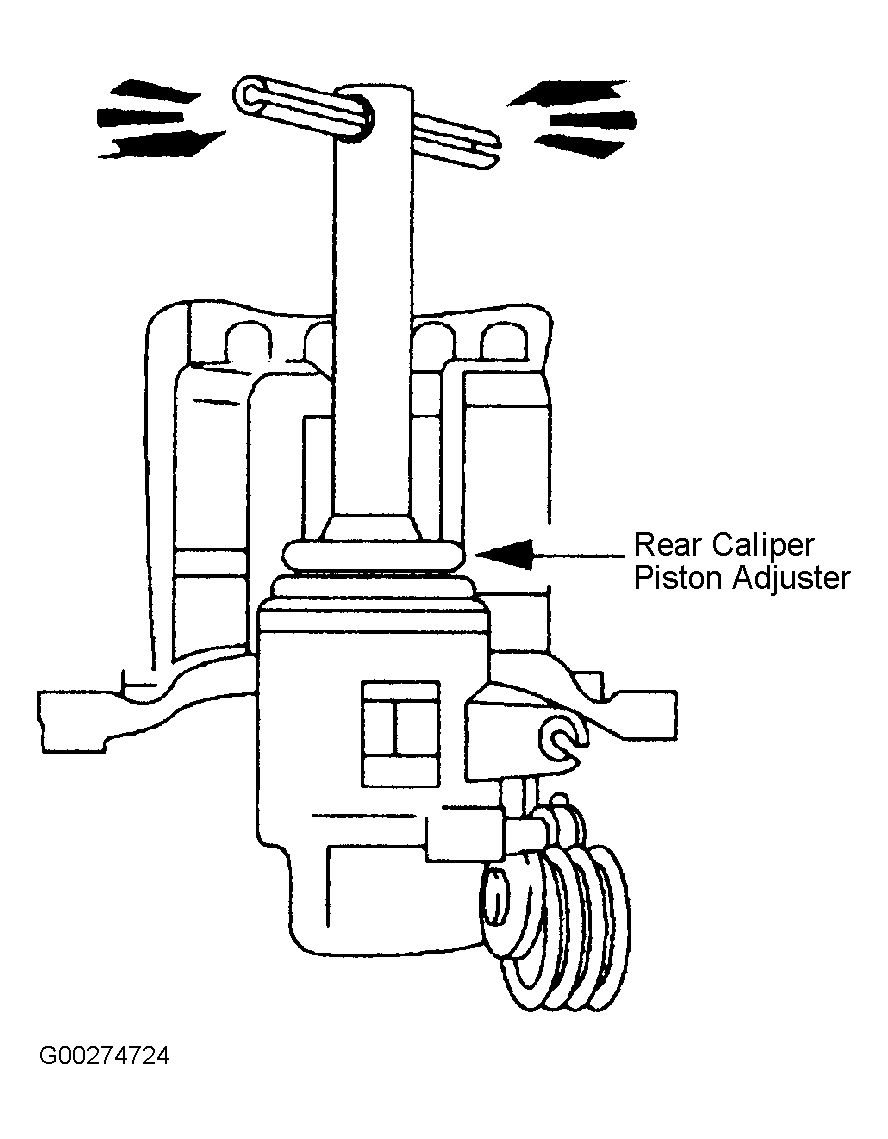

Fig 1: Removing Rear Caliper Piston
G00274724Courtesy of FORD MOTOR CO.
