Front Brake Caliper: Disassembly

WARNING: This page is about a different car, the 2004 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain remaining brake fluid from caliper.
  2. Place block of wood between caliper bridge and caliper pistons. See Fig 1 .
  3. Apply low air pressure to fluid port in caliper to remove pistons.

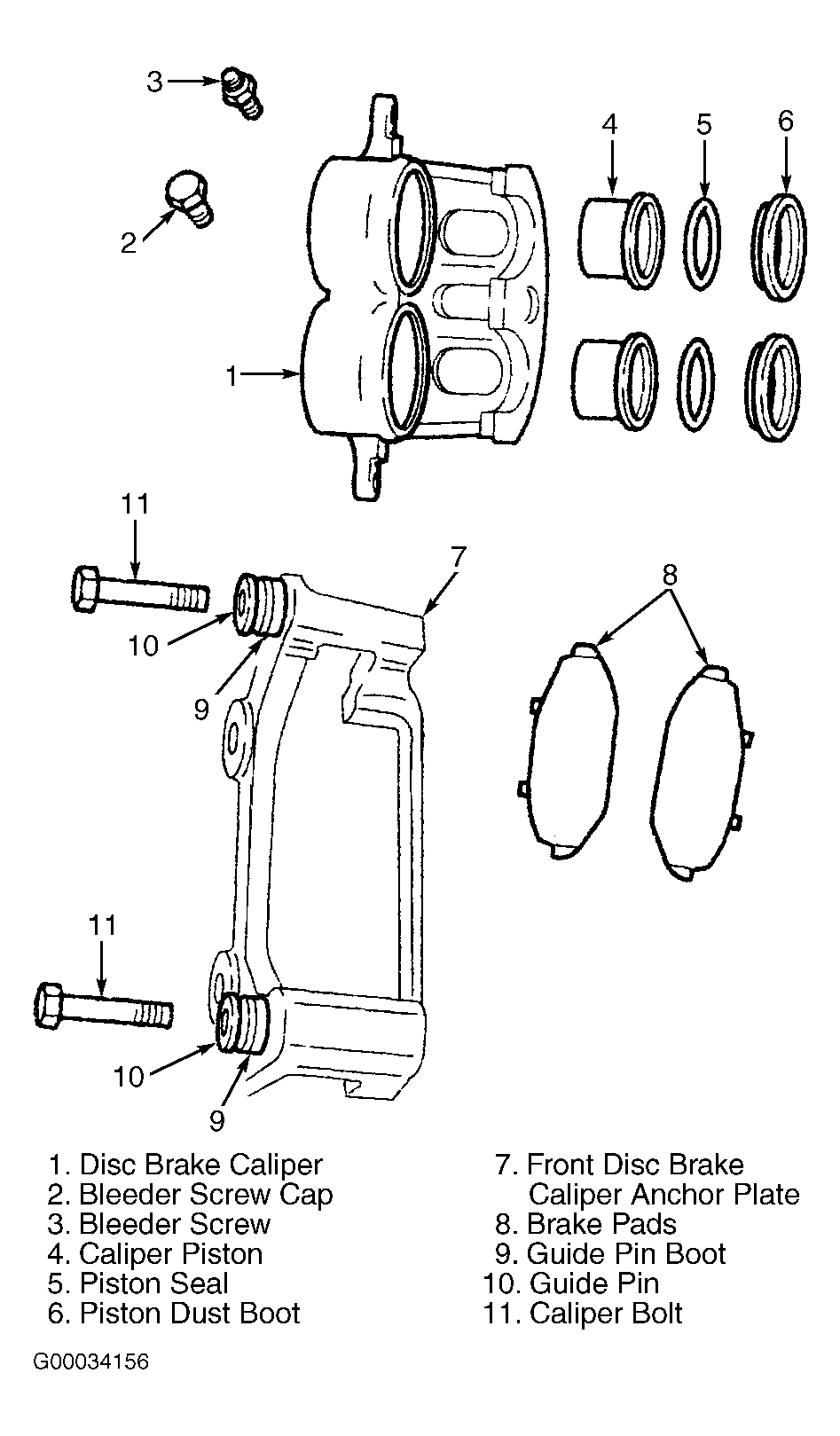

  4. Remove and discard piston seals and boots. See Figure .
  5. Remove and discard bleed screw and cap.

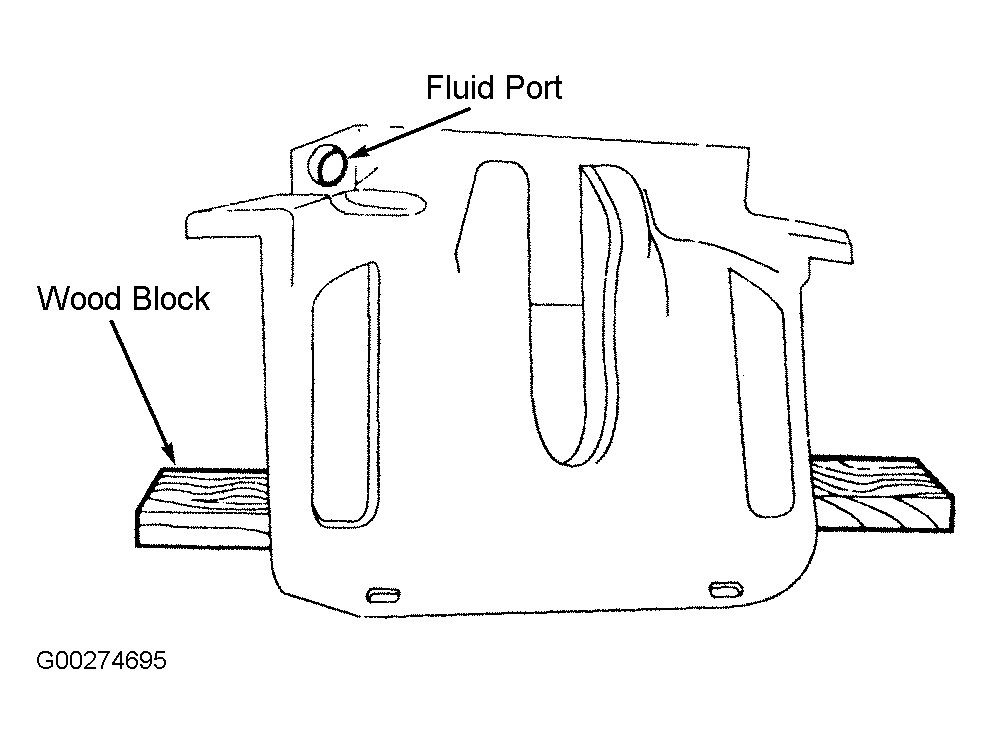

Fig 1: Locating Wood Block For Caliper Piston Removal
G00274695Courtesy of FORD MOTOR CO.
