Steering Column Switches: Removal

1. Remove the driver air bag module. For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
2. Tilt the steering column all the way down and extend it all the way out.
3. Position the front wheels to the straight-ahead position.
NOTE: Do not allow the clockspring to turn from its removal position.

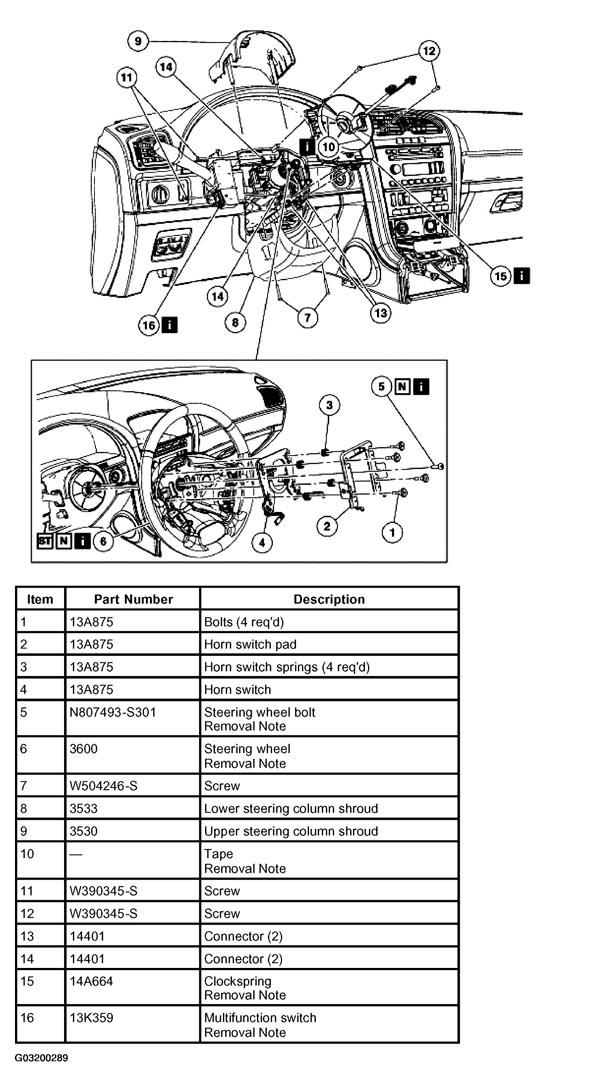

Fig 1: Removing Steering Column Switches Component
Courtesy of FORD MOTOR CO.
4. Remove the parts in the order indicated in the following illustration and table.

Item 5: Steering Wheel Bolt Removal Note

1. Loosen the bolt and do not remove it until the steering wheel has been loosened from the column.

Item 6: Steering Wheel Removal Note

1. Using the special tool, press on the bolt until the steering wheel is loose from the column.
   • Remove and discard the steering wheel bolt.
   • Remove the steering wheel.

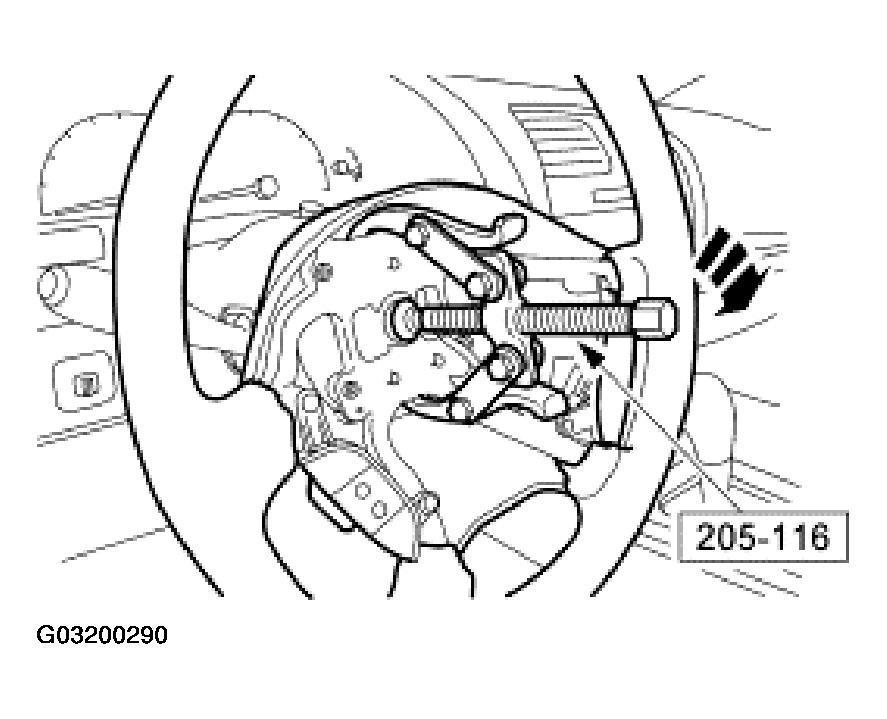

   Fig 2: Pressing Bolt Until Steering Wheel Loosening From Column Using Special Tool

   Courtesy of FORD MOTOR CO.

Item 10: Tape Removal Note

1. Apply two strips of masking tape across the clockspring to prevent accidental rotation when the clockspring and multifunction switch are removed.

Item 15: Clockspring Removal Note

1. Remove the clockspring and the multifunction switch as an assembly.

Item 16: Multifunction Switch Removal Note

1. Release the tabs and slide the multifunction switch out of the clockspring.

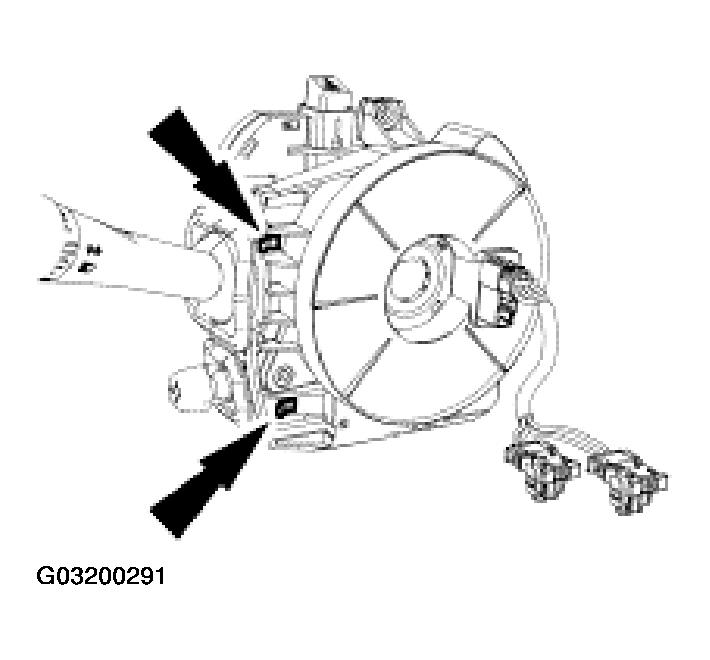

   Fig 3: Releasing Tabs And Slide Multifunction Switch Out Of Clockspring

   Courtesy of FORD MOTOR CO.
