Power Steering Reservoir

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the parts in the order indicated in the following illustration and table.

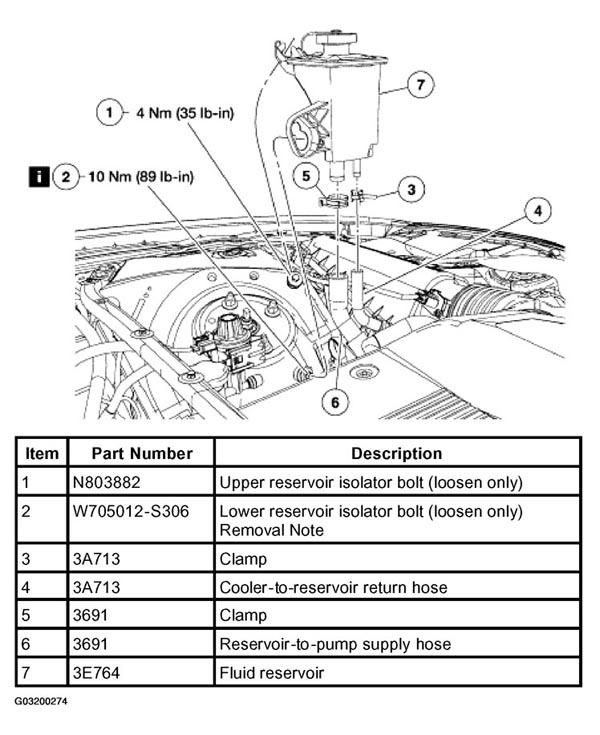

Fig 1: Removing Power Steering Part
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
Fill and leak test the system. For additional information, refer to POWER STEERING SYSTEM FILLING in this section.

Item 2: Lower Reservoir Isolator Bolt Removal Note

Loosen the bolt and detach the reservoir from the isolators.
