Removal and Installation

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the air conditioning condenser. For additional information, refer to ENGINE COOLING .
Remove the parts in the order indicated in the following illustration and table.

Fig 1: Removing Air Conditioning Condenser Parts Sequence
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
Fill and leak test the system. For additional information, refer to POWER STEERING SYSTEM FILLING in this section.

Item 1: Hose Clamps Installation Note

Using the special tool, tighten the clamps.

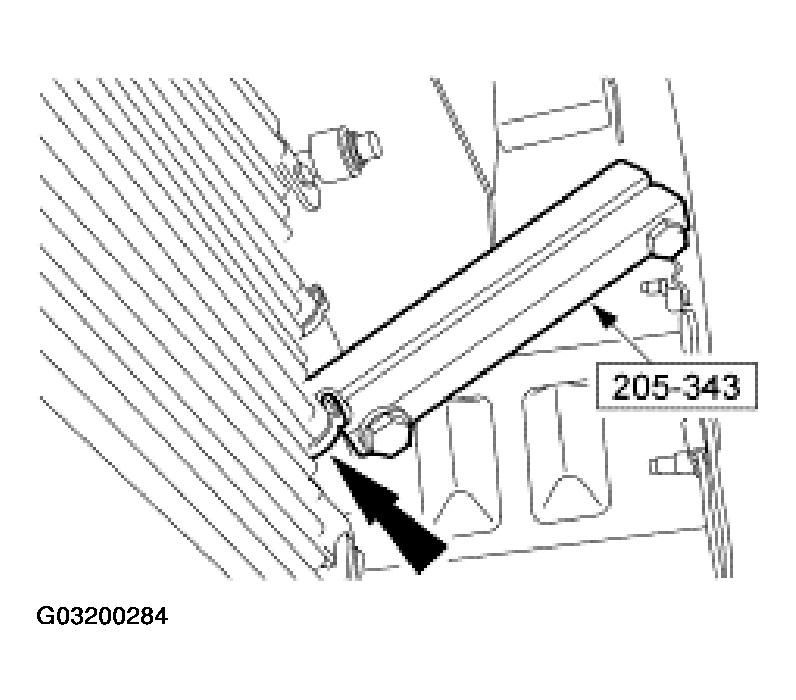

Fig 2: Tightening Clamps Using Special Tool
Courtesy of FORD MOTOR CO.
