Removal and Installation

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the steering gear. For additional information, refer to STEERING GEAR in this section.
Drain any excess power steering fluid from the steering gear and then clean the exterior of the gear using a suitable solvent.
Index-mark the tie-rod end to the tie-rod end jam nut and to the spindle tie-rod.
Disassemble the components in the order indicated in the following illustration and table.
To assemble, reverse the disassembly procedure.

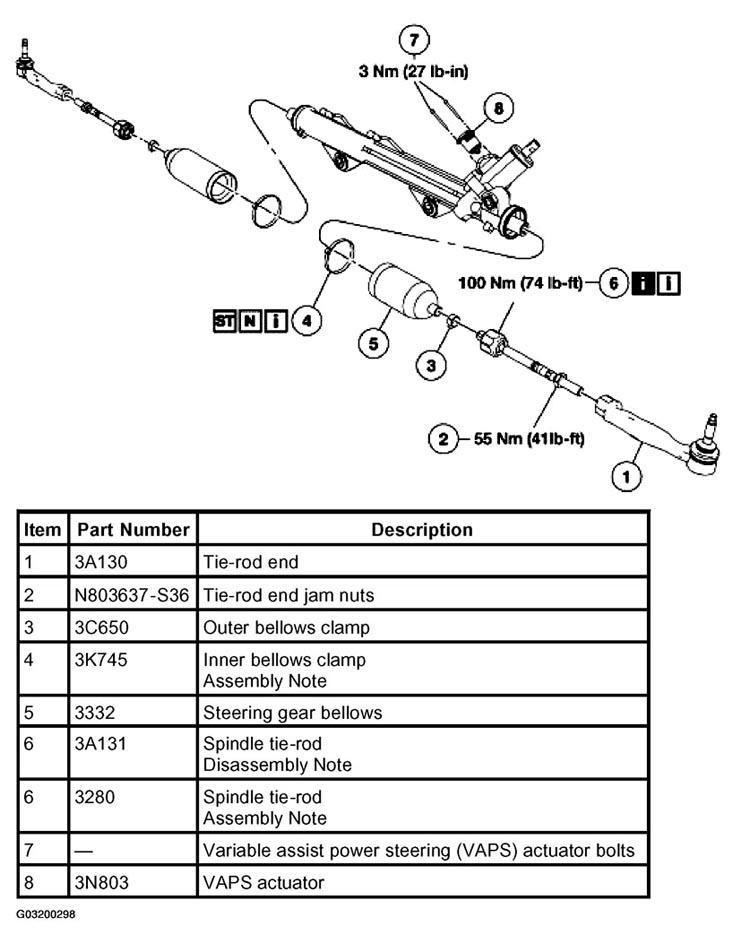

Fig 1: Disassembly Steering Gear Assembly
Courtesy of FORD MOTOR CO.
After installing the steering gear in the vehicle, adjust the front toe. For additional information, refer to FRONT article .

Item 6: Spindle Tie-Rod Disassembly Note

CAUTION: To resist rotation and prevent damage to the steering gear during removal of the spindle tie-rods, center the steering gear and position the rack gear in a soft-jawed vice.

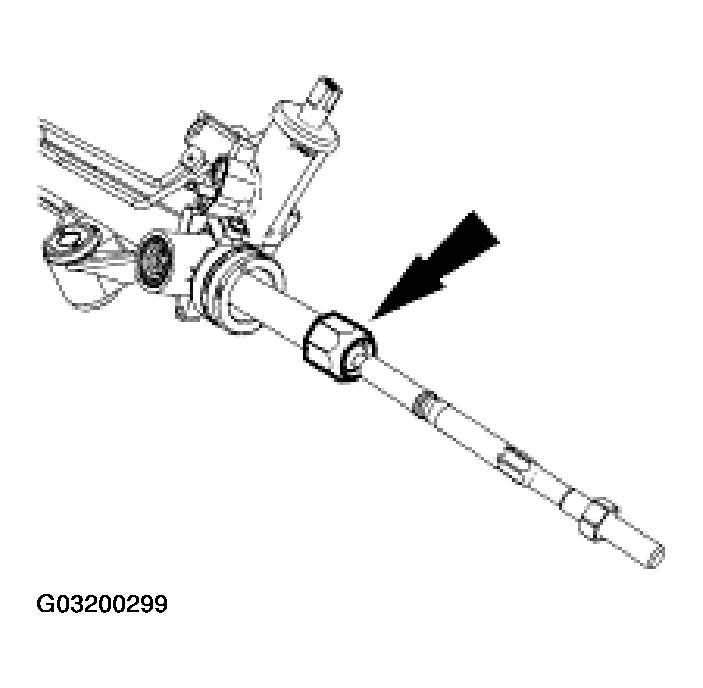

Fig 2: Removing Spindle Tie-Rod

Courtesy of FORD MOTOR CO.

Remove the spindle tie-rod.

Item 6: Spindle Tie-Rod Assembly Note

CAUTION: To resist rotation and prevent damage to the steering gear during removal of the spindle tie-rods, center the steering gear and position the rack gear in a soft-jawed vice.

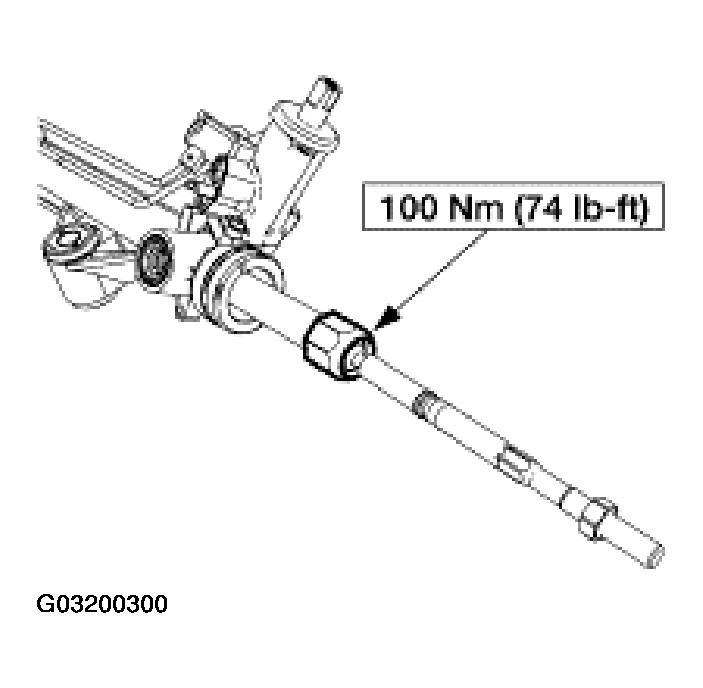

Fig 3: Installing Spindle Tie-Rod

Courtesy of FORD MOTOR CO.

Install the spindle tie-rod.

Item 4: Inner Bellows Clamp Assembly Note

Using the special tool, install the clamps.

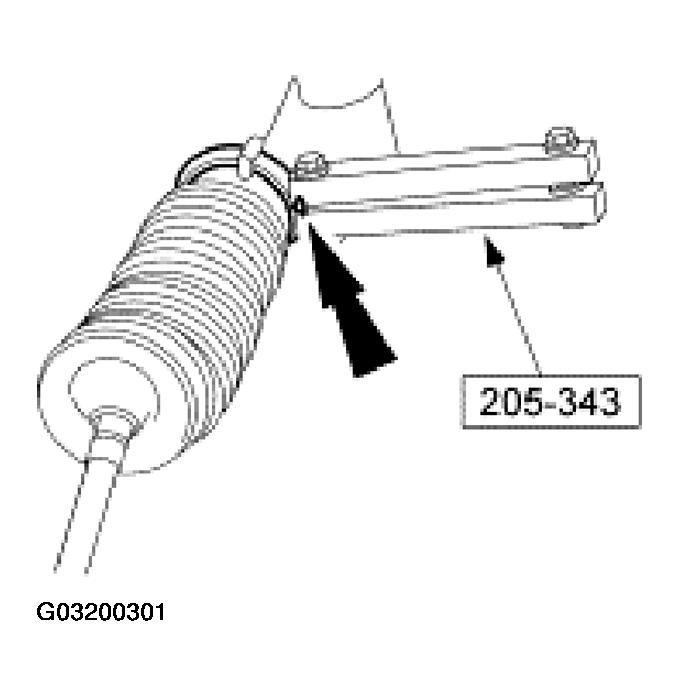

Fig 4: Installing Clamps Using Special Tool
Courtesy of FORD MOTOR CO.
