VAPS Solenoid-C120
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

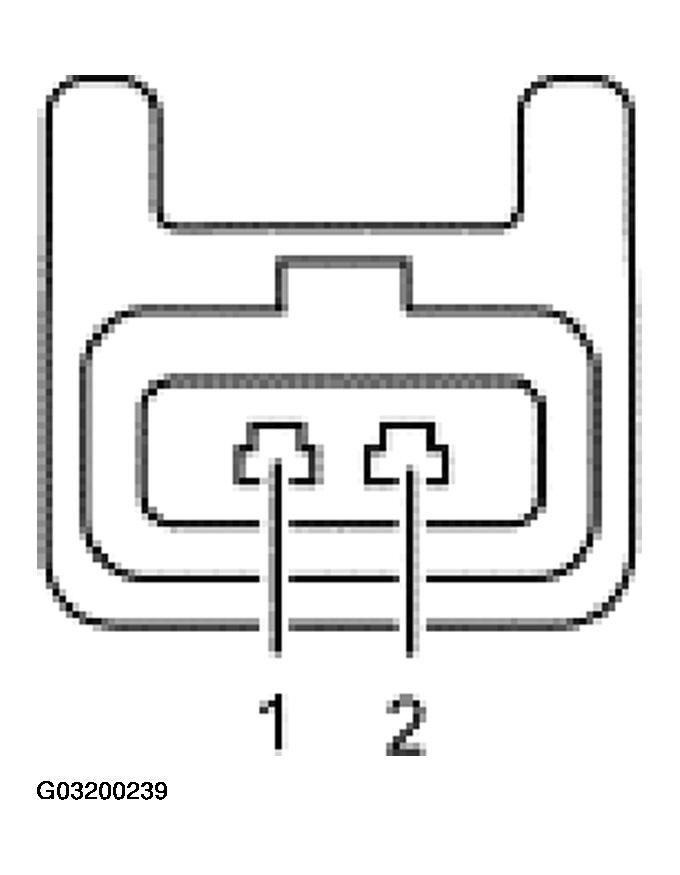

TERMINAL READINGS CONNECTOR
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 8-CE9 (WH/GN) VAPS solenoid input signal | Voltage varies with FEM module output from 1 to 12 volts. |
| 2 | 9-CE9 (BN/GN) VAPS solenoid feedback signal (to FEM module) | Voltage varies with VAPS solenoid position. |
