Tilt/Telescope Switch C2250

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
CIRCUIT DESCRIPTION

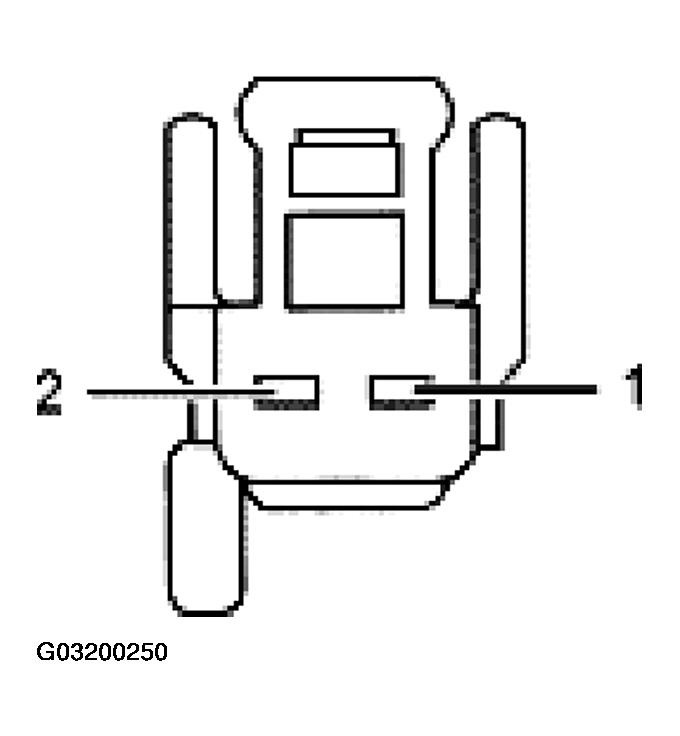

G03200250
Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
1 8-AL10 (WH) tilt/telescope switch input signal to the instrument cluster 5 volt reference with ignition in ACC and RUN position.
2 9-AL10 (BN) tilt/telescope switch input signal from instrument cluster Voltage varies with switch actuation, zero volts with switch in neutral position.
