Tilt/Telescope Motor C227

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
CIRCUIT DESCRIPTION

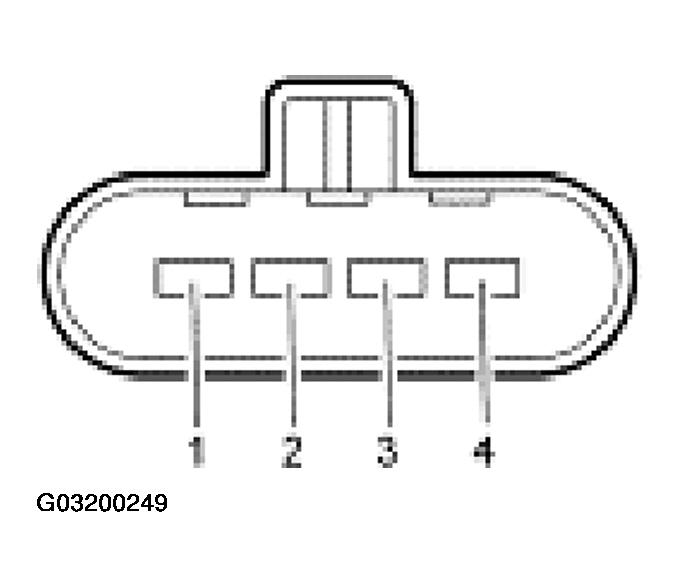

G03200249
Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
1 33-AL6 (YE/BU) tilt motor power 10 to 12 volts upon tilt/telescope switch actuation or memory position recall with ignition in ACC and RUN.
2 32-AL6 (WH/BU) tilt motor ground 0 volts, less than 5 ohms to chassis ground.
3 35-AL7 (VT/BK) telescope motor ground 0 volts, less than 5 ohms to chassis ground.
4 34-AL7 (BU/BK) telescope motor power 10 to 12 volts upon tilt/telescope switch actuation or memory position recall with ignition in ACC and RUN.
