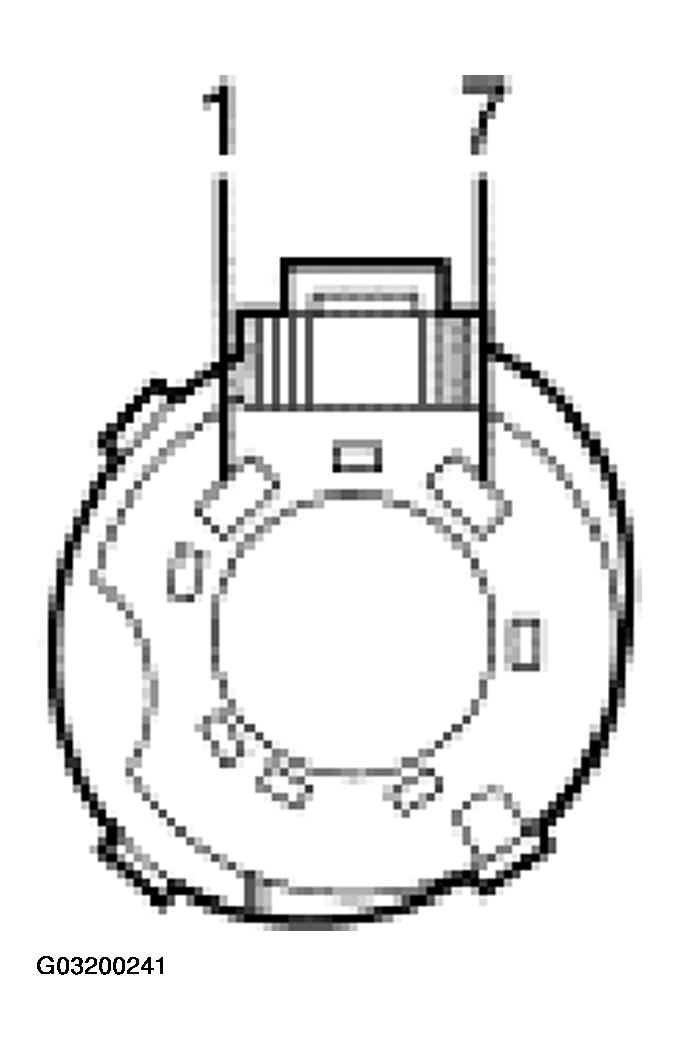

Ignition Switch Connector C250
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
CONNECTOR TERMINAL READINGS CHART
|
|
| Pin Number(s) |
Circuit Designation/Description |
Normal Condition/Measurement |
| 1 |
30-BB9 (RD) ignition switch supply voltage |
B+ voltage at all times (not overload protected). |
| 7 |
30-BB20 (RD) ignition START, RUN and key-in-switch voltage |
B+ voltage at all times. |
