Battery Junction Box (BJB) Connector C270a
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

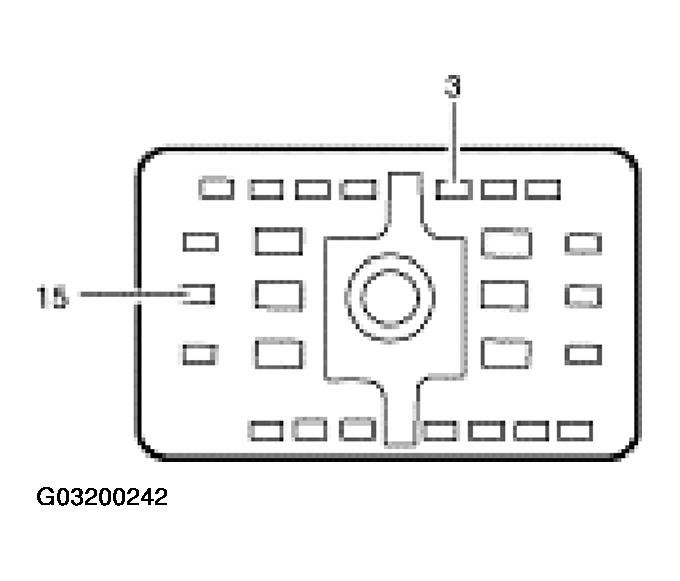

CONNECTOR TERMINAL READINGS CHART
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 3 | 15-DD4 (GN/BK) ignition START and RUN voltage | B+ voltage with ignition switch in Start and RUN. |
| 15 | 75-DD1 (YE) ignition accessory (ACC) and RUN power from ignition switch | B+ voltage with ignition switch in RUN and ACC. |
