Test Procedure

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Use the Flex Probe Kit for all test connections to prevent damage to the wiring terminals. Do not use standard multimeter probes.

  1. B1 - CHECK CIRCUIT 7-CF65 (YE/VT) FOR AN OPEN

    • Key in OFF position.
    • Disconnect: ABS Module C135.
    • Measure the voltage between ABS module C135-26, circuit 7-CF65 (YE/VT), harness side, and ground.
    • Is the voltage greater than 10 volts?

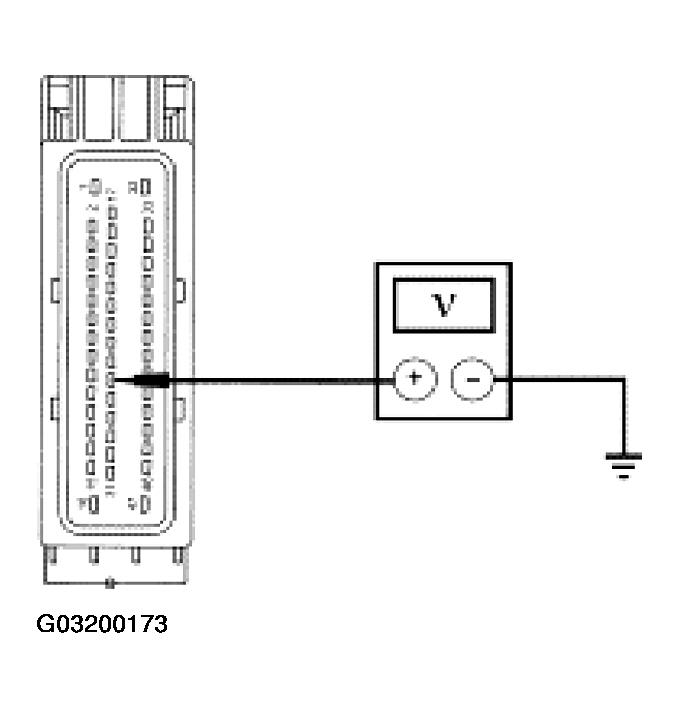

      Fig 1: Checking Circuit 7-CF65 (YE/VT) For An Open
      G03200173Courtesy of FORD MOTOR CO.

    • Is the voltage greater than 10 volts?

      1. Yes  : GO to B2.
      2. No  : REPAIR circuit 7-CF65 (YE/VT). CLEAR the DTC. REPEAT the self-test.

  2. B2 - CHECK CIRCUIT 8-CF65 (WH/VT)

    • Measure the voltage between ABS module C135-40, circuit 8-CF65 (WH/VT), harness side, and ground, while applying and releasing the brake pedal.

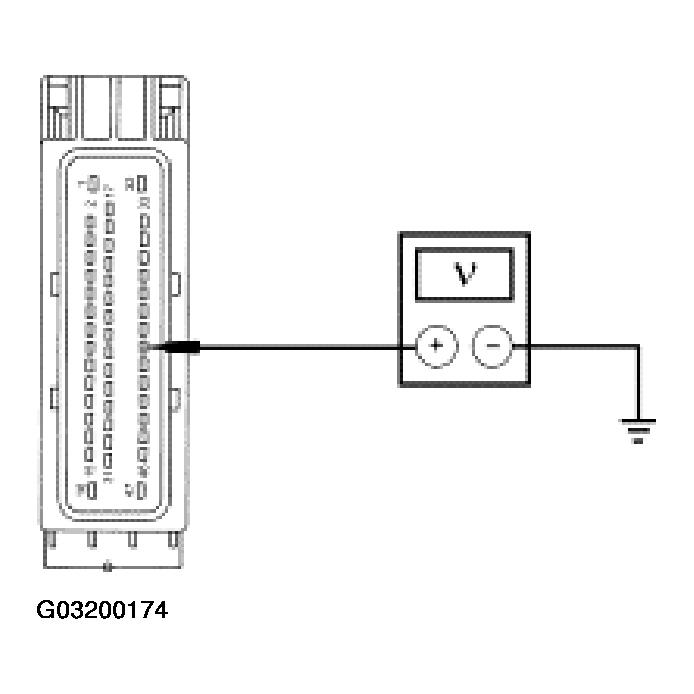

      Fig 2: Checking Circuit 8-CF65 (WH/VT)
      G03200174Courtesy of FORD MOTOR CO.

    • Is the voltage greater than 10 volts with the brake pedal applied, and zero volts with the brake pedal released?

      1. Yes  : INSTALL a new pedal travel switch (PTS) switch. CLEAR the DTC. REPEAT the self-test.
      2. No  : GO to B3.

  3. B3 - CHECK CIRCUIT 8-CF65 (WH/VT) FOR A SHORT TO GROUND

    • Measure the resistance between ABS module C135-40, circuit 8-CF65 (WH/VT), harness side, and ground.

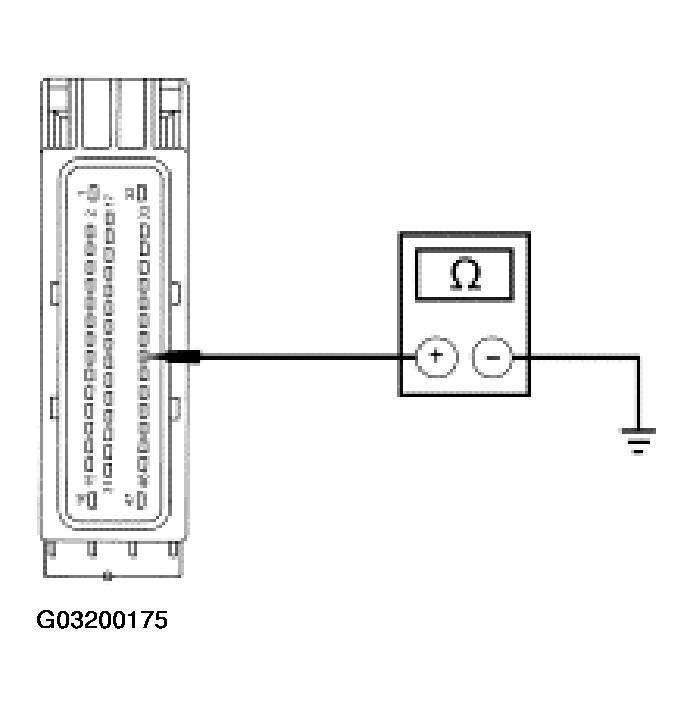

      Fig 3: Checking Circuit 8-CF65 (WH/VT) For Short To Ground
      G03200175Courtesy of FORD MOTOR CO.

    • Is the resistance less than 10,000 ohms?

      1. Yes  : GO to B4.
      2. No  : REPAIR circuit 8-CF65 (WH/VT). CLEAR the DTC. REPEAT the self-test.

  4. B4 - CHECK CIRCUIT 9-CF65 (BN/WH) FOR A SHORT TO POWER

    • Measure the voltage between ABS module C135-24, circuit 9-CF65 (BN/WH), harness side and ground.

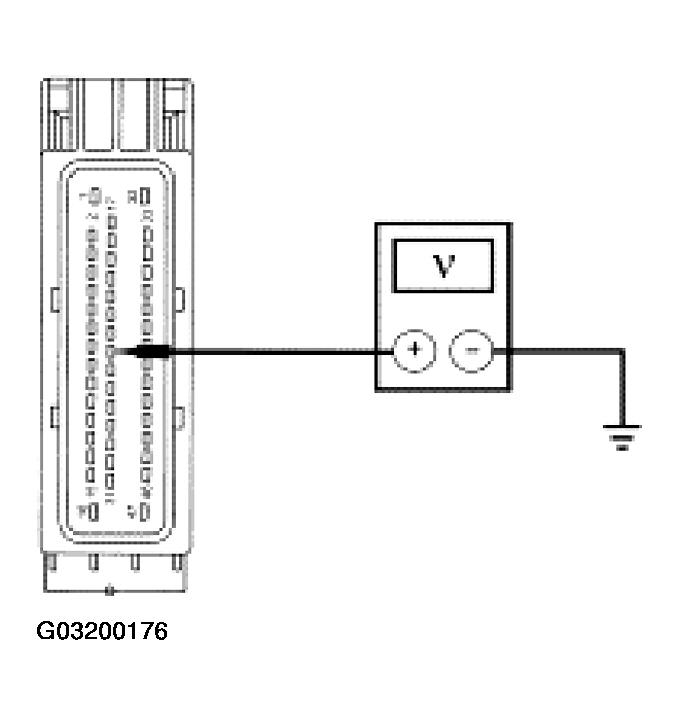

      Fig 4: Checking Circuit 9-CF65 (BN/WH) For Short To Power
      G03200176Courtesy of FORD MOTOR CO.

    • Is voltage present?

      1. Yes  : REPAIR circuit 9-CF65 (BN/WH). CLEAR the DTC. REPEAT the self-test.
      2. No  : INSTALL a new pedal travel switch (PTS) switch. CLEAR the DTC. REPEAT the self-test.
