Active Brake Booster C149
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

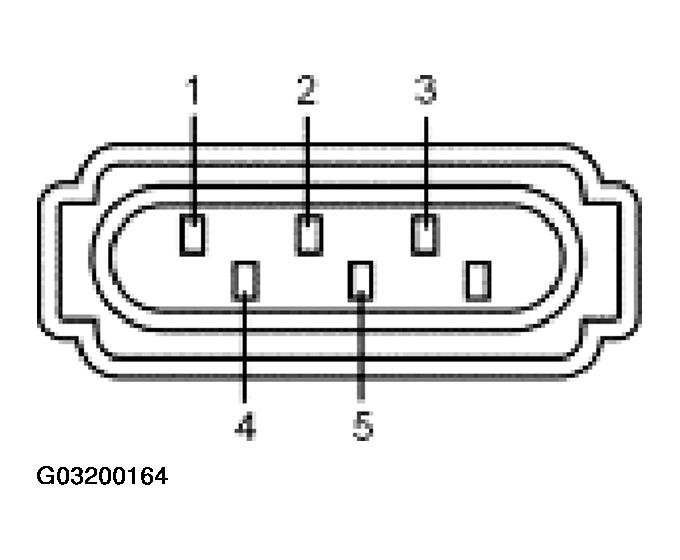

C149 Connector Terminals
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 8-CF51 (WH/GN) Brake pedal force switch normally open (NO) | Open circuit without brake pedal applied. |
| 2 | 10-CF51 (GY/OG) Brake pedal force switch normally closed (NC) | Closed circuit without brake pedal applied. |
| 3 | 9-CF68 (BN/RD) Active brake booster power | Five volts with ignition ON. |
| 4 | 8-CF68 (WH/RD) Active brake booster power | B+ with ignition ON. |
| 5 | 9-CF51 (BN/GN) Brake pedal force switch signal | Zero to five volts varies with brake pedal application. |
