Removal and Installation

1. Remove the parts in the order indicated in the following illustration and table.

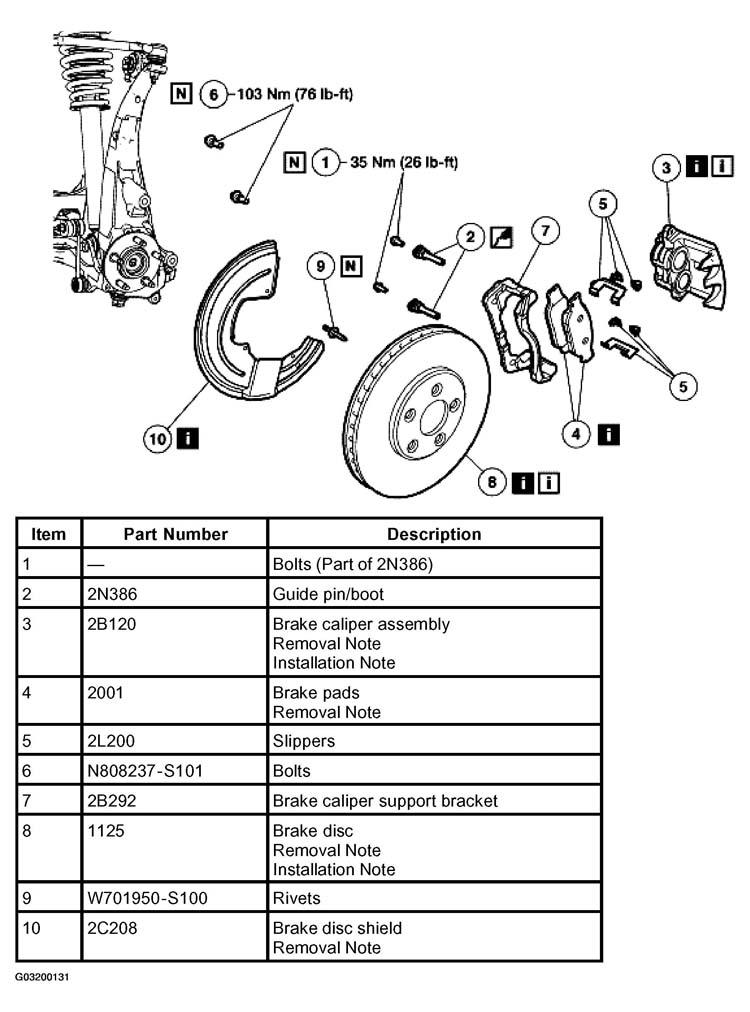

   Fig 1: Removing Front Disc Brake Components

   Courtesy of FORD MOTOR CO.
2. To install, reverse the removal procedure.

Item 3: Brake Caliper Assembly Removal Note

1. Remove the caliper flow bolt and the 2 copper washers. Discard the copper washers.
   Fig 2: Removing Bolt And Copper Washers

   Courtesy of FORD MOTOR CO.

Item 4: Brake Pads Removal Note

1. Compress the disc brake pistons.
   • Use a wood block or used brake pad to protect pistons and boots.

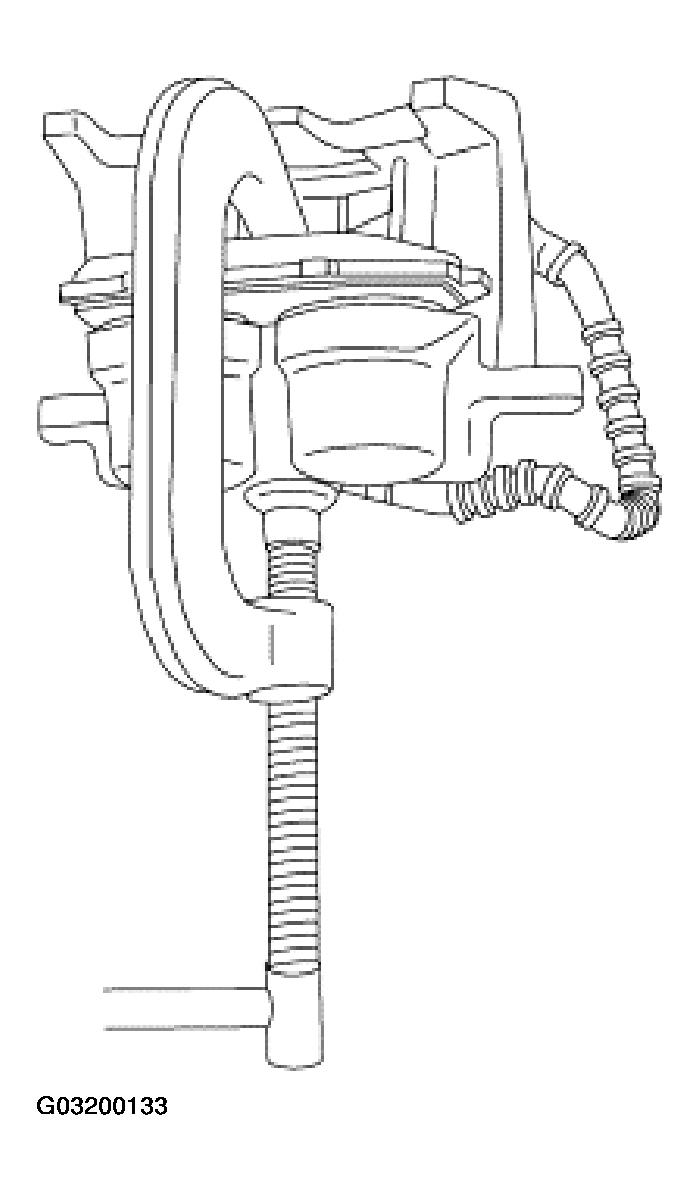

   Fig 3: Compressing Disc Brake Pistons

   Courtesy of FORD MOTOR CO.

Item 8: Brake Disc Removal Note

1. If the brake disc will be reused, match-mark the hub and brake disc.
CAUTION: If it is necessary to machine the brake disc, only use a hub-mount brake lathe.
2. Measure the brake disc and resurface as necessary. Install a new brake disc if beyond specification.

Item 10: Brake Disc Shield Removal Note

CAUTION: Use a 5.5 mm (0.22 in) drill. Do not exceed past a 6.0 mm (0.24 in) drill.

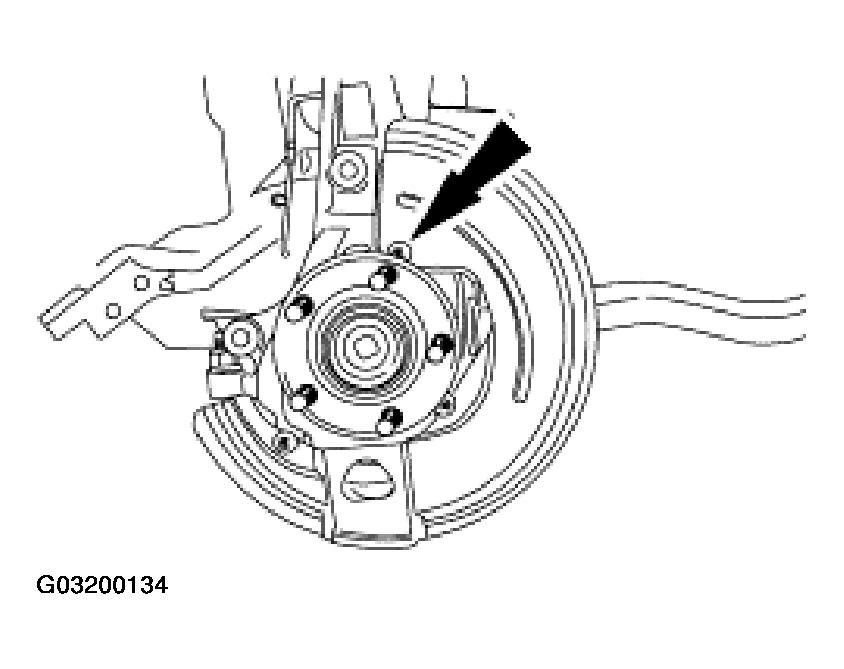

Fig 4: Identifying Drill Out Rivets
Courtesy of FORD MOTOR CO.
1. Drill out the rivets.

Item 8: Brake Disc Installation Note

1. Clean any rust or foreign material from the brake disc and wheel hub.
   • Use a suitable brake parts cleaner to clean the brake disc and hub surfaces.
   • Apply a suitable anti-seize lubricant to the hub flange.

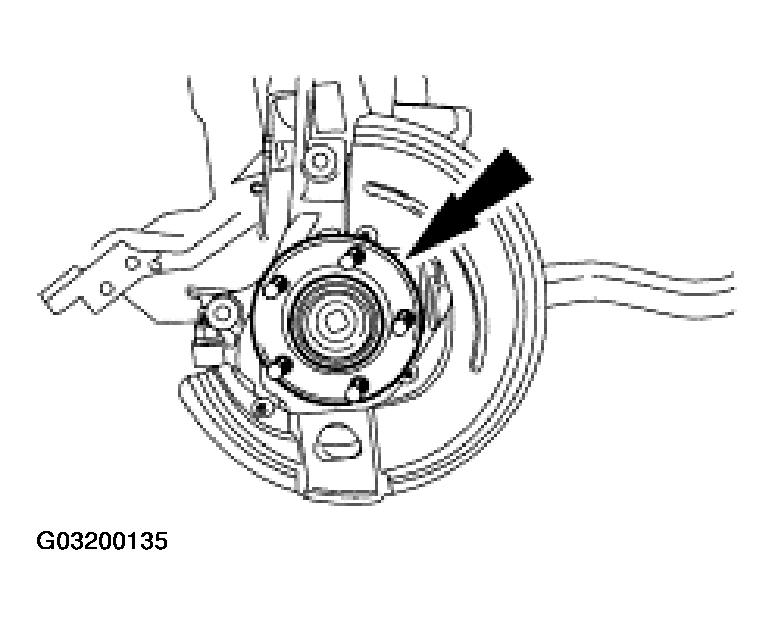

   Fig 5: Applying Suitable Anti-Seize Lubricant To Hub Flange

   Courtesy of FORD MOTOR CO.

Item 3: Brake Caliper Installation Note

1. Install new copper washers.
