Disassembly and Assembly

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the disc brake caliper. For additional information, refer to FRONT DISC BRAKE .
Secure the disc brake caliper in a vise.

NOTE: Do not hone the piston bores. If the bores are excessively scored or corroded, install a new brake disc caliper.

Fig 1: Removing Brake Caliper Front

Courtesy of FORD MOTOR CO.

Disassemble the parts in the order indicated in the following illustration and table.
To assemble, reverse the disassembly procedure.

Item 4: Piston Disassembly Note

CAUTION: Apply moderate air pressure in short bursts to prevent an uncontrolled release of the piston.

Place a piece of wood in the caliper. Remove the piston by applying moderate air pressure through the bleeder screw port.

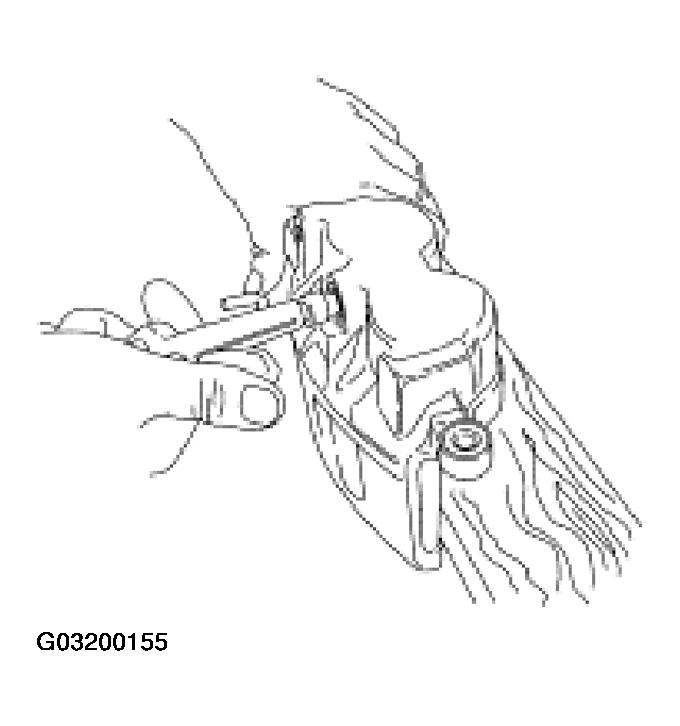

Fig 2: Removing Piston By Applying Moderate Air Pressure
Courtesy of FORD MOTOR CO.
