Electronic Parking Brake (EPB) Module C4205a

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

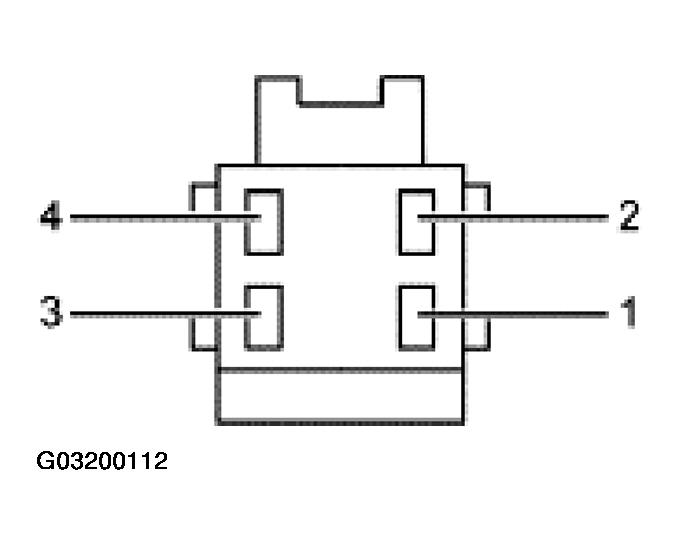

Fig 1: Identifying Electronic Parking Brake Module C4205A Connector Pins
G03200112Courtesy of FORD MOTOR CO.
C4205A CONNECTOR PINS REFERENCE

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
1 30-CG16 (RD/BU) power to EPB module Greater than 10 volts at all times supplied by FBJB fuse 15 (40A), hot at all times.
2 33-CG19 (YE/VT) EPB actuator motor (-) EPB switch at rest: half of B+ voltage/EPB switch applying: 0 voltage/EPB switch releasing: B+ voltage.
3 32-CG19 (WH/VT) EPB actuator motor (+) EPB switch at rest: half of B+ voltage/EPB switch applying: B+ voltage/EPB switch releasing: 0 voltage.
4 31-CG16 (BK/BU) EPB module ground 0 voltage and less than 5 ohms resistance to ground.
