Brake Fluid Level Switch C1395

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

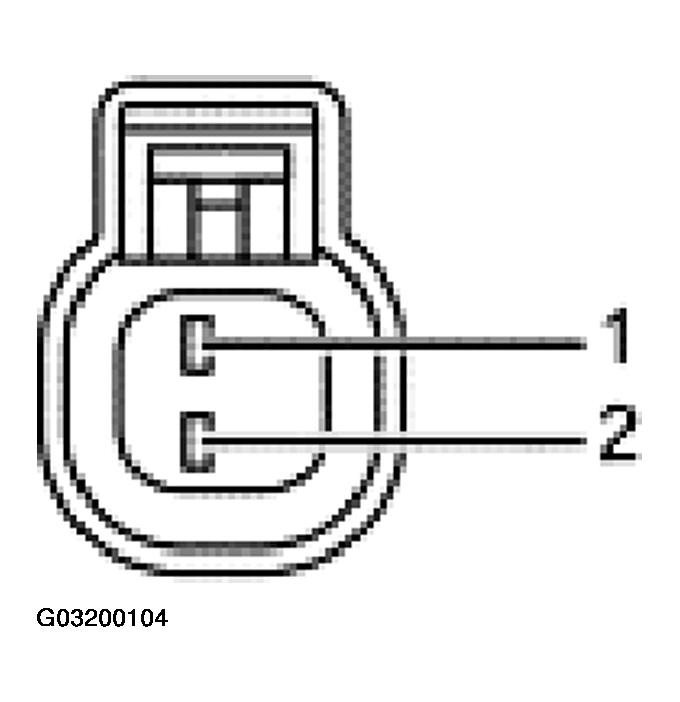

Fig 1: Identifying Brake Fluid Level Switch Connector Pins
G03200104Courtesy of FORD MOTOR CO.
C1395 CONNECTOR PINS REFERENCE

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
1 8-GC7 (WH/RD) brake fluid level switch signal return to instrument cluster Continuity between brake fluid level indicator switch and instrument cluster.
2 31-GC7 (BK/BU) ground circuit for brake indicator lamp when parking brake switch is closed Continuity between switch and ground, less than 5 ohms resistance to ground when switch is closed.
