Adjustable Pedal Switch C2089
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

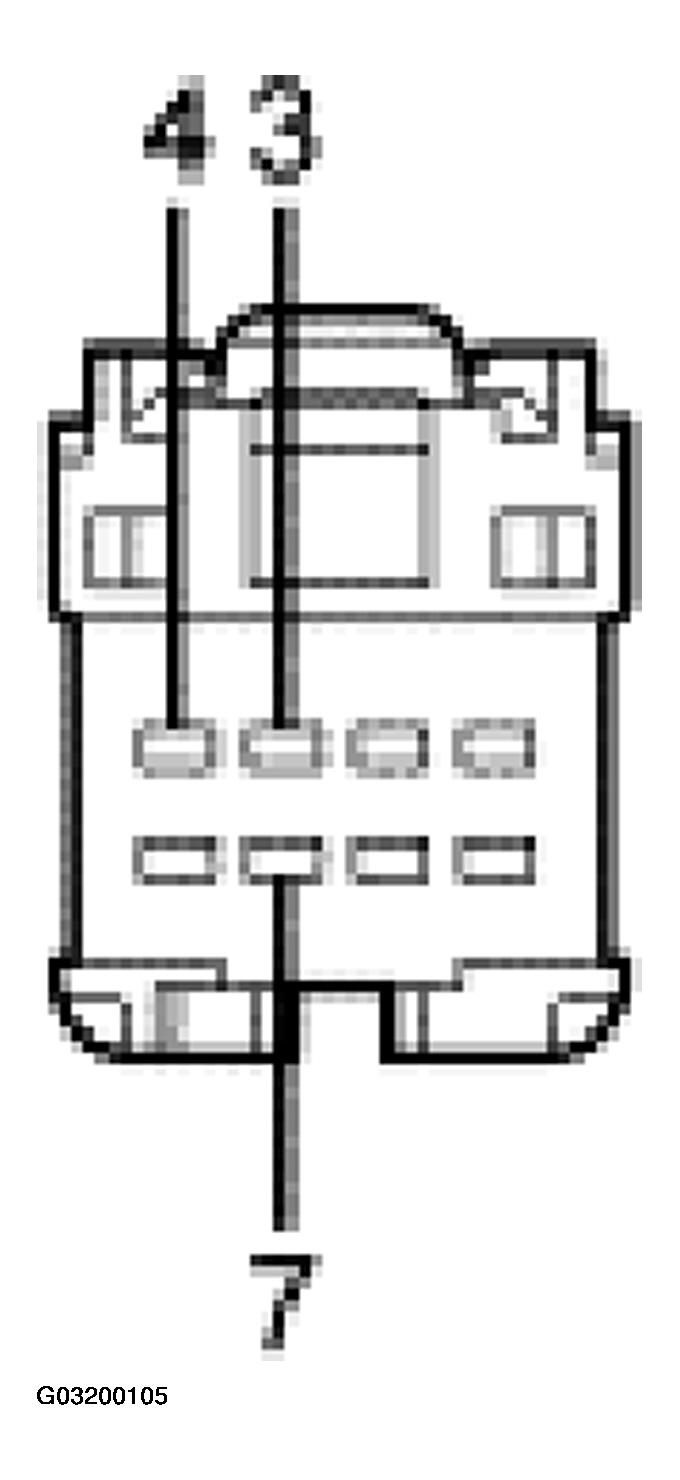

C2089 CONNECTOR PINS REFERENCE
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 3 | 32-AL 19 (WH/GN) ground input to FEM, moves pedal away from driver | 0 voltage and less than 5 ohms to chassis ground, continuity between switch and FEM module. |
| 4 | 31-AL 19a (BK/GN) switch common ground | 0 voltage and less than 5 ohms resistance to ground. |
| 7 | 34-AL 19 (BU/BK) ground input to FEM, moves pedal toward driver | 0 voltage and less than 5 ohms resistance to chassis ground, continuity between switch and FEM module. |
