Removal and Installation

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position on a hoist.
  2. Remove the rear halfshafts. For additional information, refer to REAR AXLE HALFSHAFTS, BEARINGS AND SEALS .
  3. Disconnect the driveshaft from the rear axle flange. Support the driveshaft at the center and rear.
  4. Position a suitable hydraulic jack to the axle housing. Securely strap the jack to the housing.
  5. Remove the components in the order indicated in the following illustration and table.
  6. To install, reverse the removal procedure.

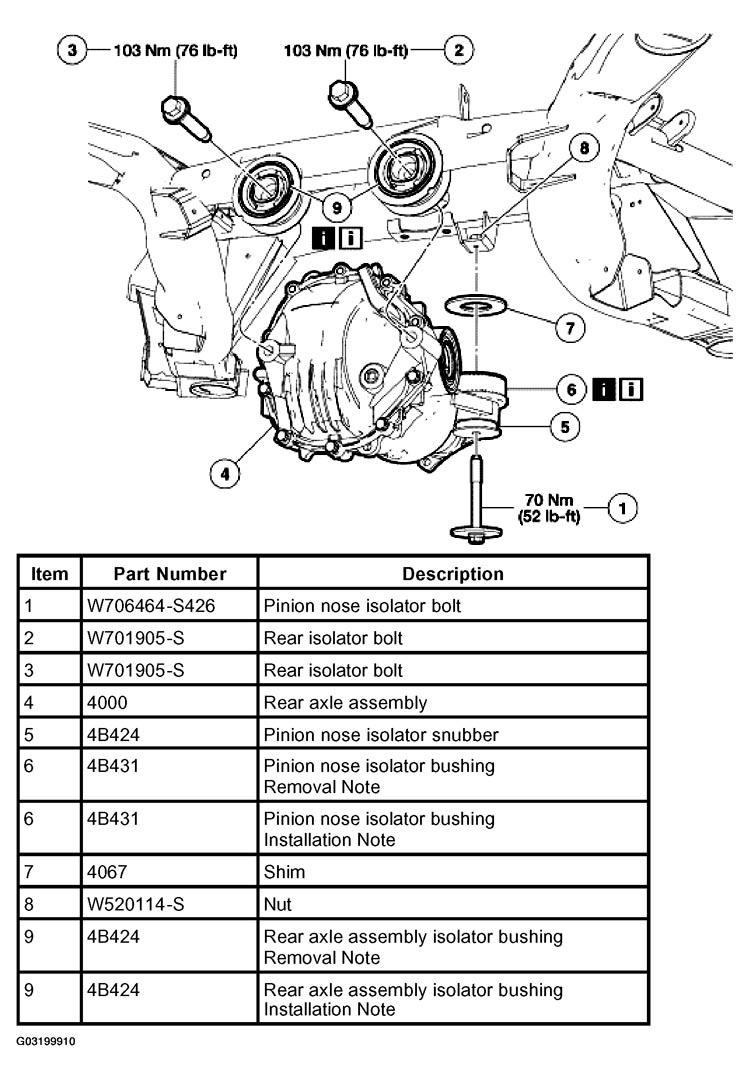

    Fig 1: Removing/Installing Rear Axle Assembly
    G03199910Courtesy of FORD MOTOR CO.
  7. Fill the axle with the specified quantity of the specified lubricant.
