Item 6: Pinion Nose Isolator Bushing Installation Note

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Insert the rear axle differential pinion nose isolator bushing and make sure the notches are aligned 45° from a forward and aft location.

Fig 1: Inserting Rear Axle Differential Pinion Nose Isolator Bushing
Courtesy of FORD MOTOR CO.
Using the special tool, install the rear axle differential pinion nose isolator bushing.

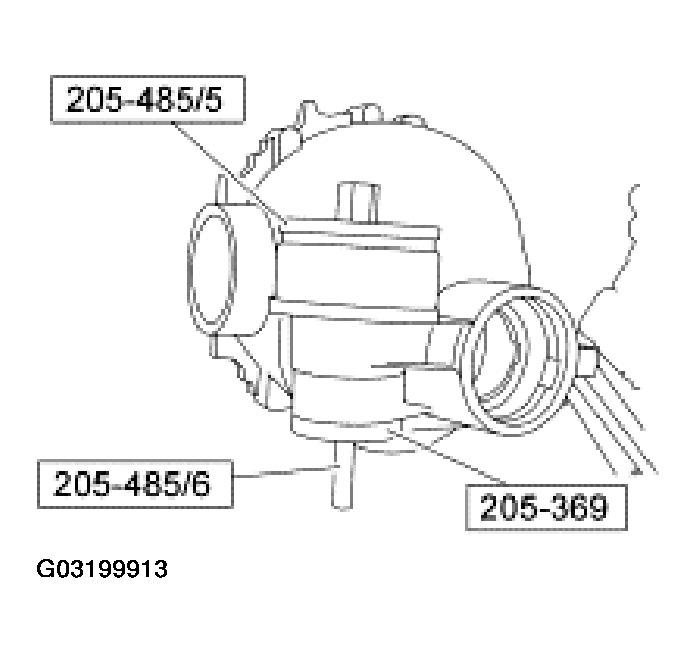

Fig 2: Installing Rear Axle Differential Pinion Nose Isolator Bushing
Courtesy of FORD MOTOR CO.
