Checking Differential Ring Gear Backlash

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the differential assembly.
  2. Remove the differential housing cover.
  3. Secure the differential assembly in a fixture.
  4. Using a suitable dial indicator and the special tool, measure and record the differential ring gear backlash in 4 opposing points on the ring gear.

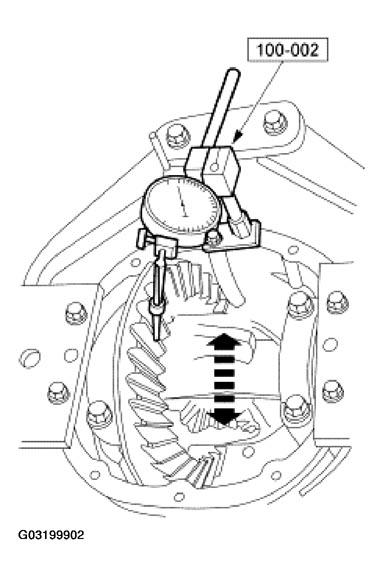

Fig 1: Checking Differential Ring Gear Backlash
G03199902Courtesy of FORD MOTOR CO.
