WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

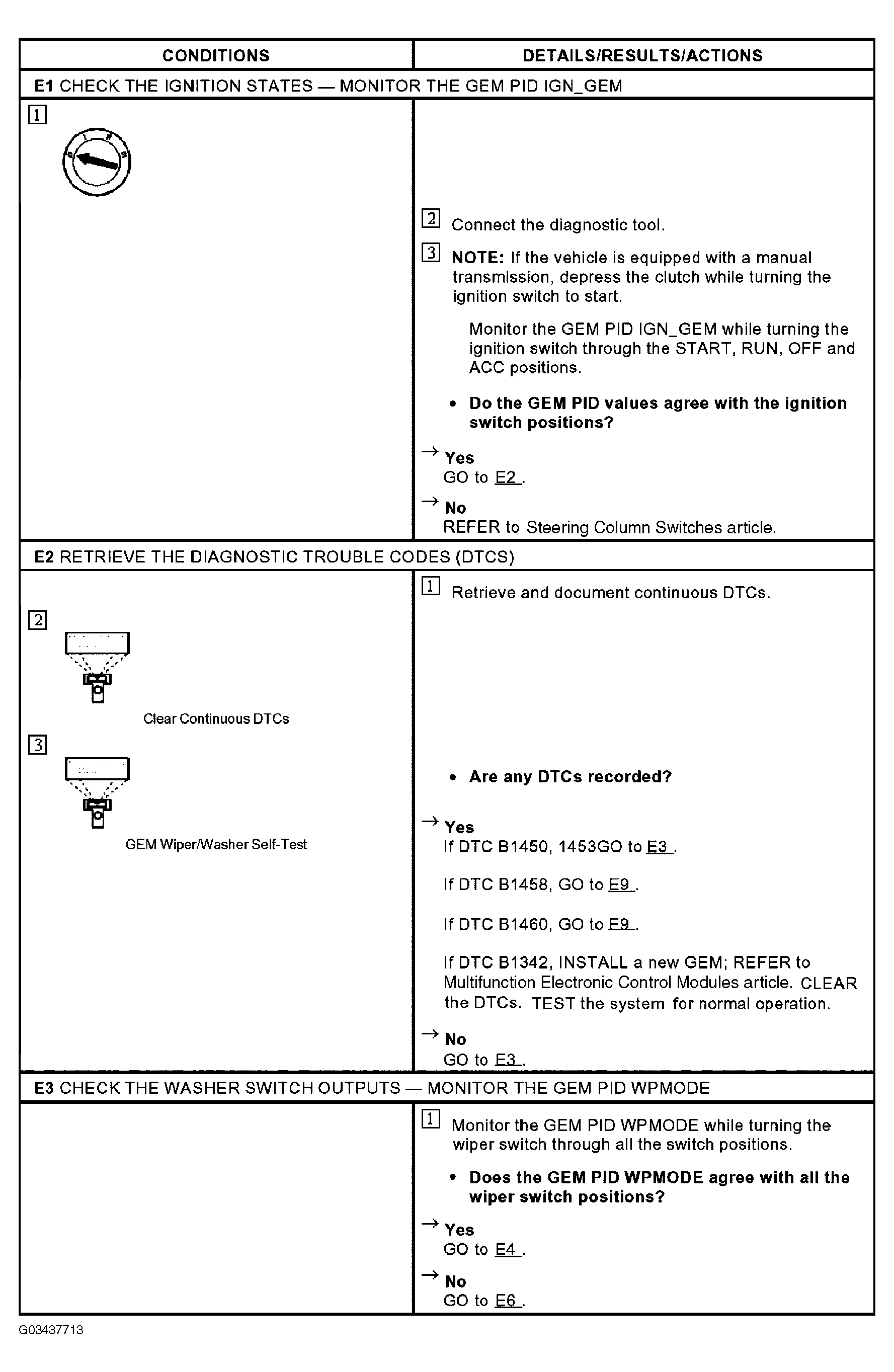

Fig 1: Pinpoint Test E: Washer Pump Is Inoperative (E1 - E3)
Courtesy of FORD MOTOR CO.

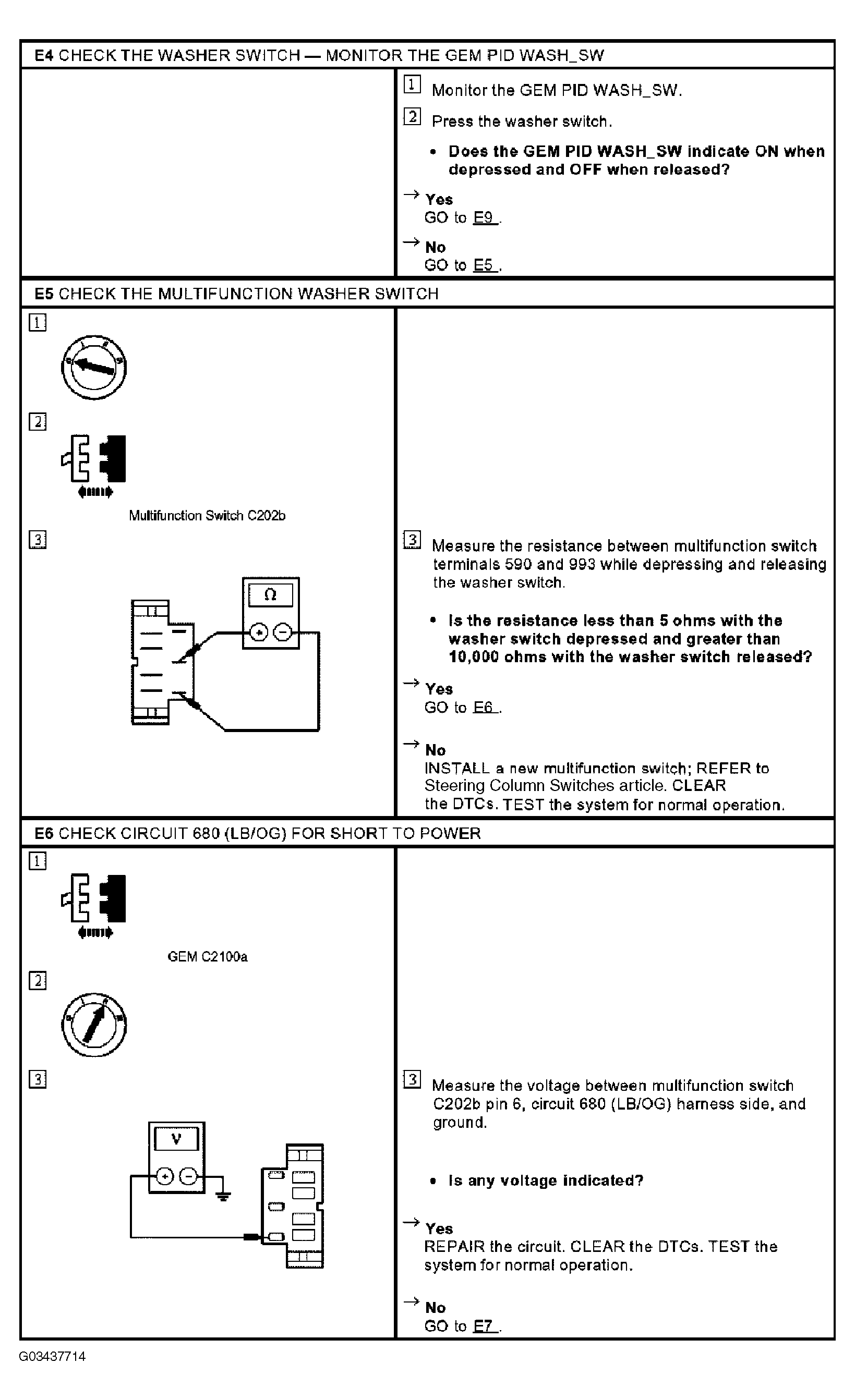

Fig 2: Pinpoint Test E: Washer Pump Is Inoperative (E4 - E6)
Courtesy of FORD MOTOR CO.

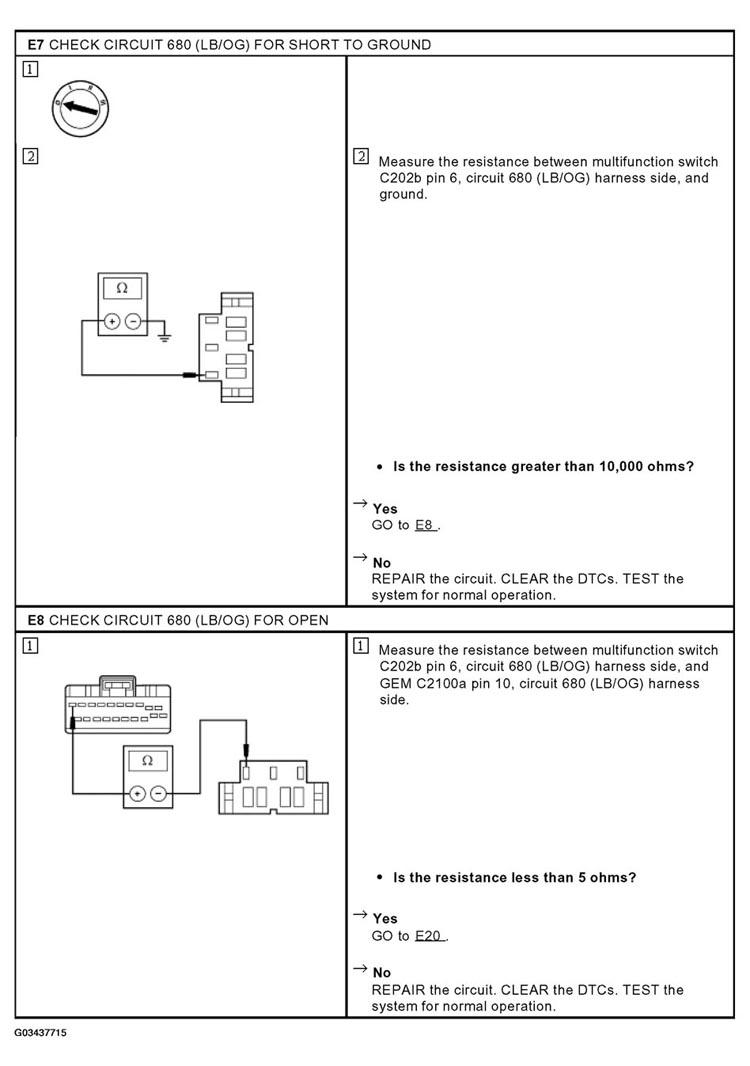

Fig 3: Pinpoint Test E: Washer Pump Is Inoperative (E7 - E8)
Courtesy of FORD MOTOR CO.

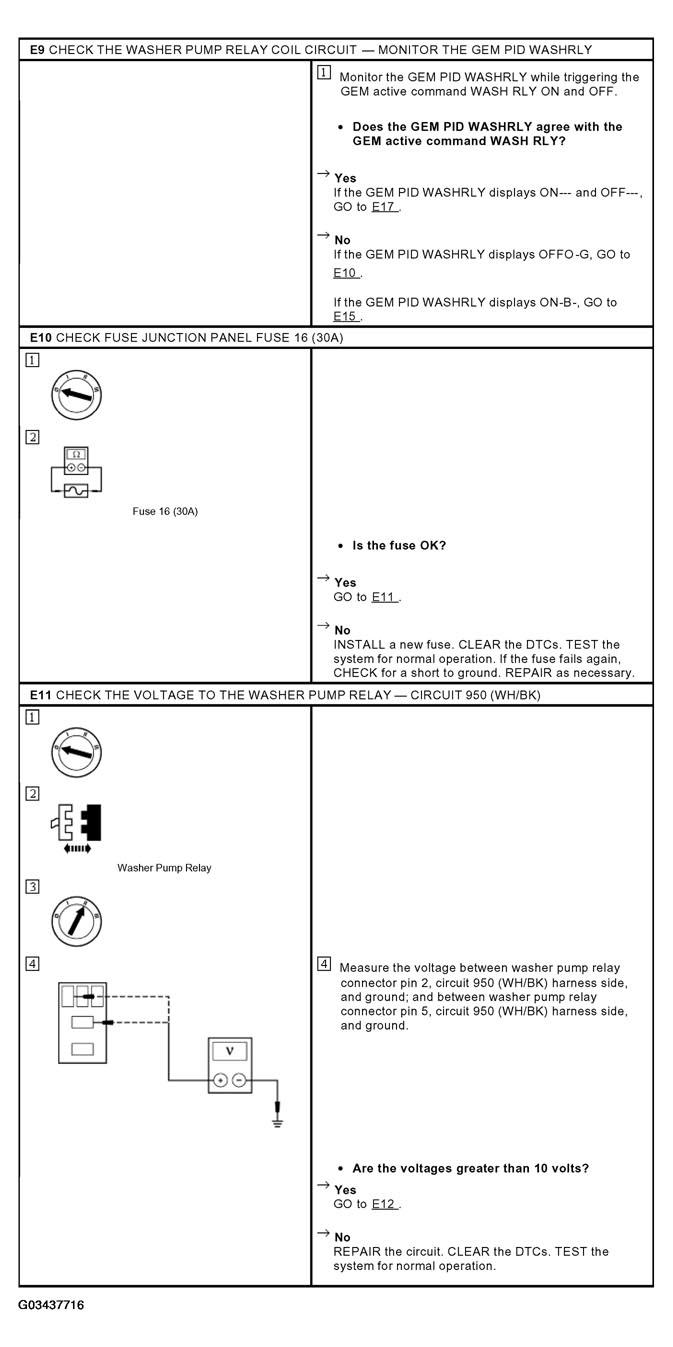

Fig 4: Pinpoint Test E: Washer Pump Is Inoperative (E9 - E11)
Courtesy of FORD MOTOR CO.

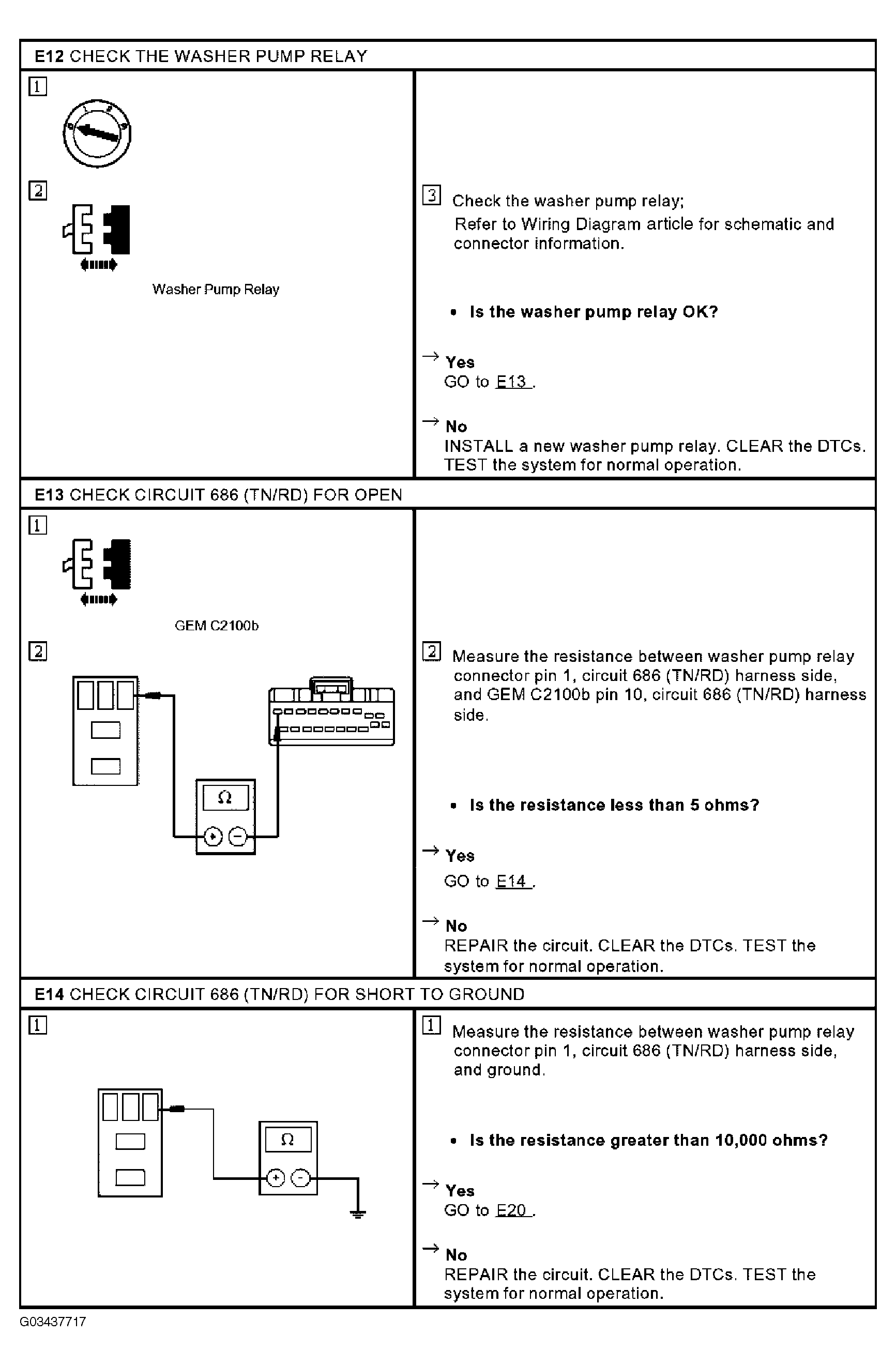

Fig 5: Pinpoint Test E: Washer Pump Is Inoperative (E12 - E14)
Courtesy of FORD MOTOR CO.

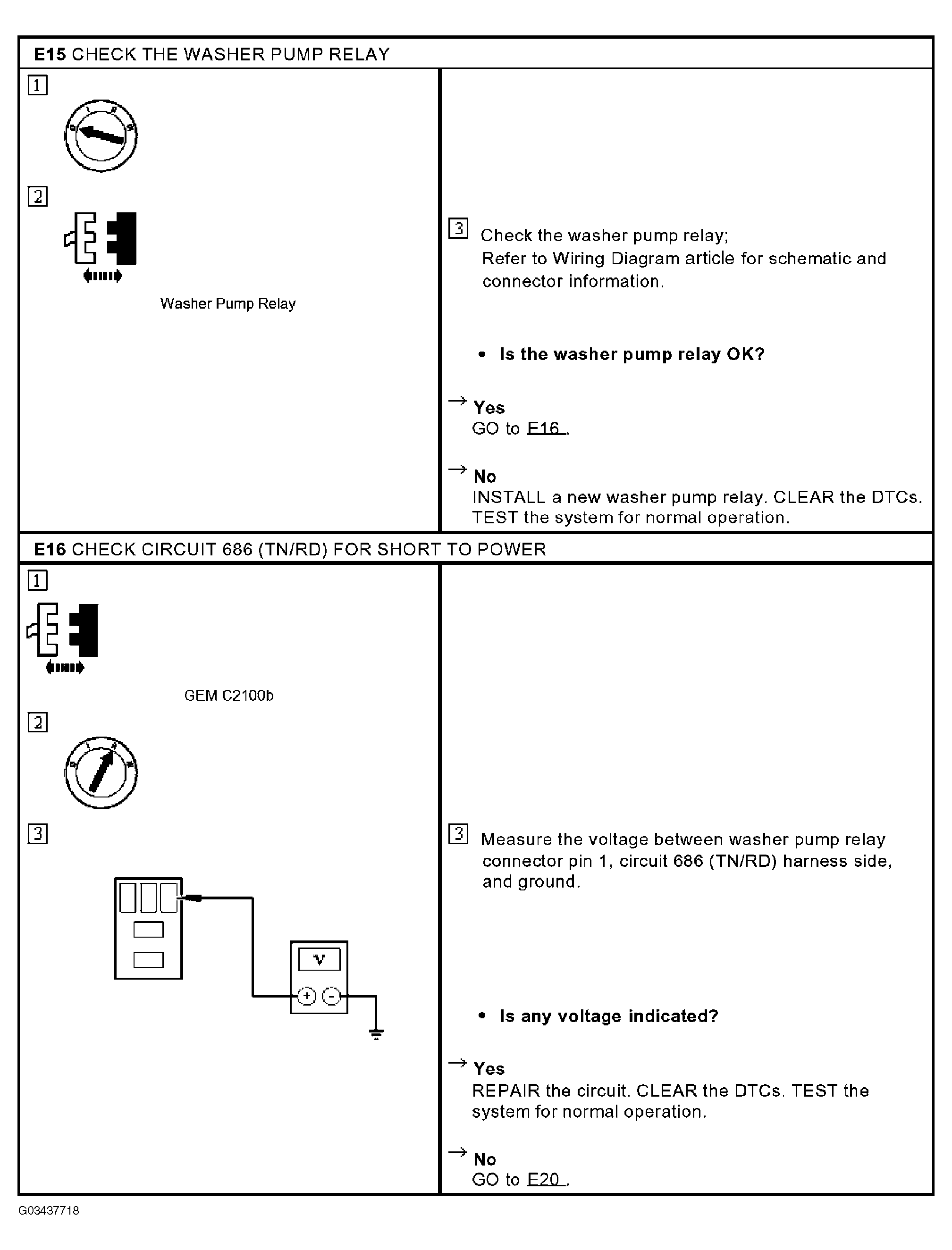

Fig 6: Pinpoint Test E: Washer Pump Is Inoperative (E15 - E16)
Courtesy of FORD MOTOR CO.

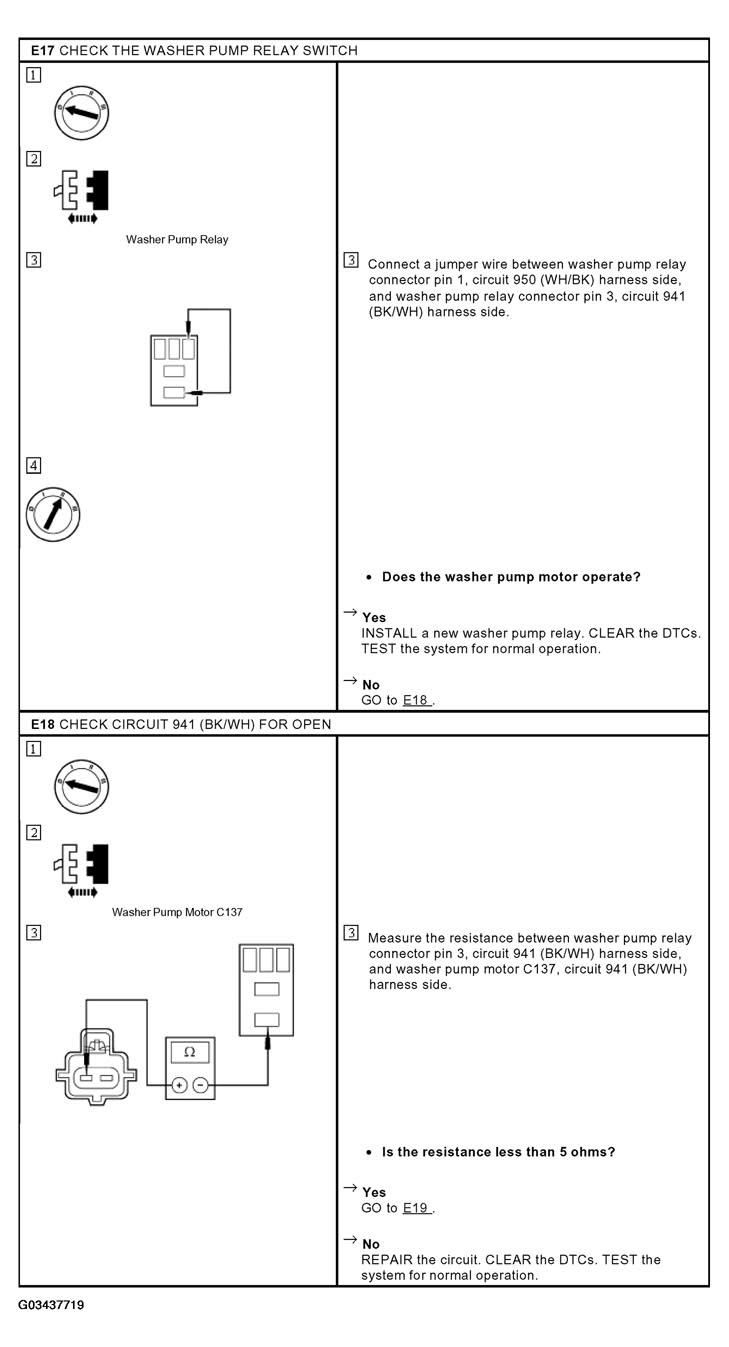

Fig 7: Pinpoint Test E: Washer Pump Is Inoperative (E17 - E18)
Courtesy of FORD MOTOR CO.

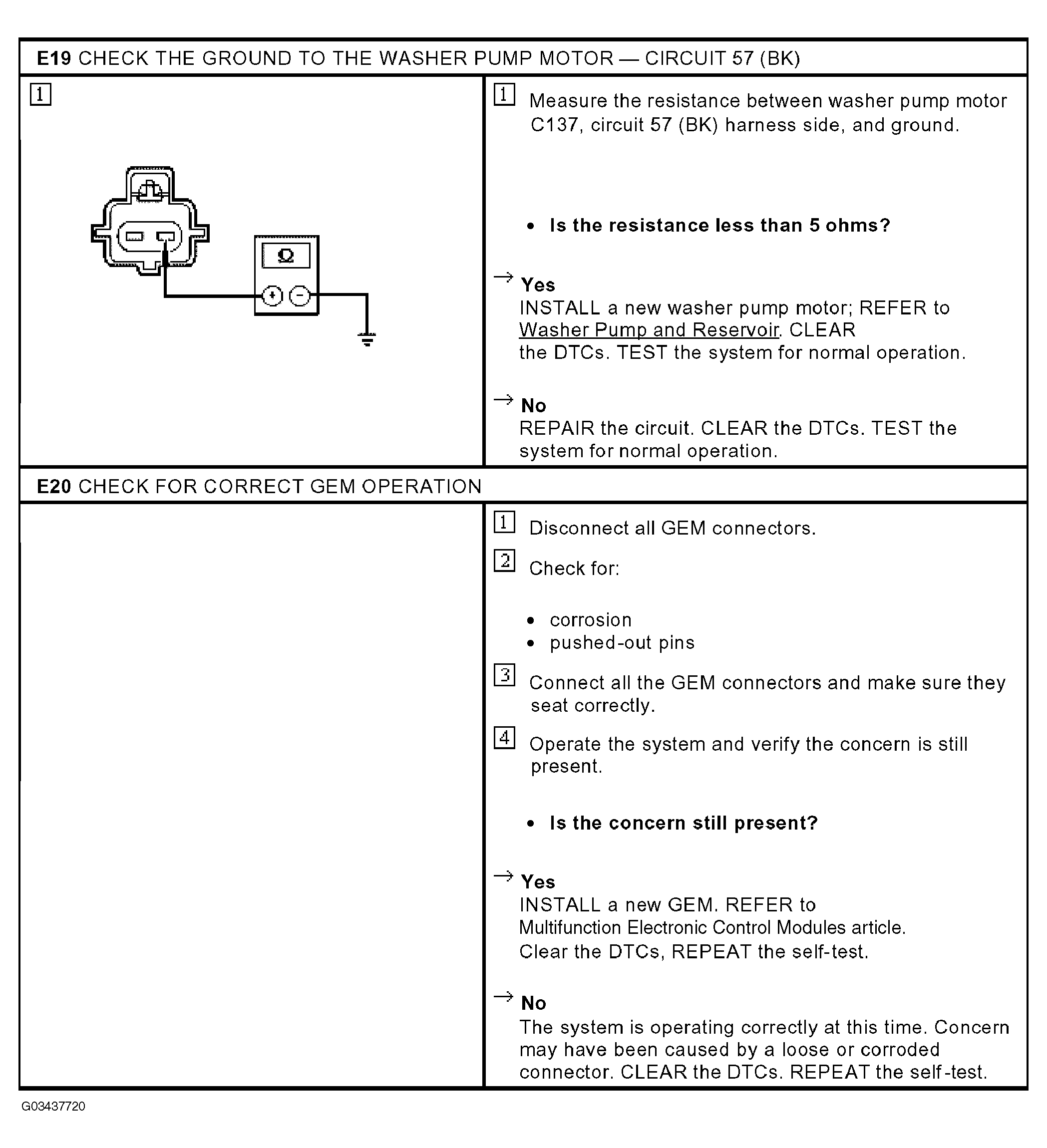

Fig 8: Pinpoint Test E: Washer Pump Is Inoperative (E19 - E20)
