Tailgate Latch Remote Control: Removal

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws and the tailgate access cover.

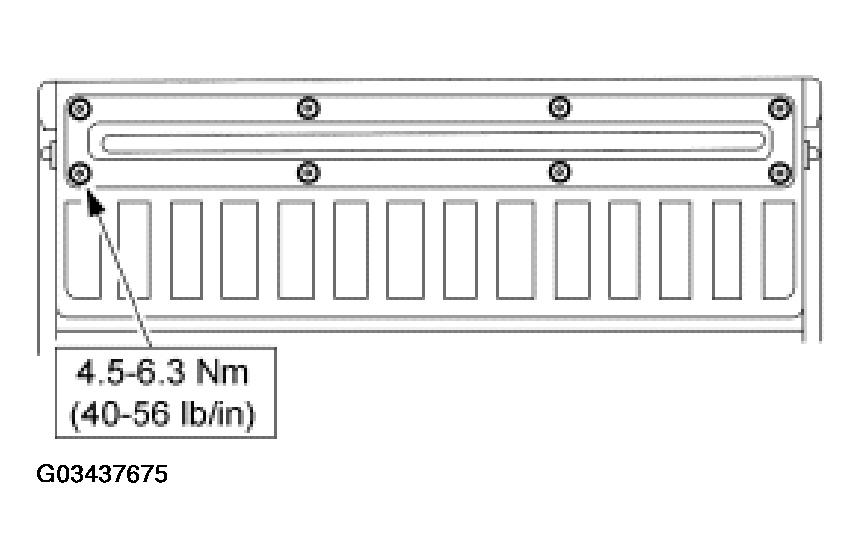

    Fig 1: Removing Screws And Tailgate Access Cover
    G03437675Courtesy of FORD MOTOR CO.
  2. Disconnect the tailgate latch release links from the tailgate latch remote control.
    1. Open the tailgate latch rod retainers.
    2. Disconnect the tailgate latch release links from the tailgate latch remote control.

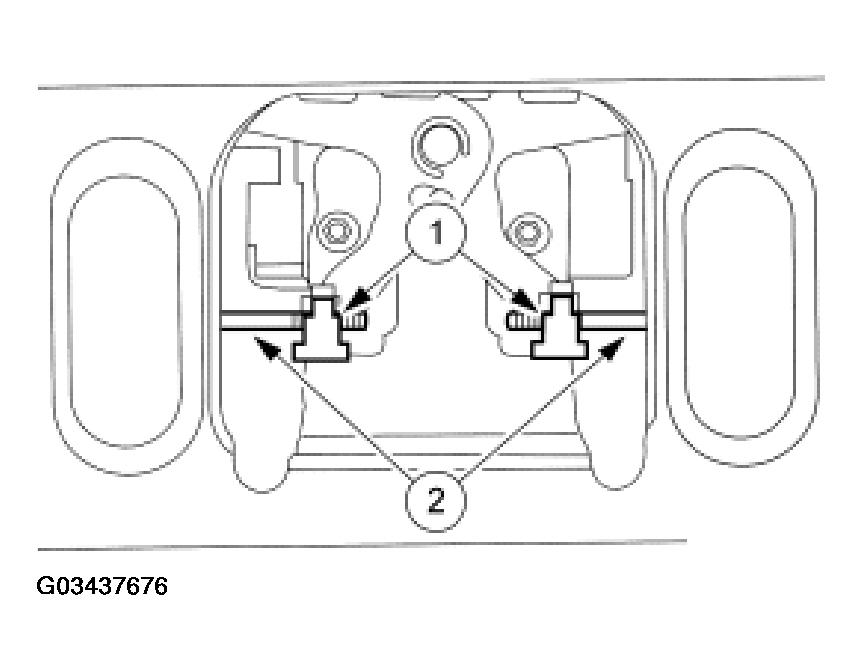

    Fig 2: Disconnecting Tailgate Latch Release Links
    G03437676Courtesy of FORD MOTOR CO.
  3. Remove the tailgate latch remote control nuts.

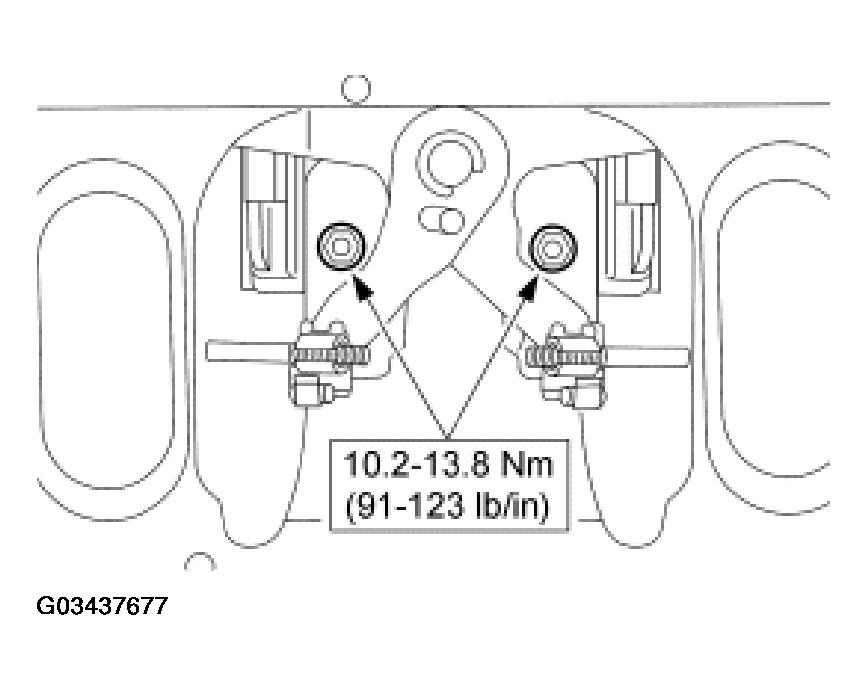

    Fig 3: Removing Tailgate Latch Remote Control Nuts
    G03437677Courtesy of FORD MOTOR CO.
  4. Remove the tailgate latch remote control.
  5. Transfer all components as necessary.
    6. NOTE: Prior to installation, remove the slack in the tailgate latch release links by pulling the tailgate latch release links to the center of the tailgate. Close the plastic clip over the thread of the tailgate latch release links.
  6. To install, reverse the removal procedure.
