WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

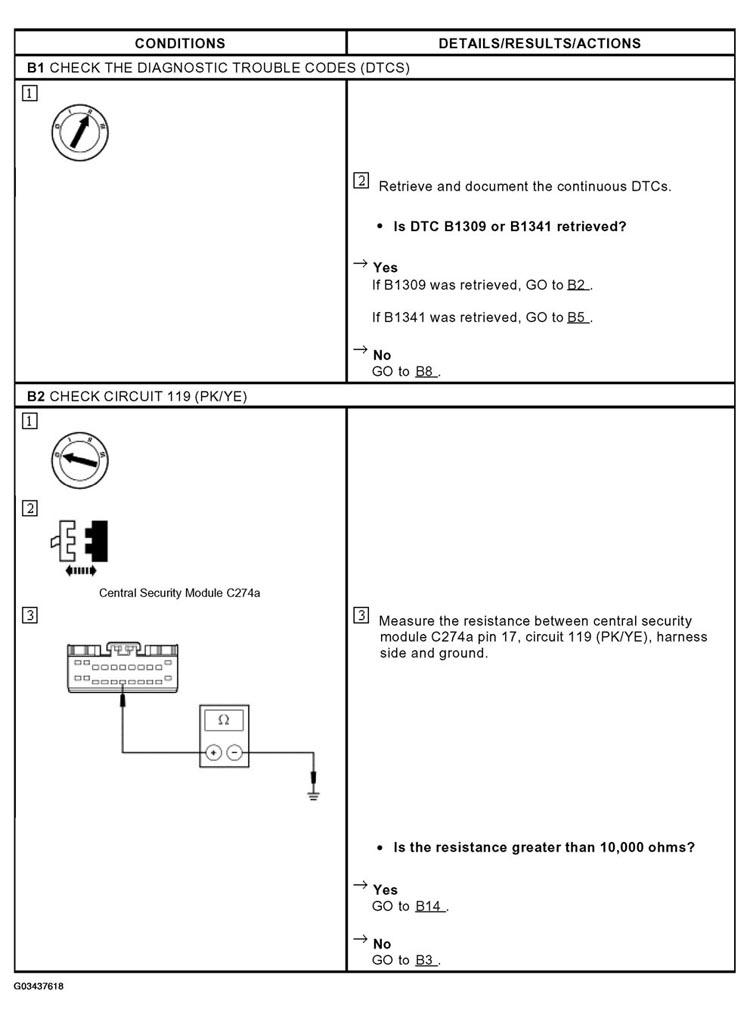

Fig 1: Pinpoint Test B: All Door Locks Are Inoperative (B1-B2)
Courtesy of FORD MOTOR CO.

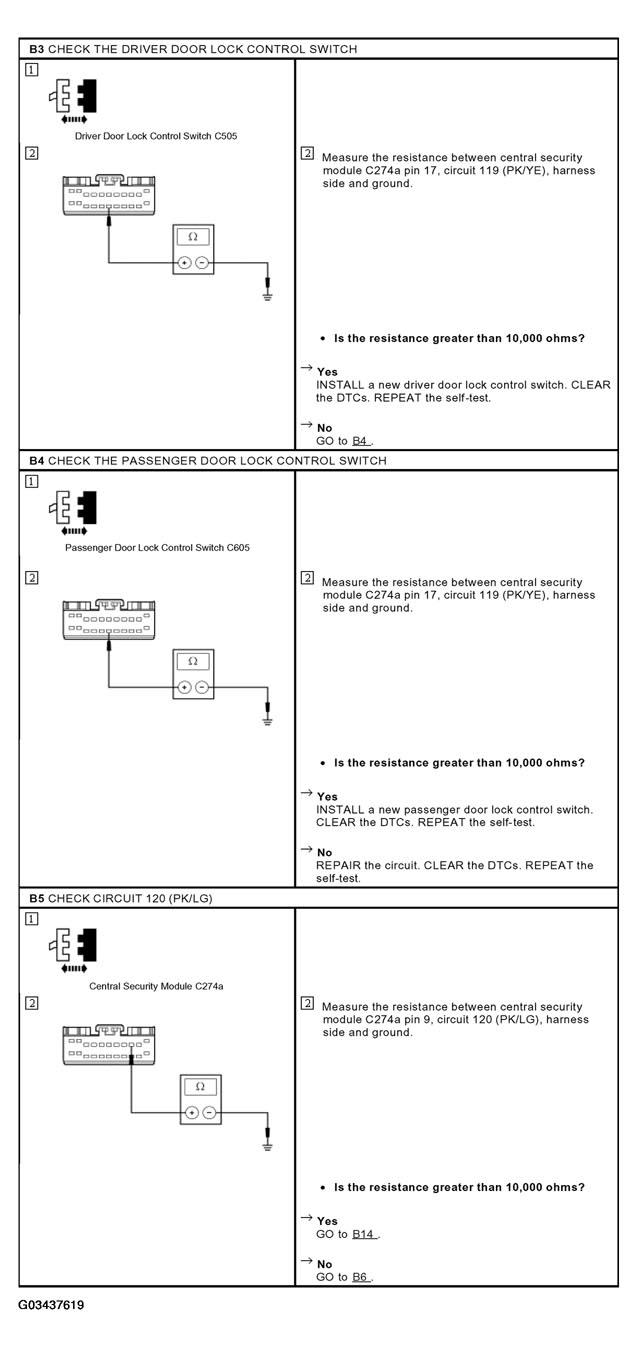

Fig 2: Pinpoint Test B: All Door Locks Are Inoperative (B3-B5)
Courtesy of FORD MOTOR CO.

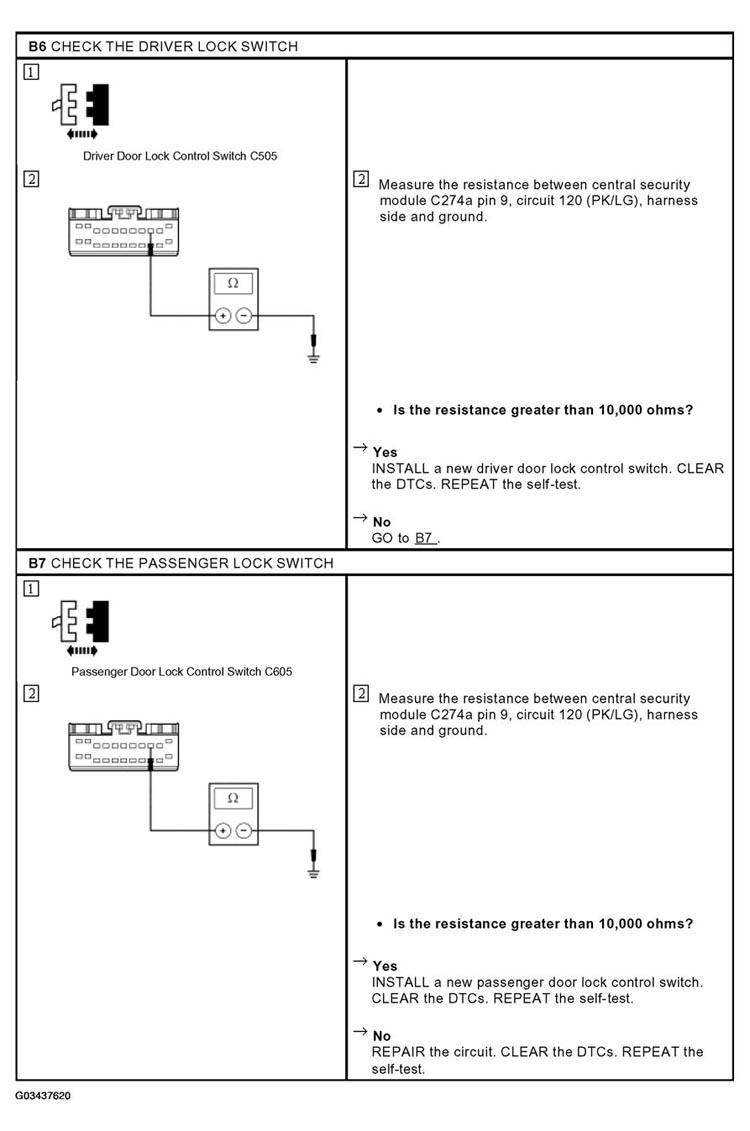

Fig 3: Pinpoint Test B: All Door Locks Are Inoperative (B6-B7)
Courtesy of FORD MOTOR CO.

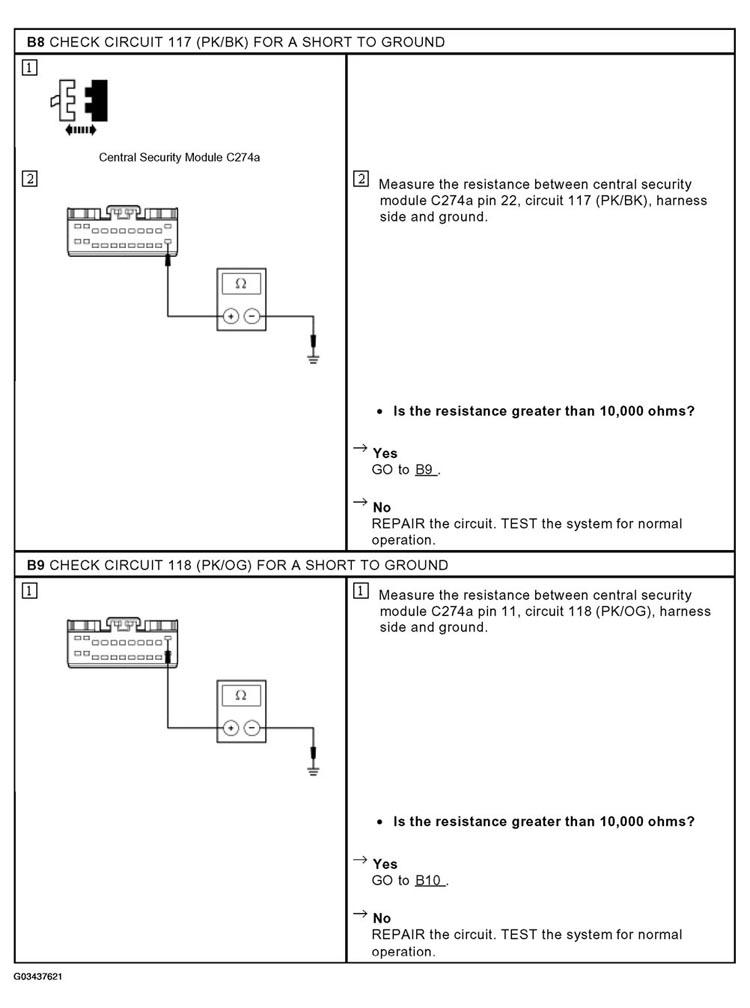

Fig 4: Pinpoint Test B: All Door Locks Are Inoperative (B8-B9)
Courtesy of FORD MOTOR CO.

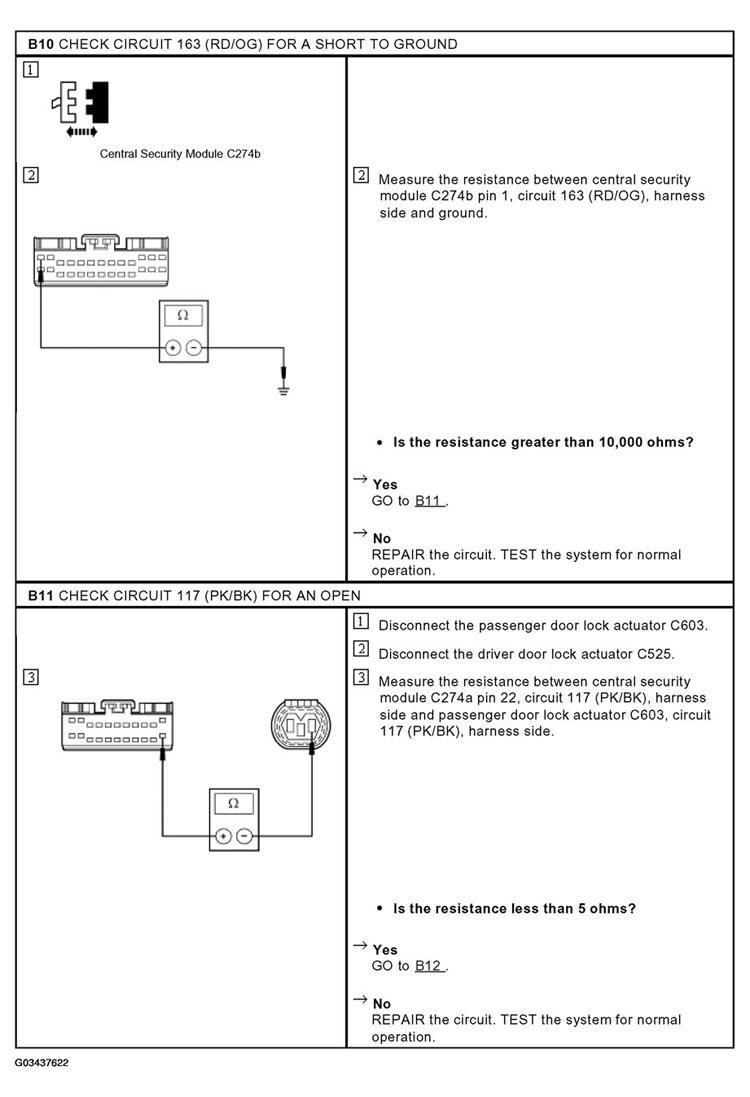

Fig 5: Pinpoint Test B: All Door Locks Are Inoperative (B10-B11)
Courtesy of FORD MOTOR CO.

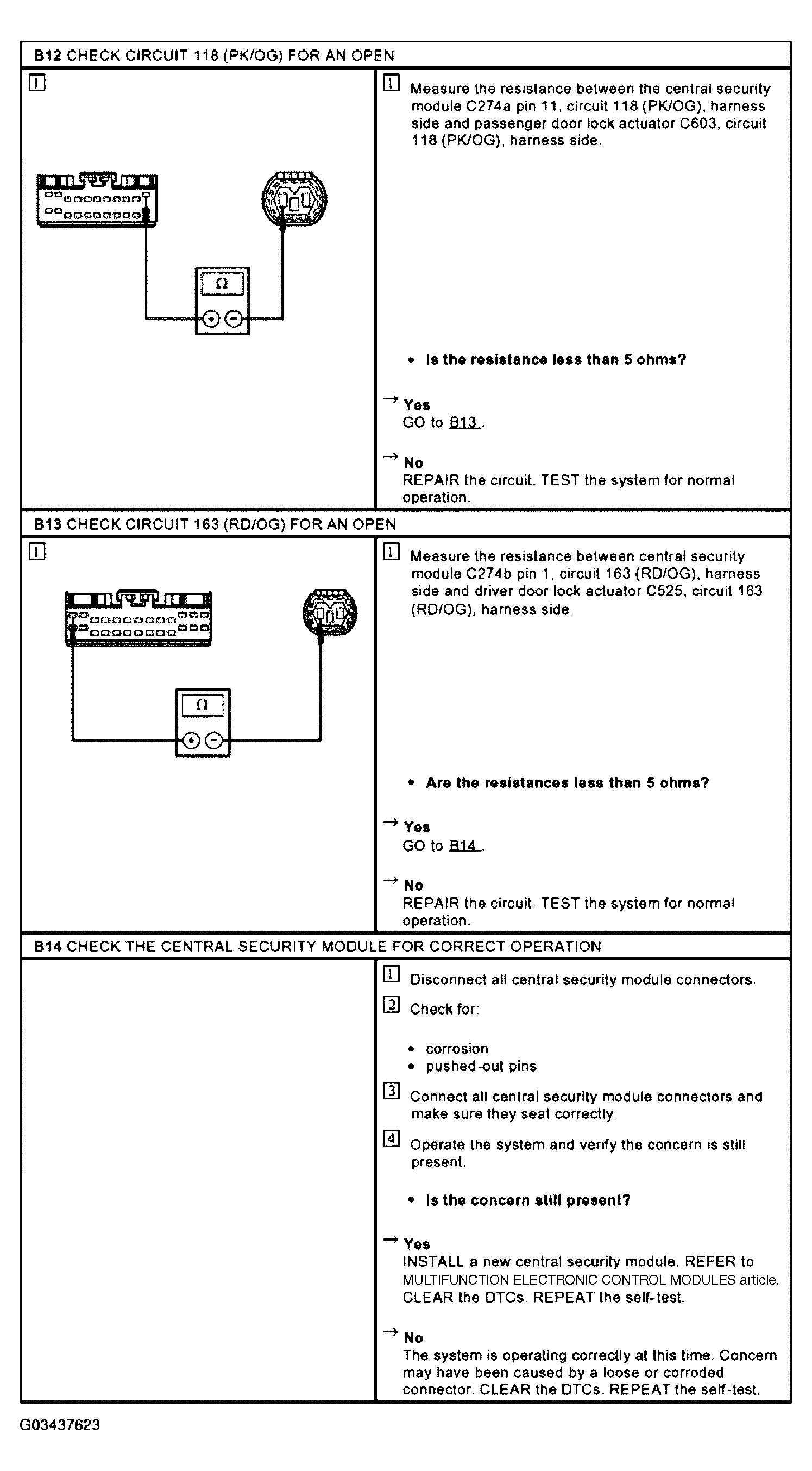

Fig 6: Pinpoint Test B: All Door Locks Are Inoperative (B12-B14)
