Windshield Glass: Removal

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: To prevent glass splinters from entering the eyes or cutting the hands, wear safety glasses and heavy gloves when cutting the glass from the vehicle.

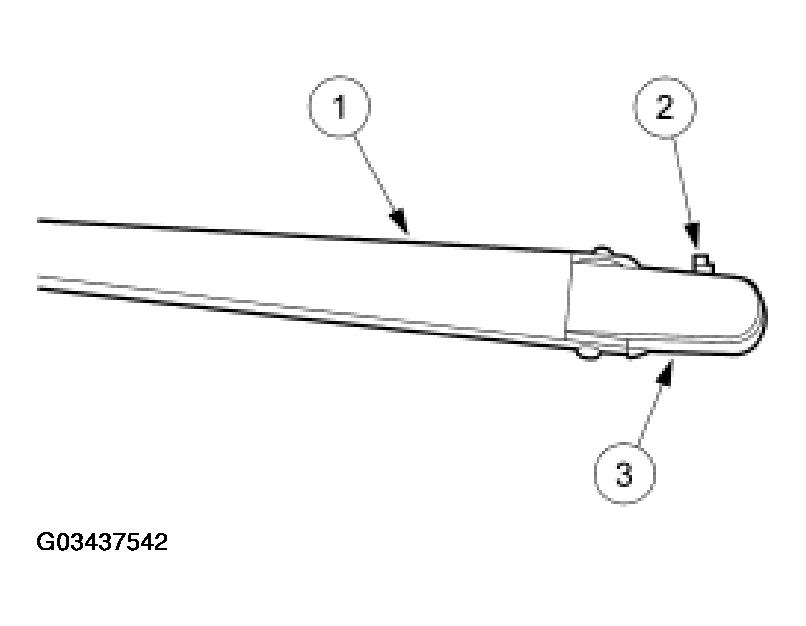

Remove the pivot arms.
1. Pull up on the pivot arm.
2. Pull the retaining tab upwards.
3. Remove the wiper arms.
Fig 1: Removing Pivot Arms
Courtesy of FORD MOTOR CO.

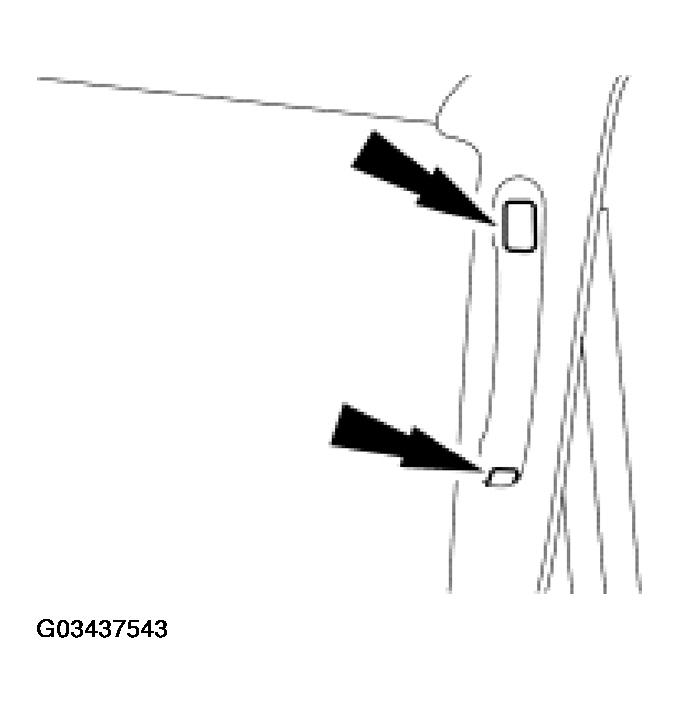

If equipped, remove the windshield garnish moulding assist handle bolt covers.

Fig 2: Removing Windshield Bolt Covers
Courtesy of FORD MOTOR CO.

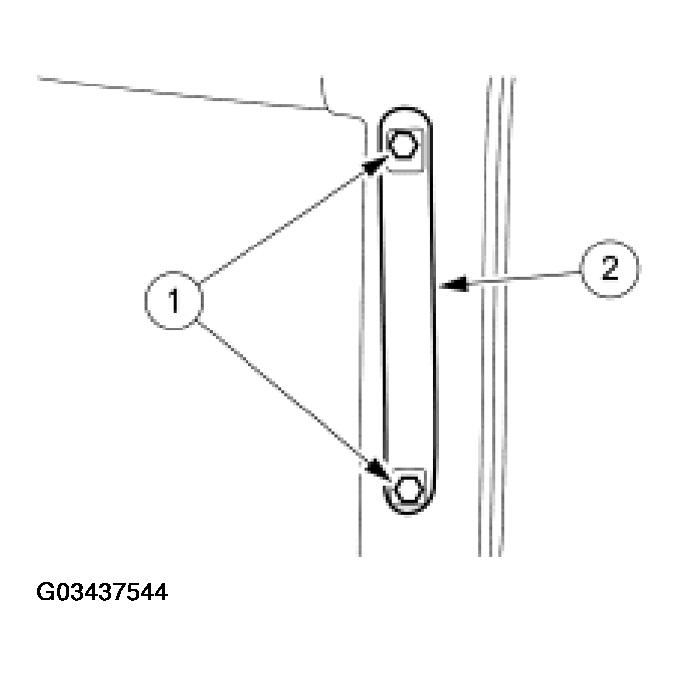

If equipped, remove the windshield garnish moulding assist handles.
1. Remove the bolts.
2. Remove the handles.
Fig 3: Removing Assist Handles
Courtesy of FORD MOTOR CO.

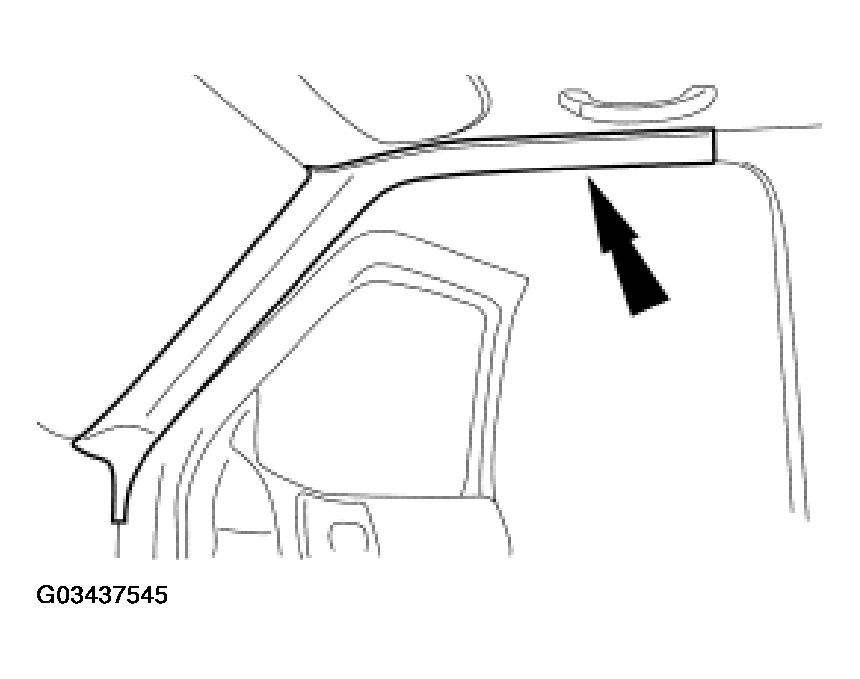

Remove the windshield side garnish mouldings.

Fig 4: Removing Windshield Side Garnish Mouldings
Courtesy of FORD MOTOR CO.

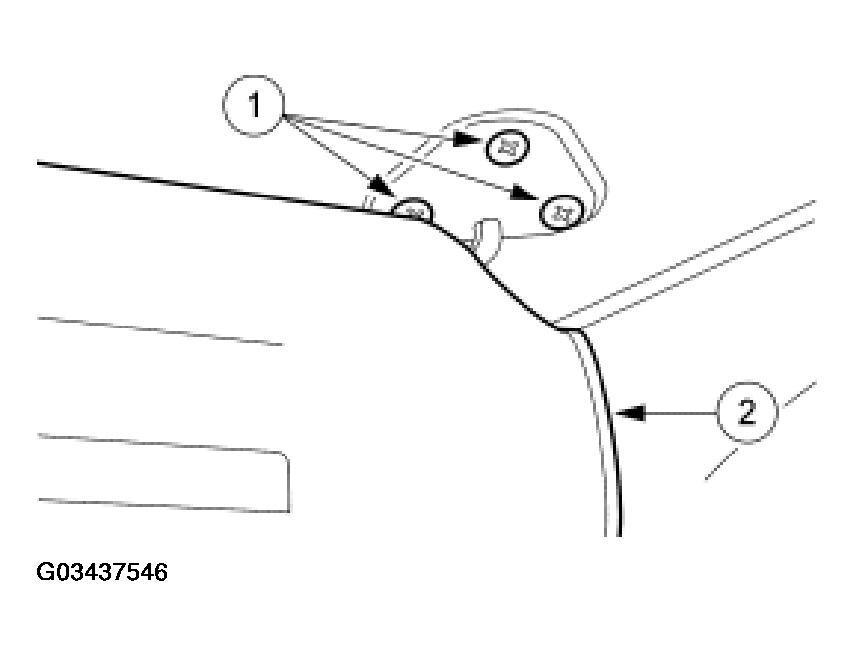

Remove the sun visors.
1. Remove the screws.
2. Remove the visors.
Fig 5: Removing Sun Visors
Courtesy of FORD MOTOR CO.

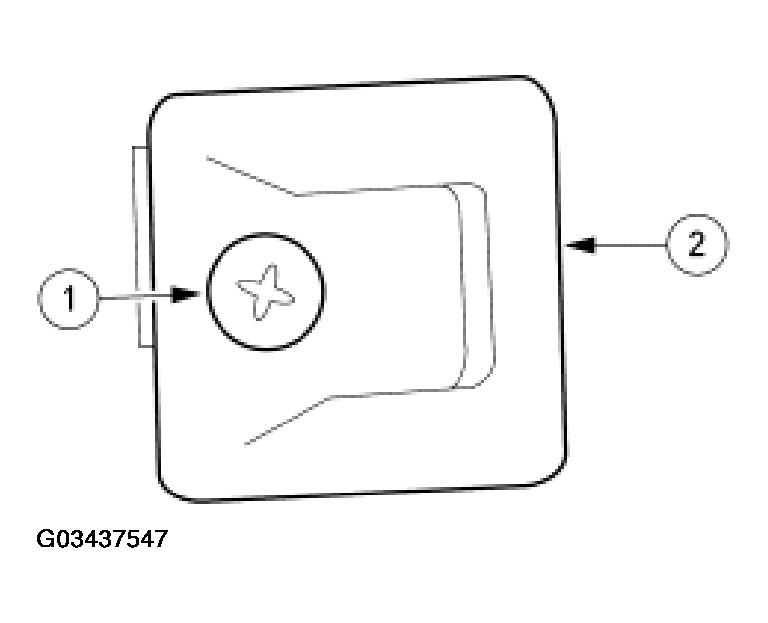

Remove the sun visor clips.
1. Remove the screws.
2. Remove the clips.
Fig 6: Removing Sun Visor Clips
Courtesy of FORD MOTOR CO.
Lower the front portion of the headliner.
Remove the interior rear view mirror. For additional information, refer to REAR VIEW MIRRORS .
Using a soft brush or vacuum, remove any dirt or foreign material from the pinch weld area.

NOTE: Lubricate the urethane bond with water to aid the special tool when cutting the urethane seal.

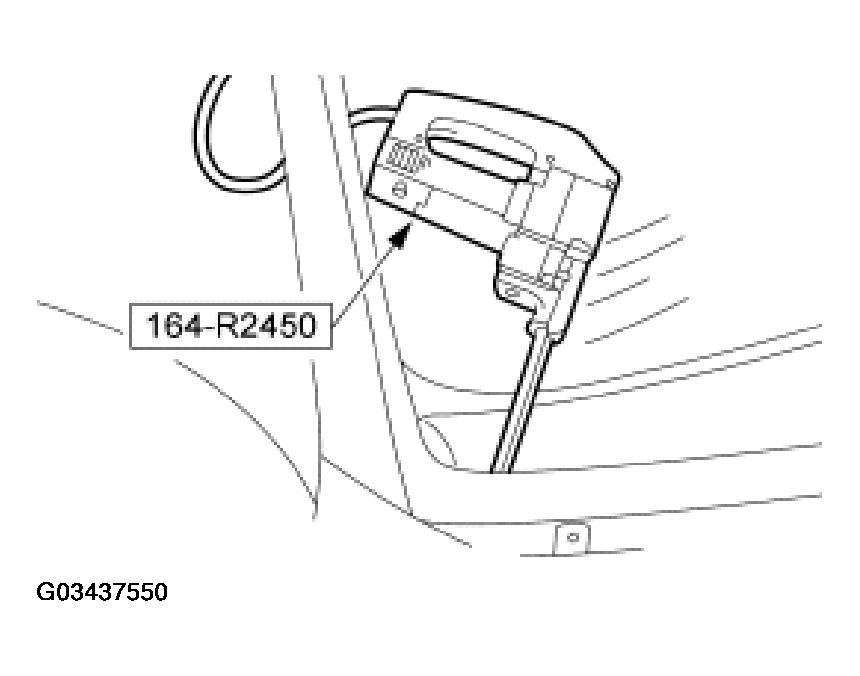

Fig 7: Cutting Urethane Adhesive

Courtesy of FORD MOTOR CO.

Using the special tool, cut the urethane adhesive from the windshield glass starting at the top center and work toward the bottom corners.
Using the special tool, distance the windshield glass from the body.

Fig 8: Distancing Windshield Glass From Body
Courtesy of FORD MOTOR CO.

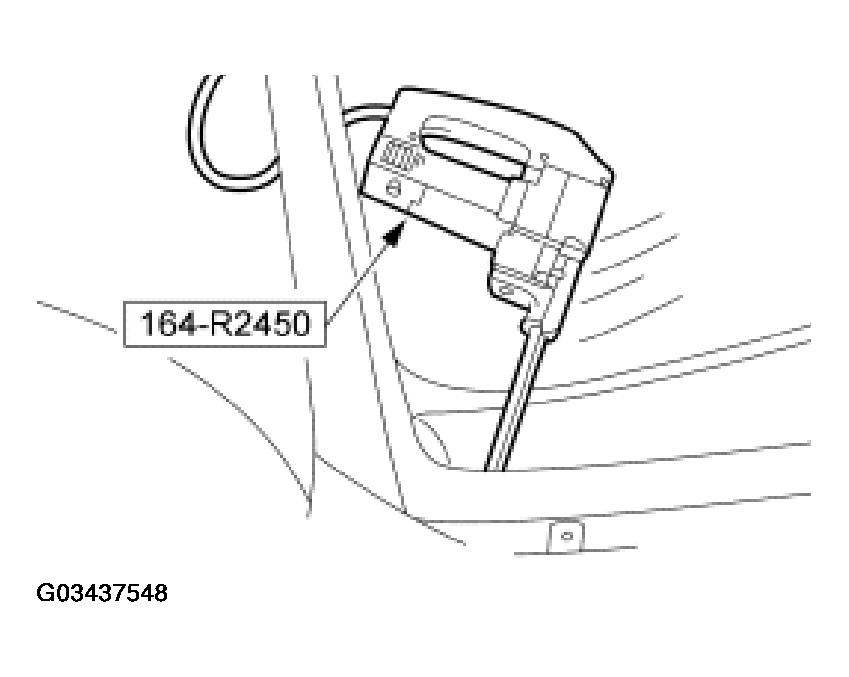

Using the special tool, cut the remaining Urethane Adhesive and remove the windshield glass.

Fig 9: Cutting Remaining Urethane Adhesive
Courtesy of FORD MOTOR CO.
Using a soft brush or vacuum, remove any dirt or foreign material from the pinch weld area.
