Removal And Installation

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the quarter trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Support the quarter window glass.
  3. Drill out the four rivets that attach the quarter window hinges to the body panel.

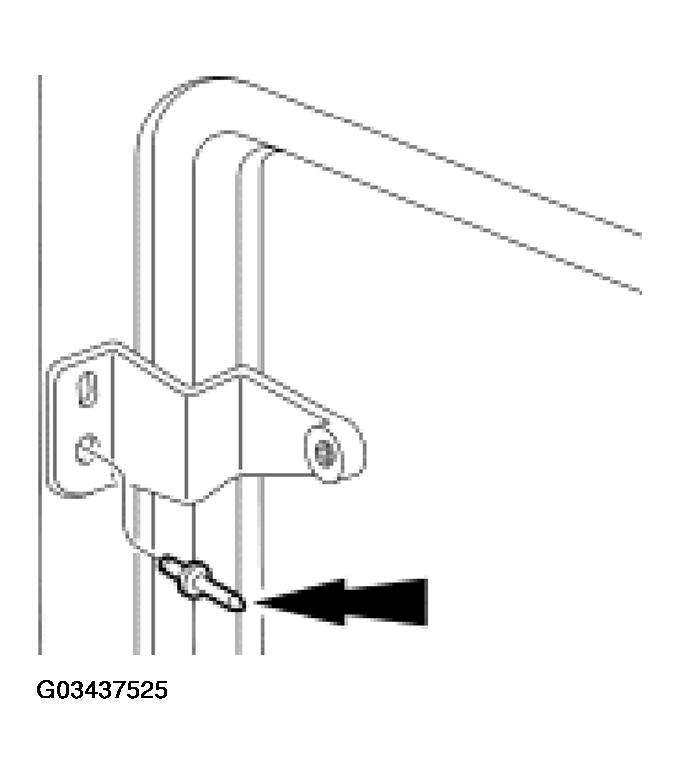

    Fig 1: Drilling Out Rivets
    G03437525Courtesy of FORD MOTOR CO.
  4. Remove the quarter window glass.

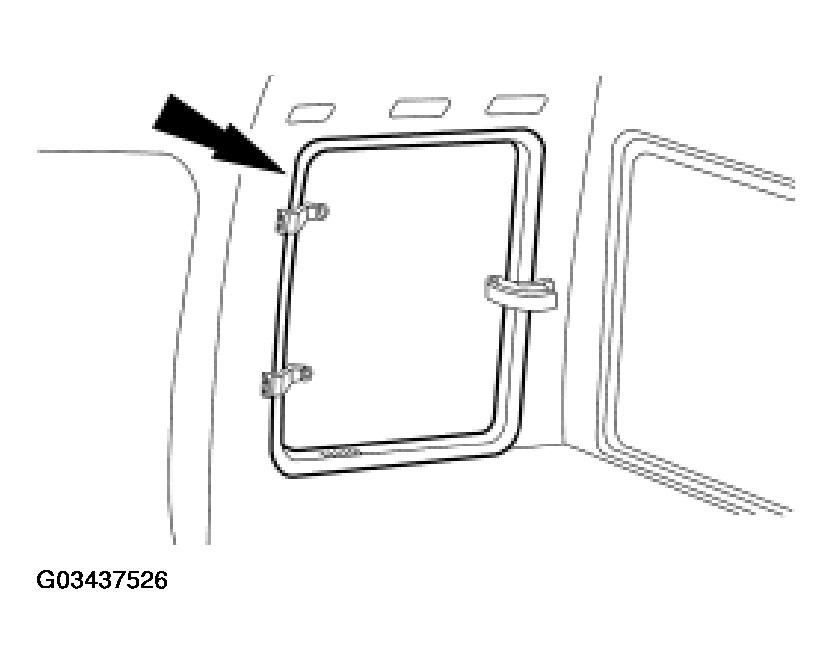

    Fig 2: Removing Quarter Window Glass
    G03437526Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
    • Use Heavy Duty Riveter to install the rivets.
