Pinpoint Test D: The One Touch Down Feature Is Inoperative
WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

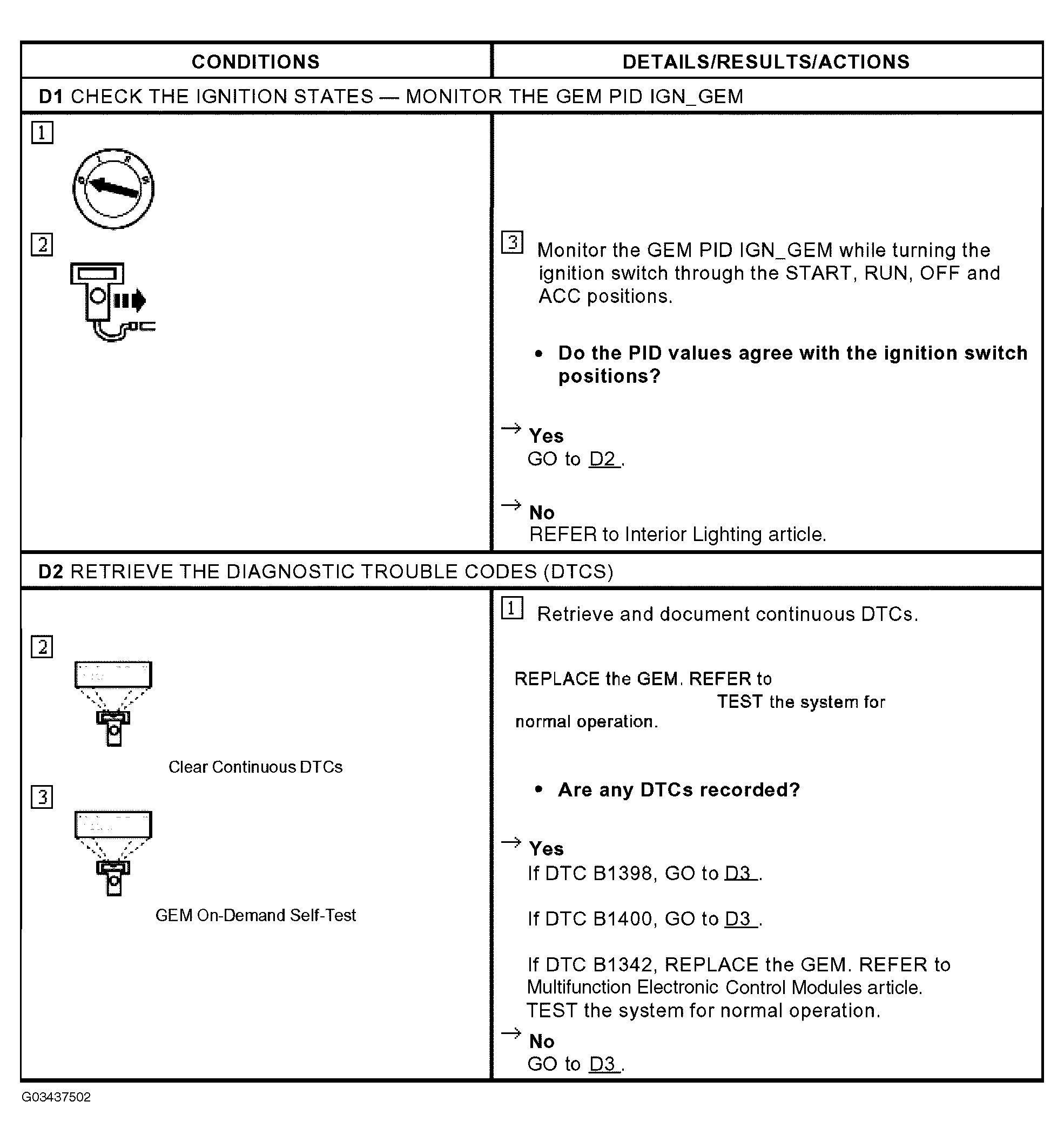

Fig 1: Pinpoint Test D: One Touch Down Feature Is Inoperative (D1-D2)
Courtesy of FORD MOTOR CO.

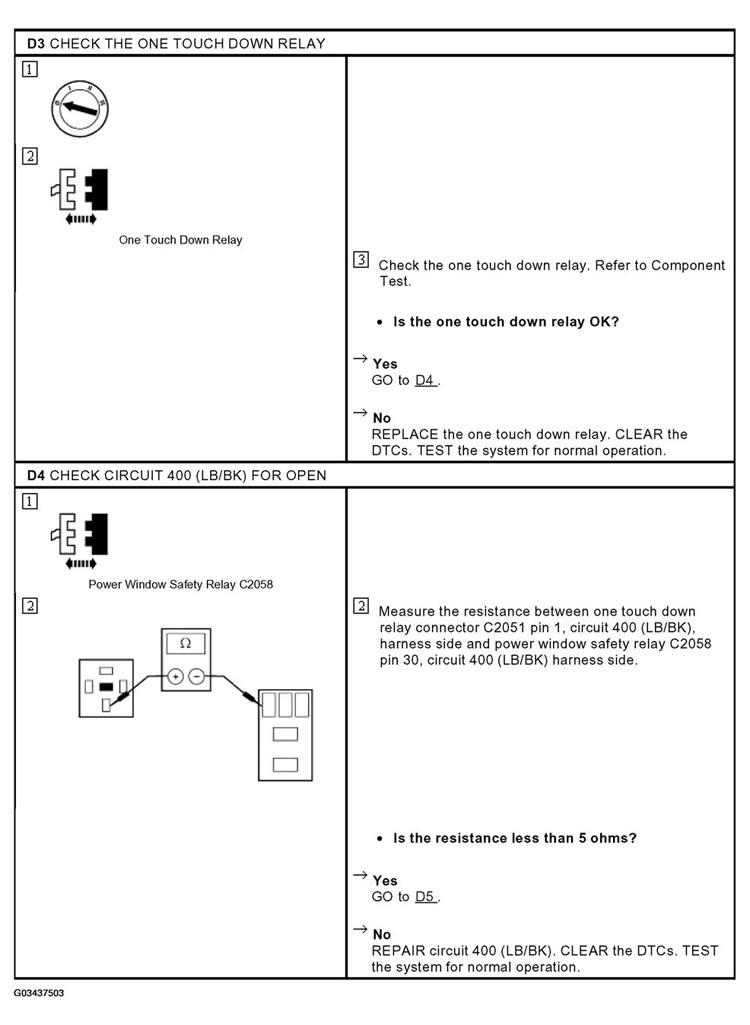

Fig 2: Pinpoint Test D: One Touch Down Feature Is Inoperative (D3-D4)
Courtesy of FORD MOTOR CO.

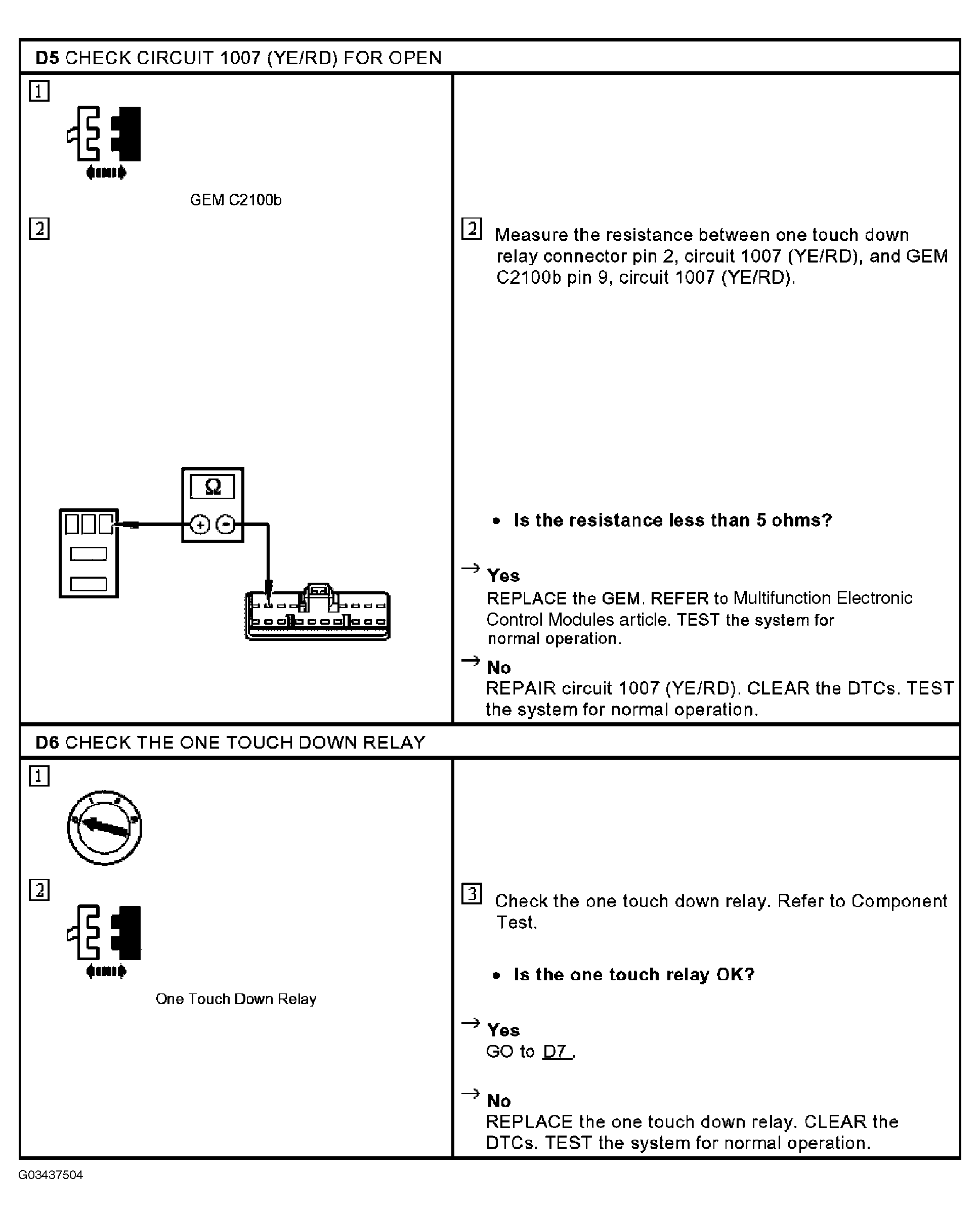

Fig 3: Pinpoint Test D: One Touch Down Feature Is Inoperative (D5-D6)
Courtesy of FORD MOTOR CO.

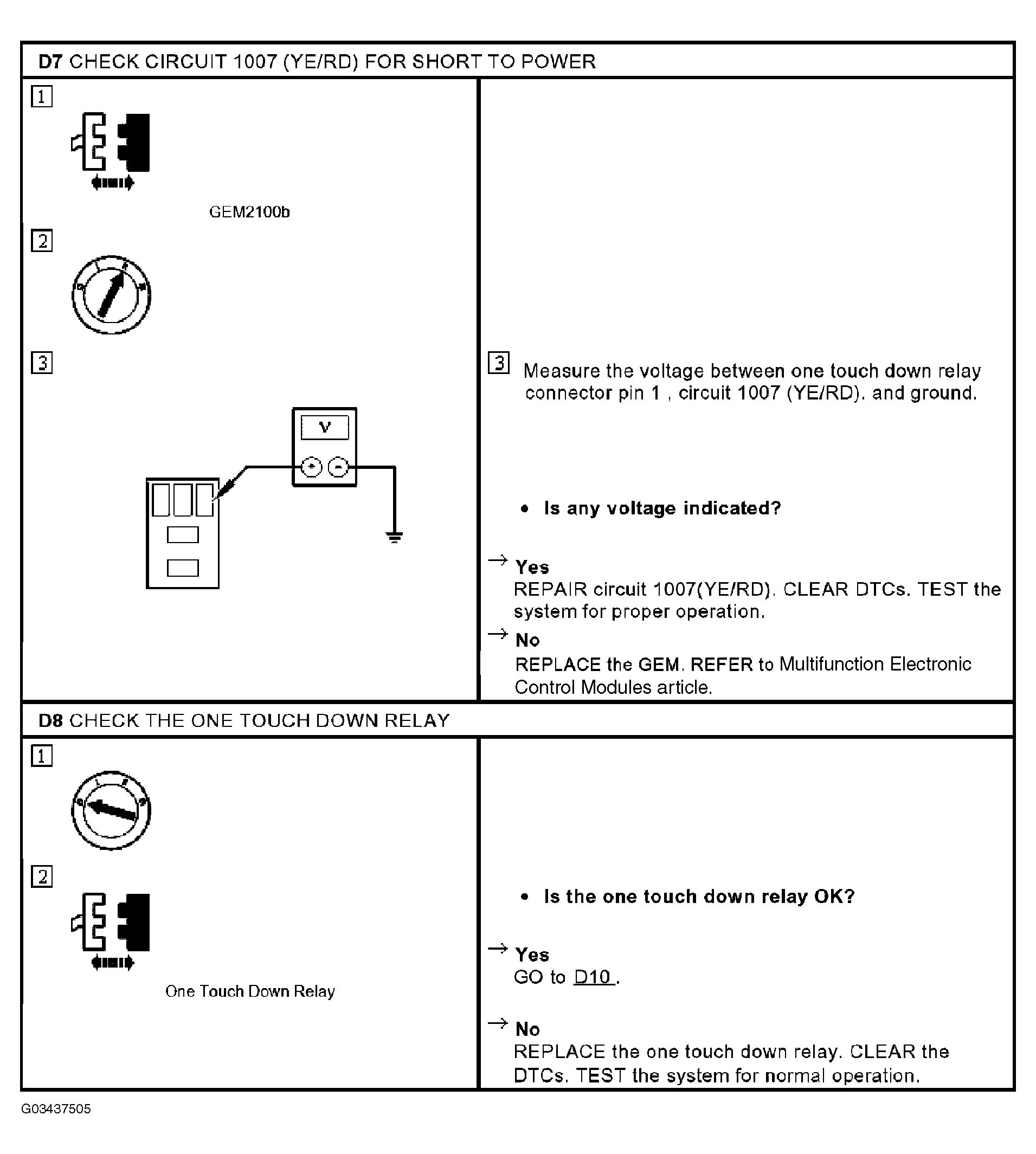

Fig 4: Pinpoint Test D: One Touch Down Feature Is Inoperative (D7-D8)
Courtesy of FORD MOTOR CO.

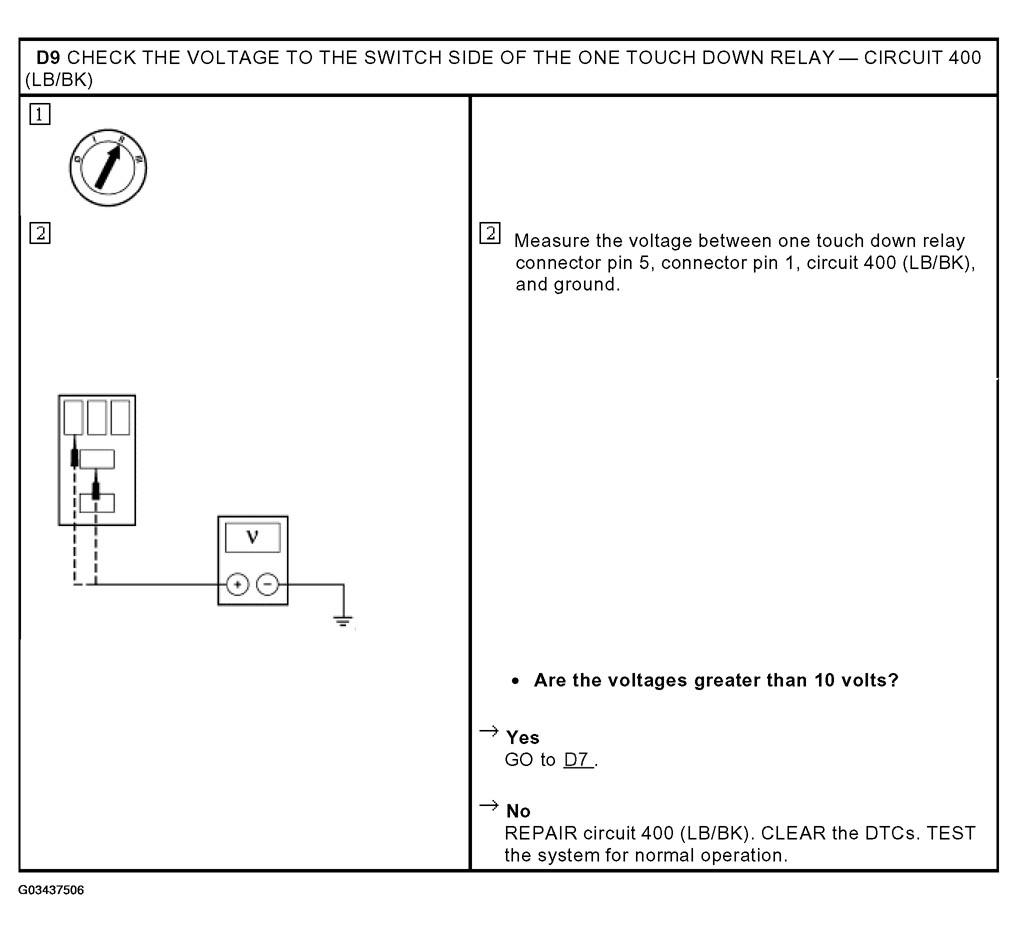

Fig 5: Pinpoint Test D: One Touch Down Feature Is Inoperative (D9)
Courtesy of FORD MOTOR CO.

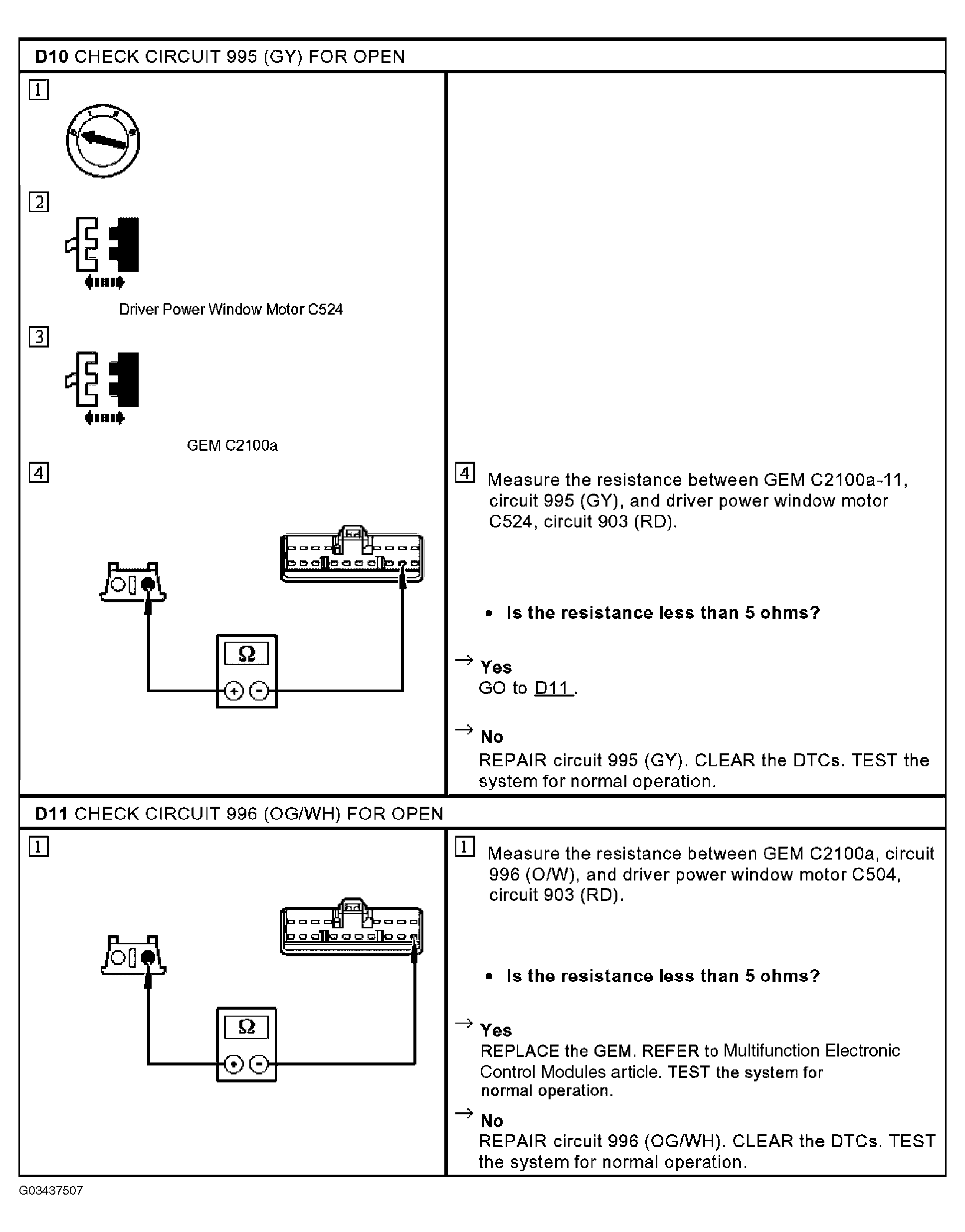

Fig 6: Pinpoint Test D: One Touch Down Feature Is Inoperative (D10-D11)
