Pinpoint Test A: All Power Windows Are Inoperative

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

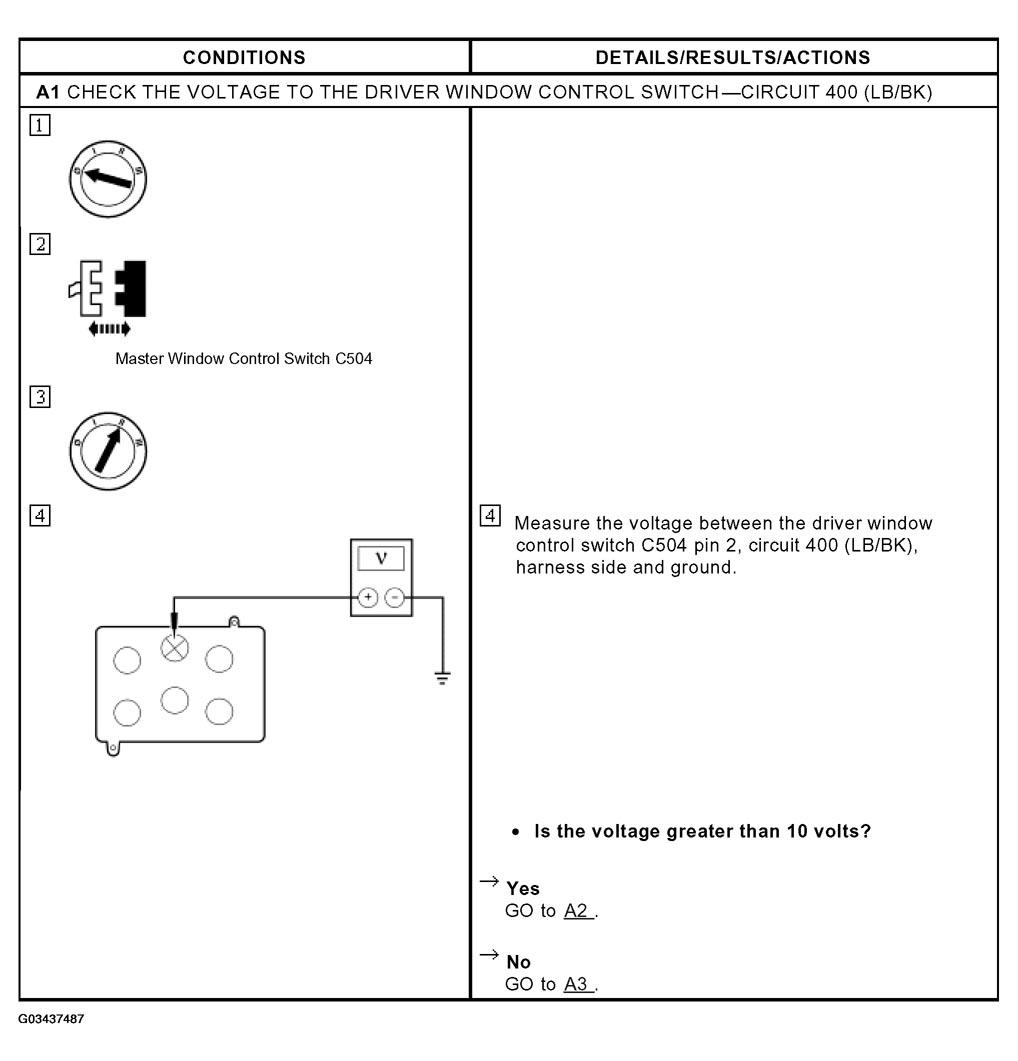

Fig 1: Pinpoint Test A: All Power Windows Are Inoperative (A1)
G03437487Courtesy of FORD MOTOR CO.

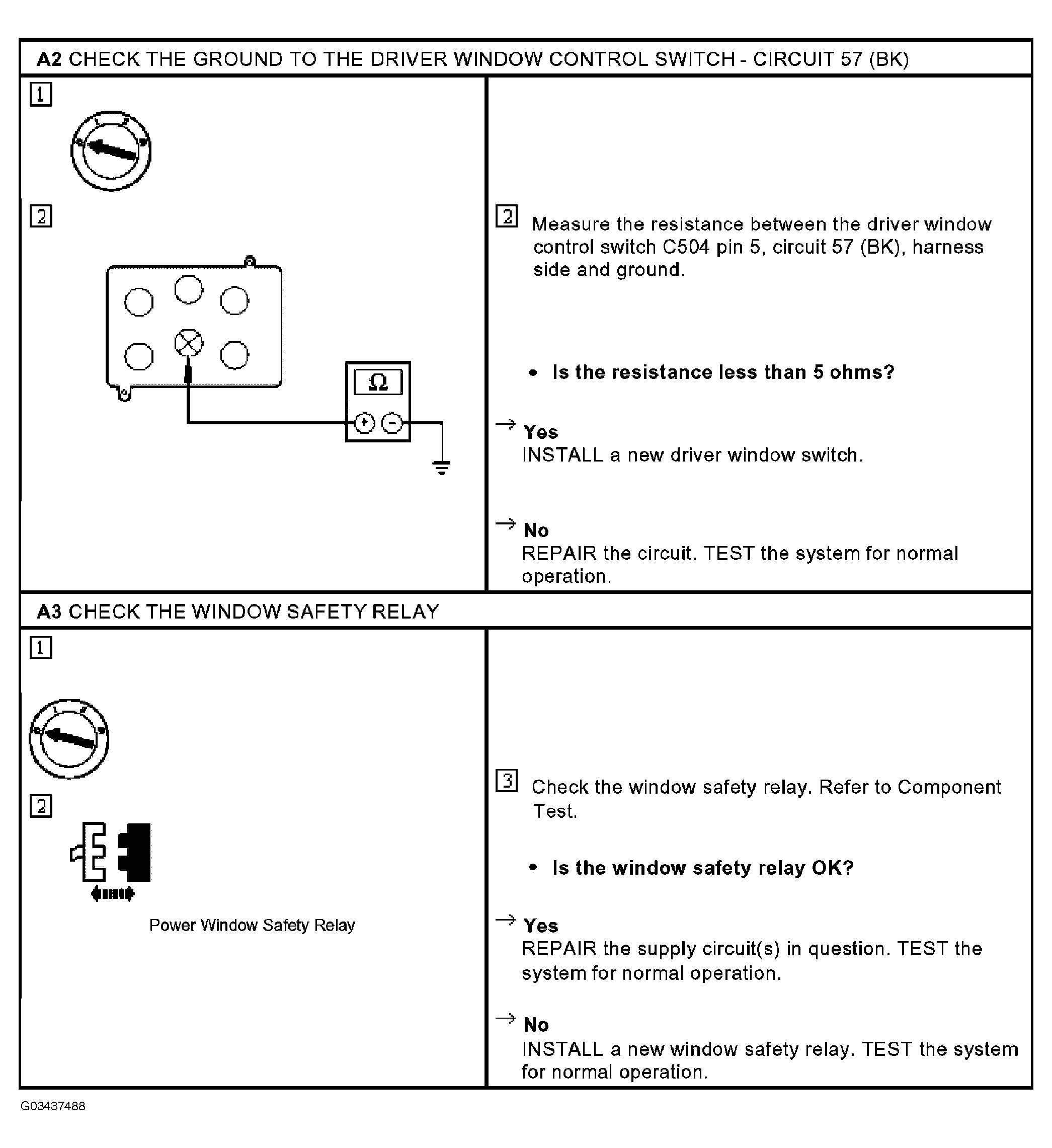

Fig 2: Pinpoint Test A: All Power Windows Are Inoperative (A2-A3)
G03437488Courtesy of FORD MOTOR CO.
