Removal & Installation
WARNING: This page is about a different car, the 2003 Ford Windstar and 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the brake shoes and linings. See BRAKE SHOES .

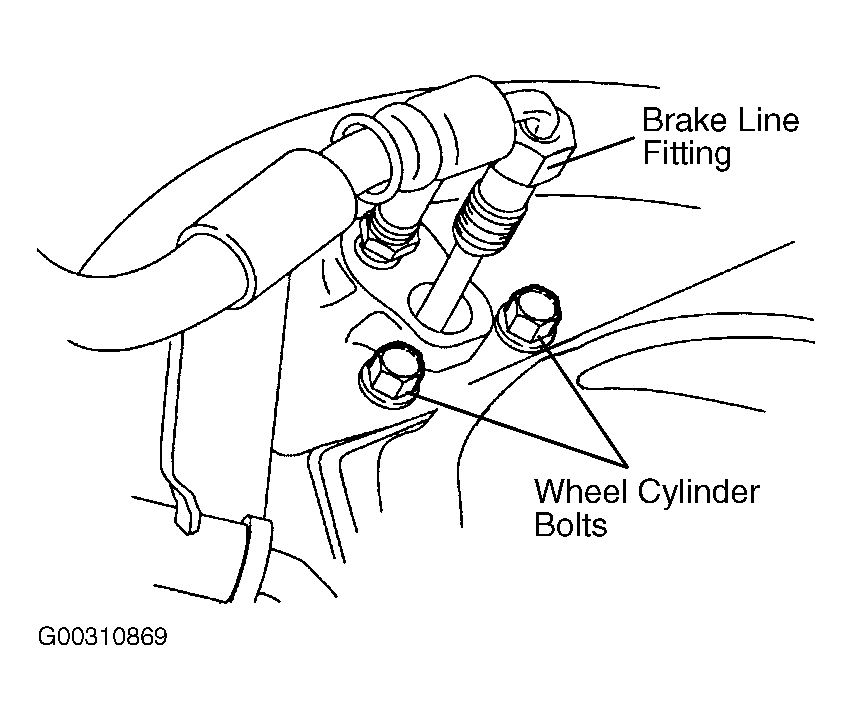

- Disconnect the brake line fitting. See Fig 1 .
- Remove the two rear wheel cylinder bolts and remove the wheel cylinder.
- To install, reverse removal procedure. Adjust brakes, and bleed hydraulic system. See BLEEDING BRAKE SYSTEM .
