Drums Installed

WARNING: This page is about a different car, the 2003 Ford Windstar and 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support vehicle. Remove adjusting hole cover rubber plug. Turn adjusting screw and expand brake shoes until drag is felt against brake drum. See Fig 1 .
  2. Then loosen the brake adjuster screw until the brake drum rotates freely.
  3. Install adjusting hole cover.

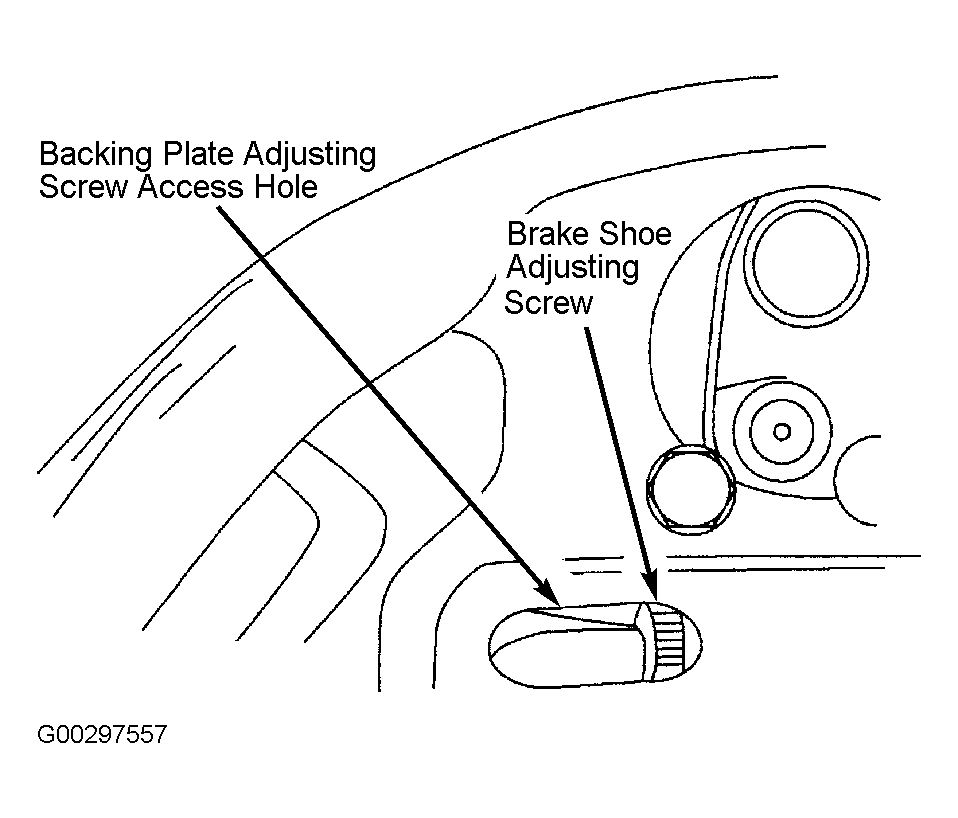

Fig 1: Accessing Drum Brake Shoe Adjuster
G00297557Courtesy of FORD MOTOR CO.
