Trim Panel - Quarter, Regular Cab: Removal

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

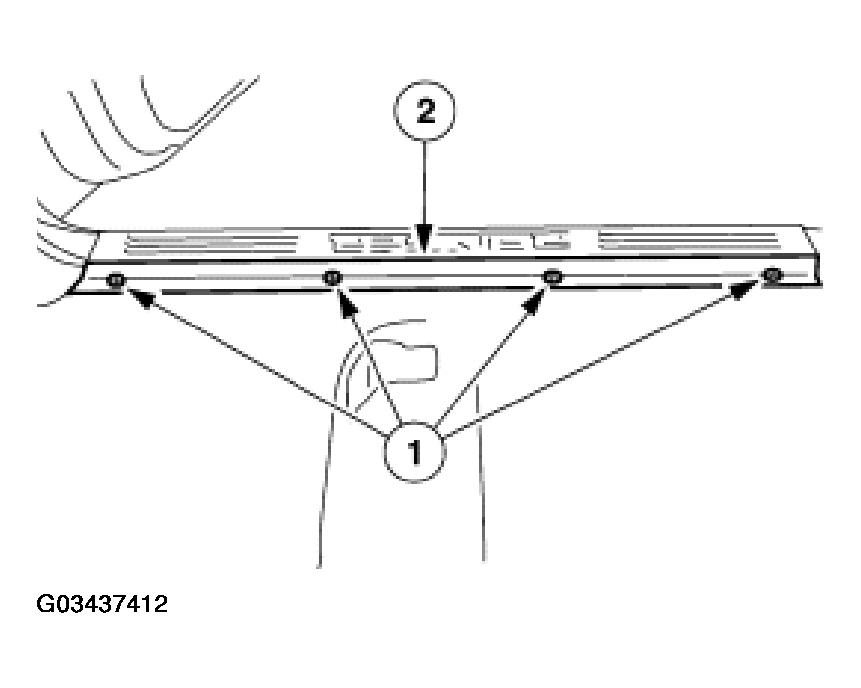

Remove the scuff plate.
1. Remove the screws.
2. Remove the scuff plate.
Fig 1: Removing Scuff Plate
Courtesy of FORD MOTOR CO.
On RH quarter trim panel, remove the jack handle carrier cover.

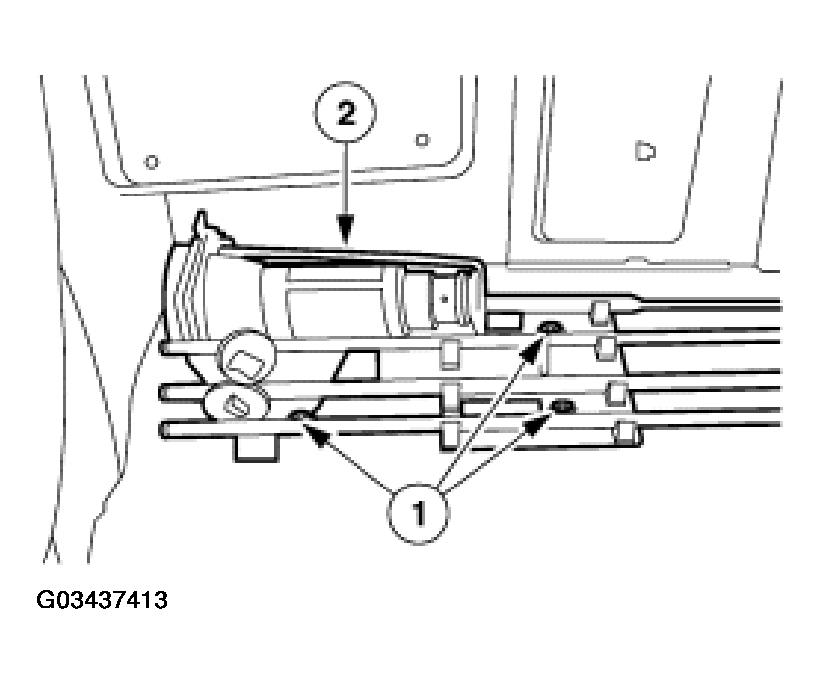

On RH quarter trim panel, remove the jack handle carrier.
1. Remove the screws.
2. Remove the jack handle carrier.
Fig 2: Removing Jack Handle Carrier
Courtesy of FORD MOTOR CO.
On LH quarter trim panel, remove the package tray mat.

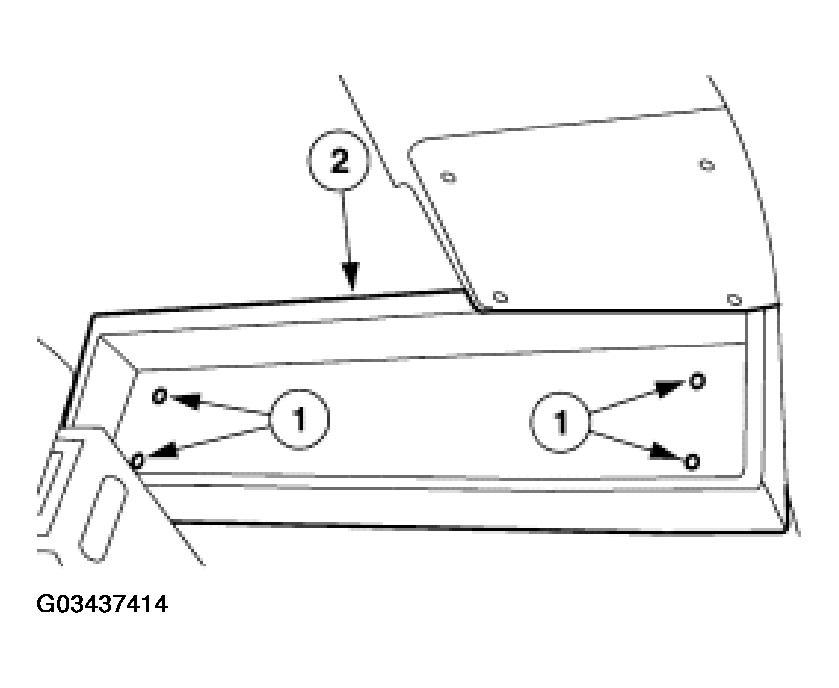

On LH quarter trim panel, remove the package tray.
1. Remove the screws.
2. Remove the package tray.
Fig 3: Removing Package Tray
Courtesy of FORD MOTOR CO.

NOTE: If the safety belt guide cover is damaged or if it does not remain closed, install a new cover.

NOTE: Safety belt guide cover shown removed for clarity.

Fig 4: Releasing Retaining Tab And Open Cover

Courtesy of FORD MOTOR CO.

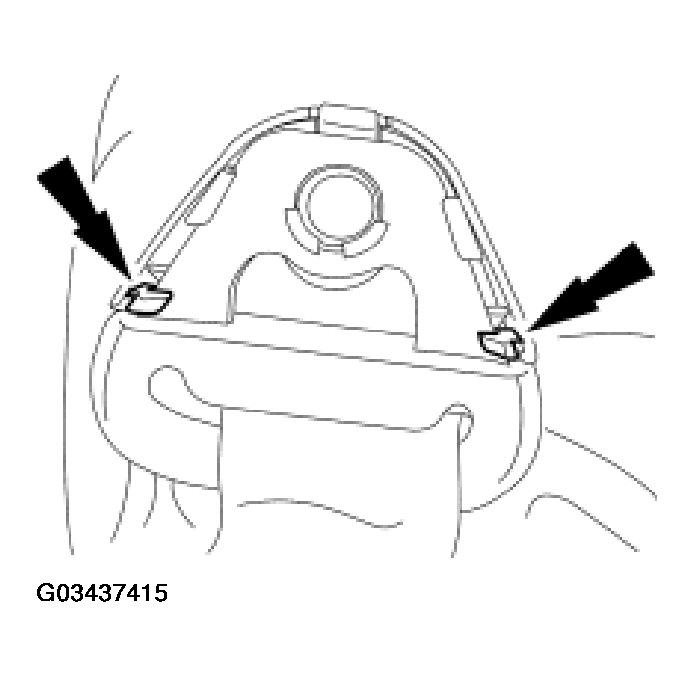

From behind the front safety belt guide cover, release the retaining tab and open the cover.

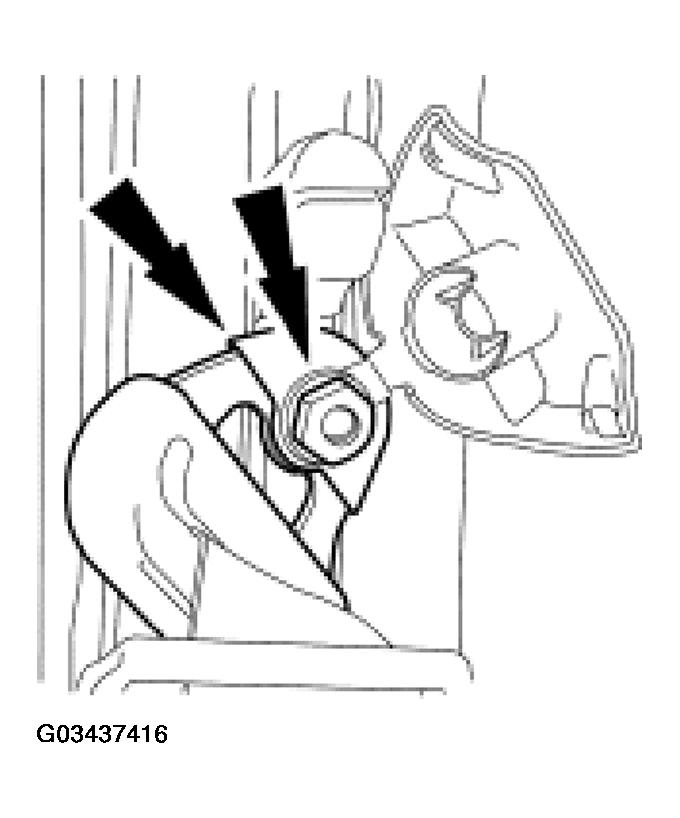

Remove the nut and safety belt guide.

Fig 5: Removing Nut And Safety Belt Guide
Courtesy of FORD MOTOR CO.

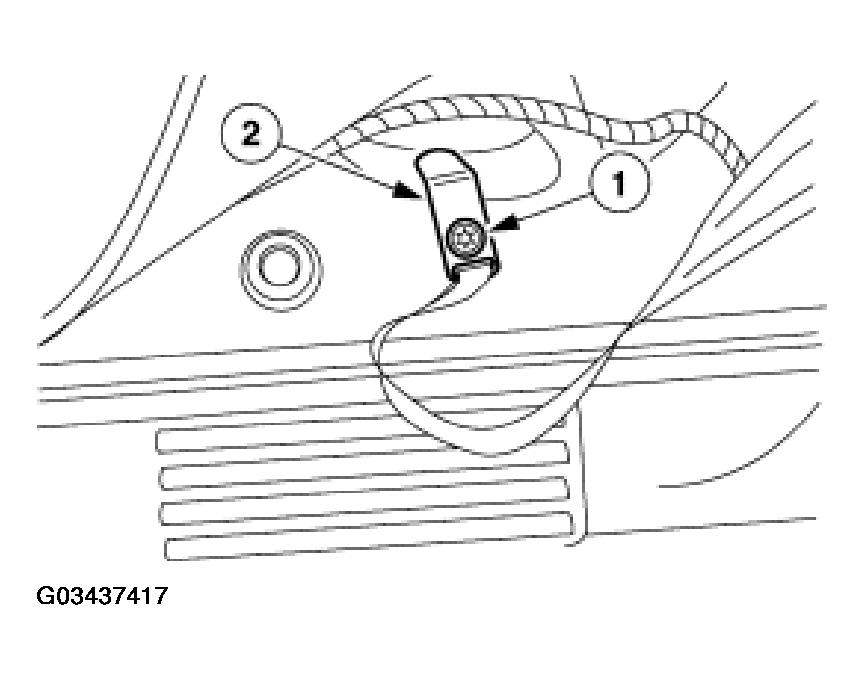

Disconnect the safety belt anchor.
1. Use Safety Belt Bolt Bit to remove the bolt.
2. Disconnect the safety belt anchor.
Fig 6: Disconnecting Safety Belt Anchor
Courtesy of FORD MOTOR CO.
Reposition the quarter trim panel.
1. Remove the pin-type retainers.
2. Reposition the quarter trim panel.

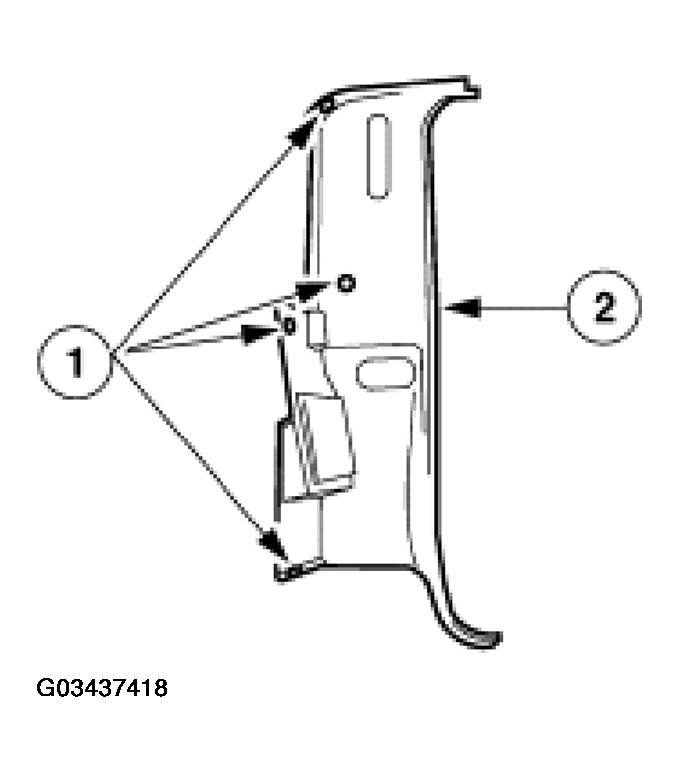

Fig 7: Removing Pin-Type Retainers
Courtesy of FORD MOTOR CO.

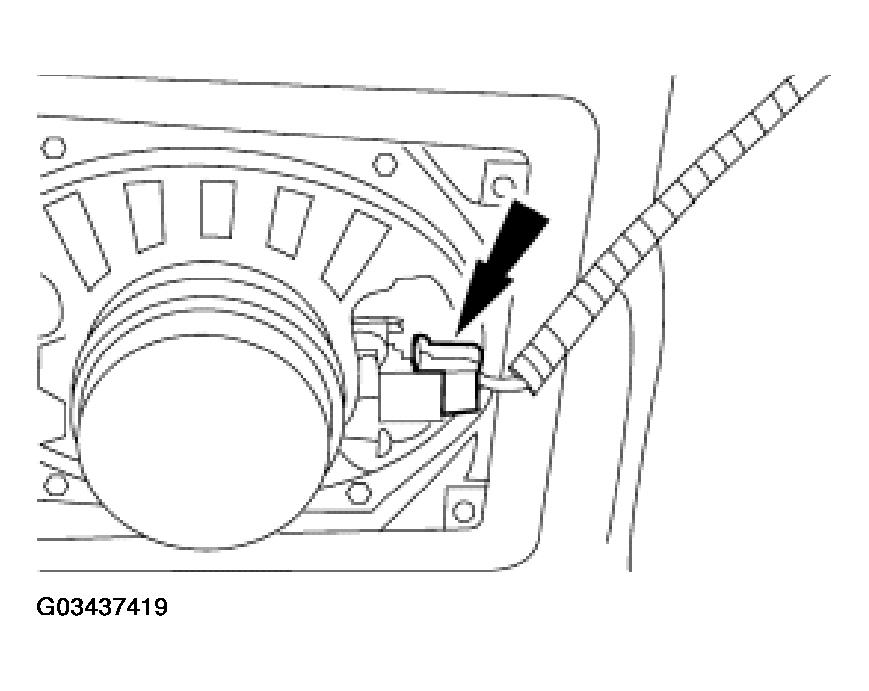

Disconnect the radio speaker electrical connector.

Fig 8: Disconnecting Radio Speaker Electrical Connector
Courtesy of FORD MOTOR CO.

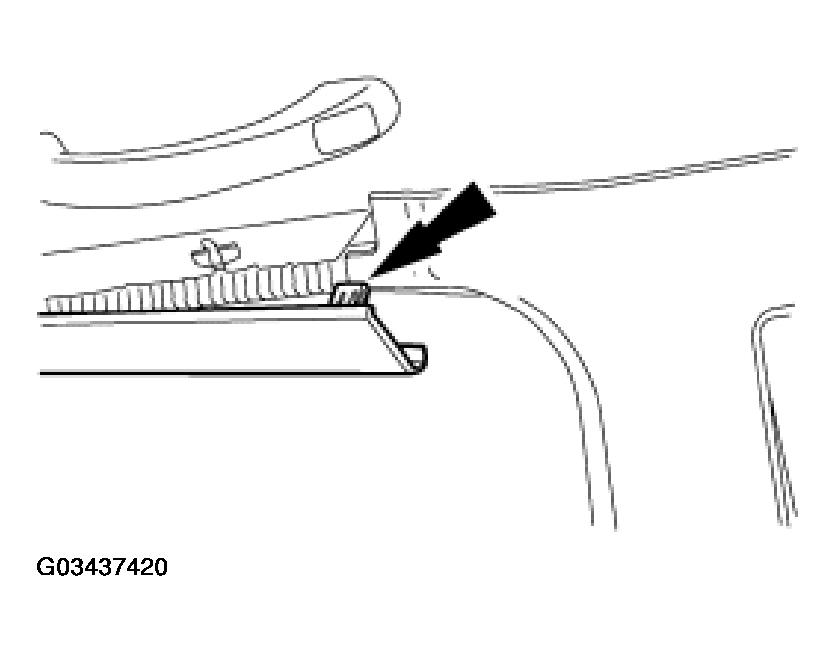

Lower the rear of the A-pillar moulding to remove the quarter trim panel.

Fig 9: Removing Quarter Trim Panel
Courtesy of FORD MOTOR CO.
Remove the quarter trim panel.
- Feed the safety belt webbing through the quarter trim panel.
