Removal And Installation: Headliner: Removal

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Regular cab shown, SuperCab similar.

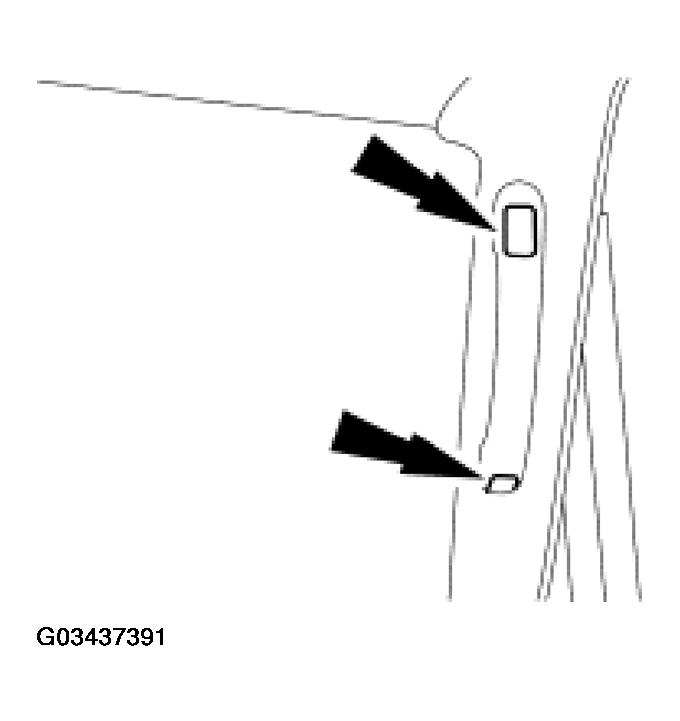

If equipped, remove the windshield side garnish moulding passenger assist handle bolt covers.

Fig 1: Removing Bolt Covers
Courtesy of FORD MOTOR CO.

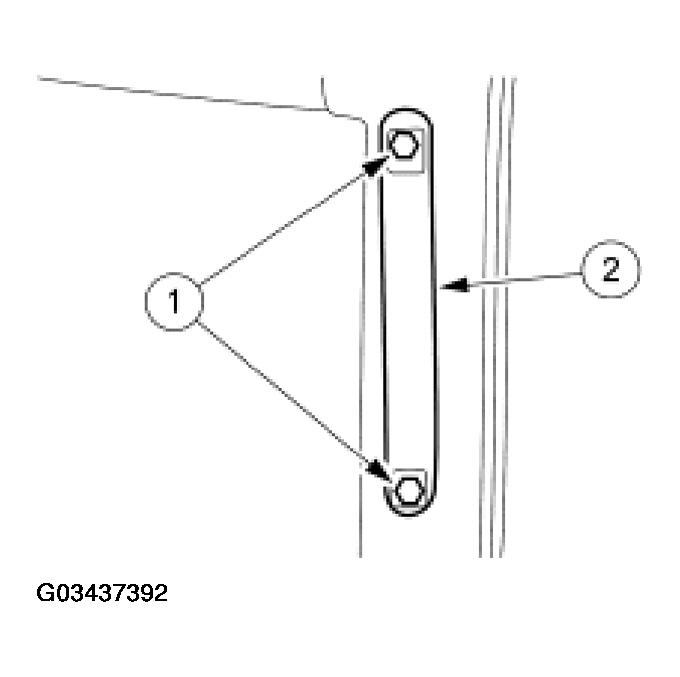

If equipped, remove the windshield side garnish moulding passenger assist handles.
1. Remove the bolts.
2. Remove the passenger assist handles.
Fig 2: Removing Bolts And Handles
Courtesy of FORD MOTOR CO.

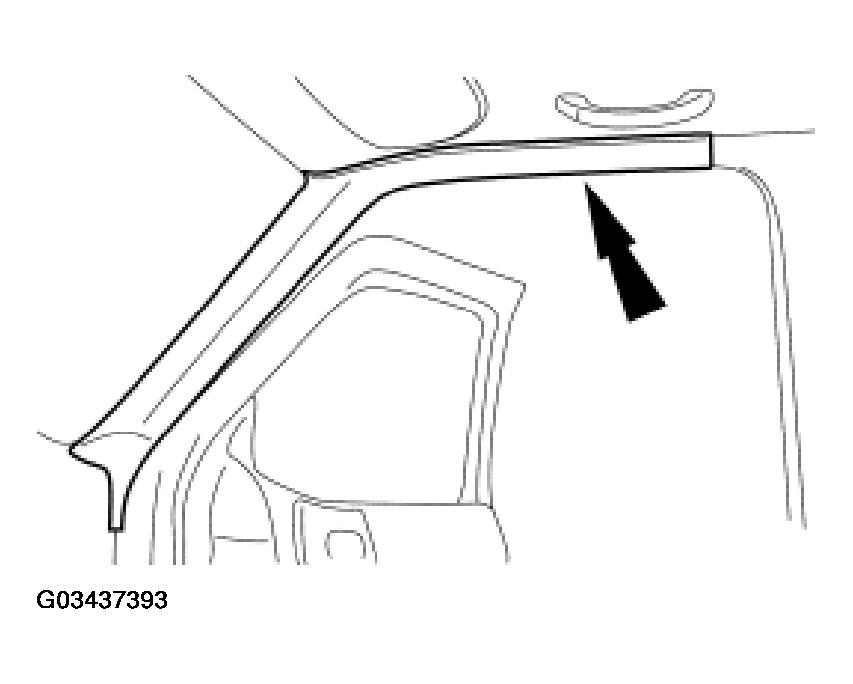

Remove the windshield side garnish mouldings.

Fig 3: Removing Mouldings
Courtesy of FORD MOTOR CO.

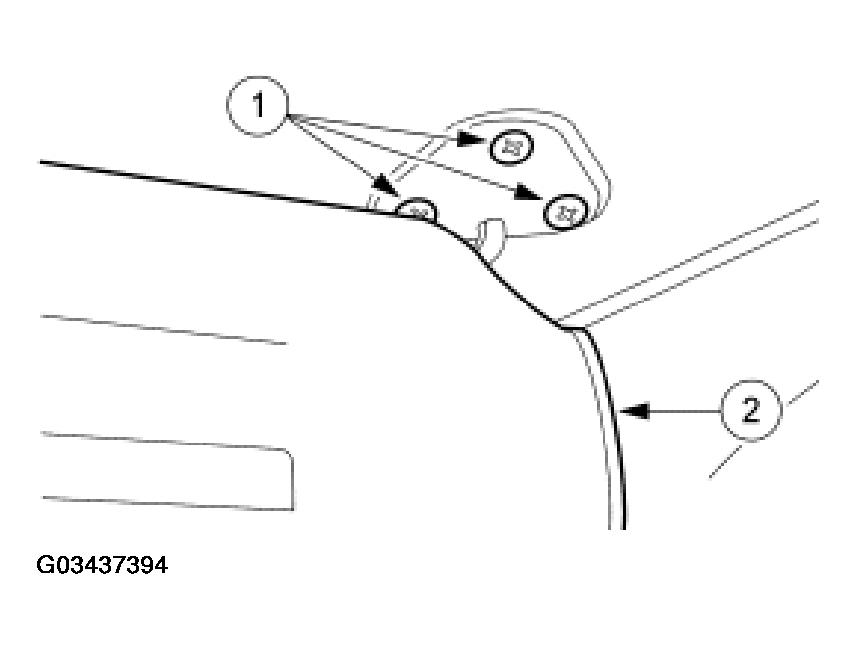

Remove the sun visors.
1. Remove the six screws.
2. Remove the sun visors.
Fig 4: Removing Screws And Sun Visors
Courtesy of FORD MOTOR CO.

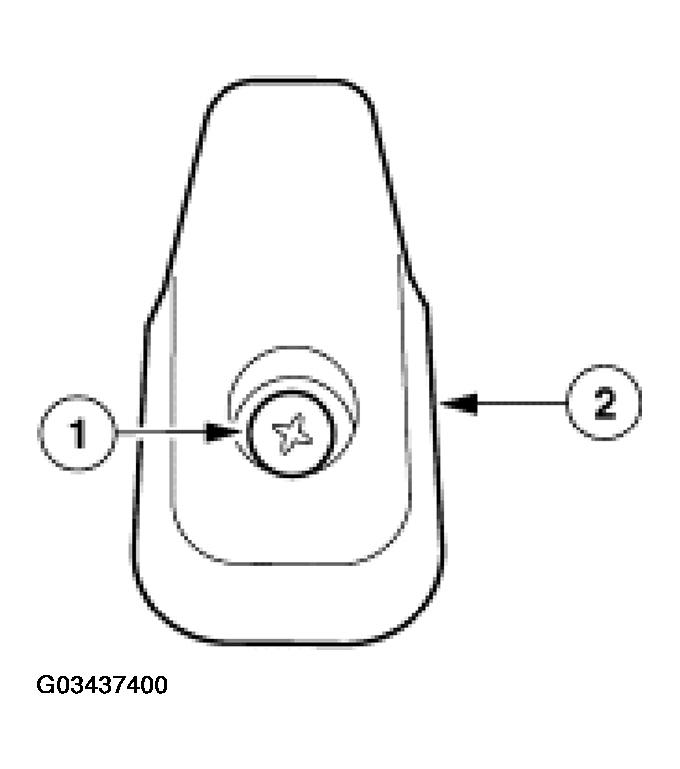

Remove the sun visor brackets.
1. Remove the screws (one each side).
2. Remove the sun visor brackets.
Fig 5: Removing Sun Visor Brackets
Courtesy of FORD MOTOR CO.

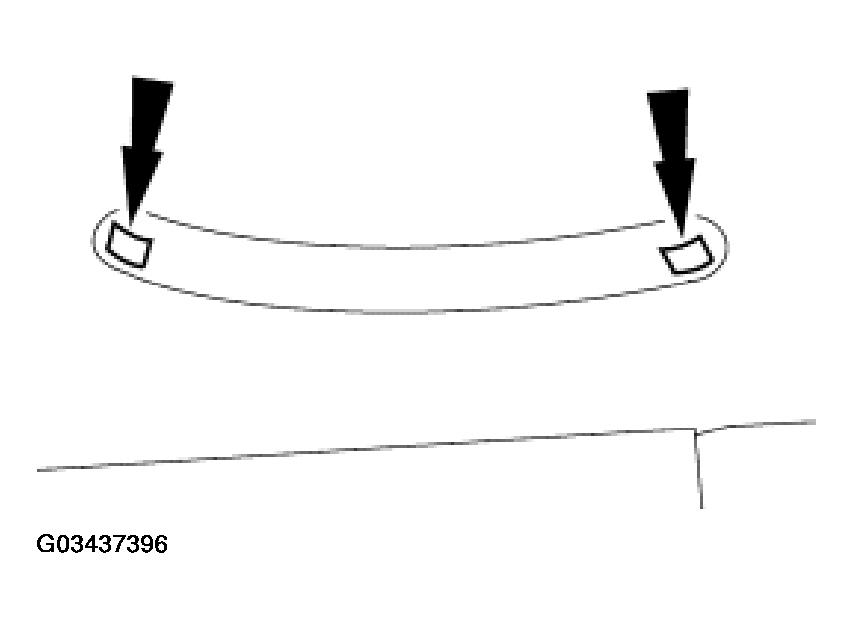

If equipped, remove the passenger assist handle screw covers.

Fig 6: Removing Assist Handle Screw Covers
Courtesy of FORD MOTOR CO.

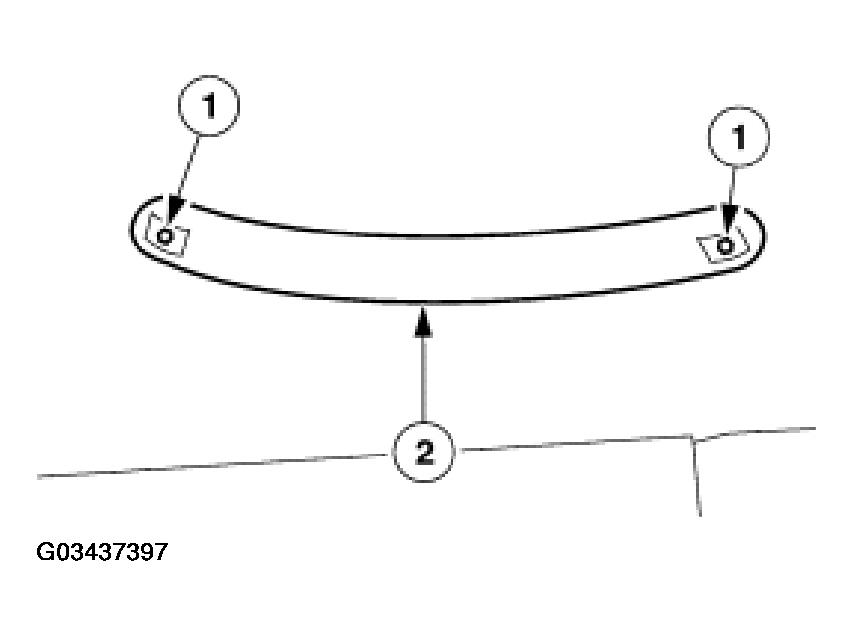

If equipped, remove the passenger assist handle.
1. Remove the screws.
2. Remove the passenger assist handle.
Fig 7: Removing Handle
Courtesy of FORD MOTOR CO.

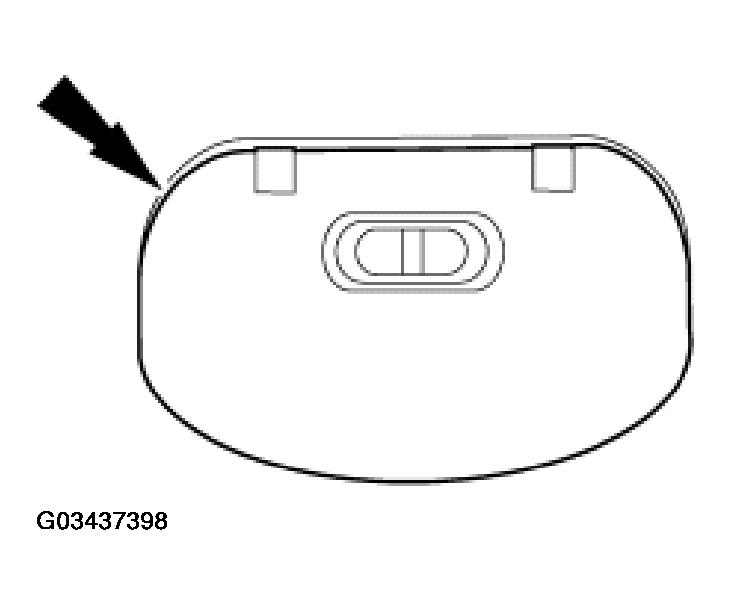

Remove the dome lamp lens.

Fig 8: Removing Dome Lamp Lens
Courtesy of FORD MOTOR CO.

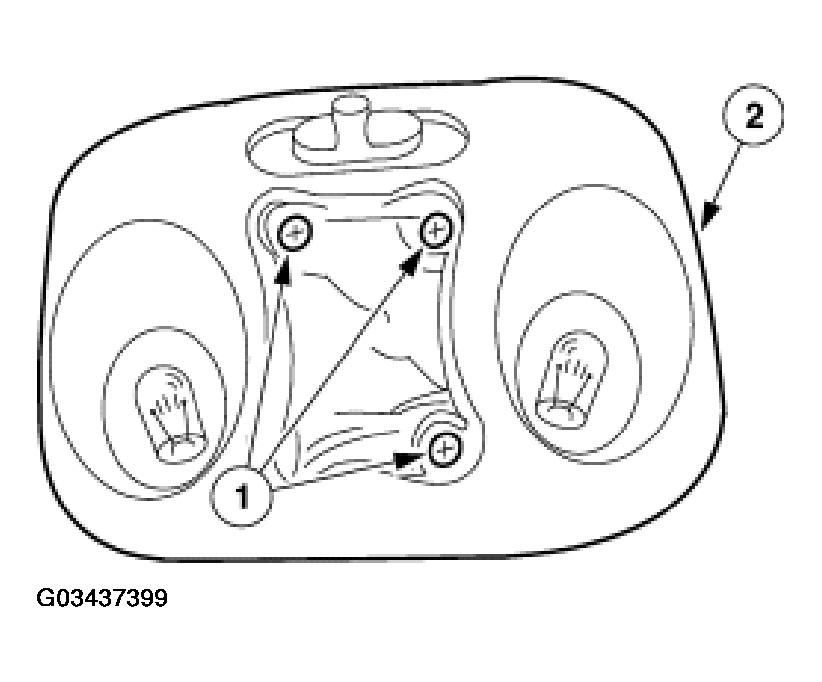

Remove the dome lamp.
1. Remove the screws.
2. Remove the dome lamp.
Fig 9: Removing Dome Lamp
Courtesy of FORD MOTOR CO.

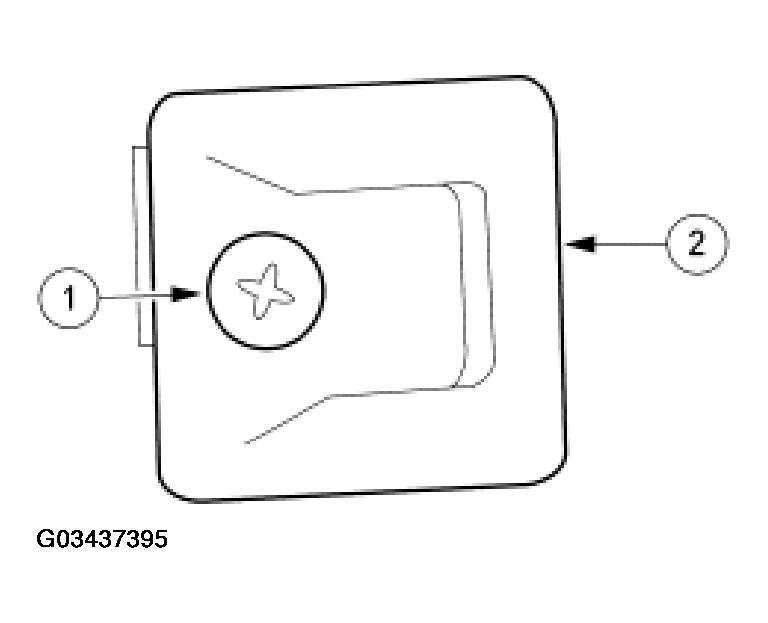

Remove the coat hook.
1. Remove the screw.
2. Remove the coat hook.
Fig 10: Removing Coat Hook
Courtesy of FORD MOTOR CO.
Remove the quarter trim panels. For additional information, refer to TRIM PANEL - QUARTER, REGULAR CAB or TRIM PANEL - QUARTER, SuperCab WITH CENTER-FACING REAR SEAT or TRIM PANEL - QUARTER, SuperCab WITHOUT CENTER-FACING REAR SEAT .
Remove the headliner.
