Interior Trim

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

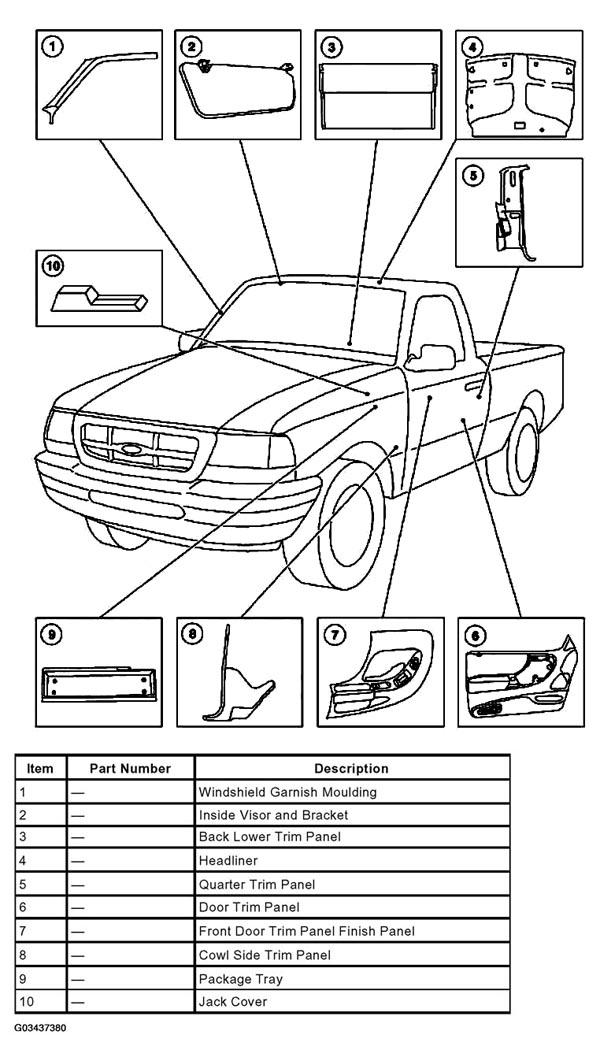

Fig 1: Identifying Interior Trim Components - Regular Cab
G03437380Courtesy of FORD MOTOR CO.

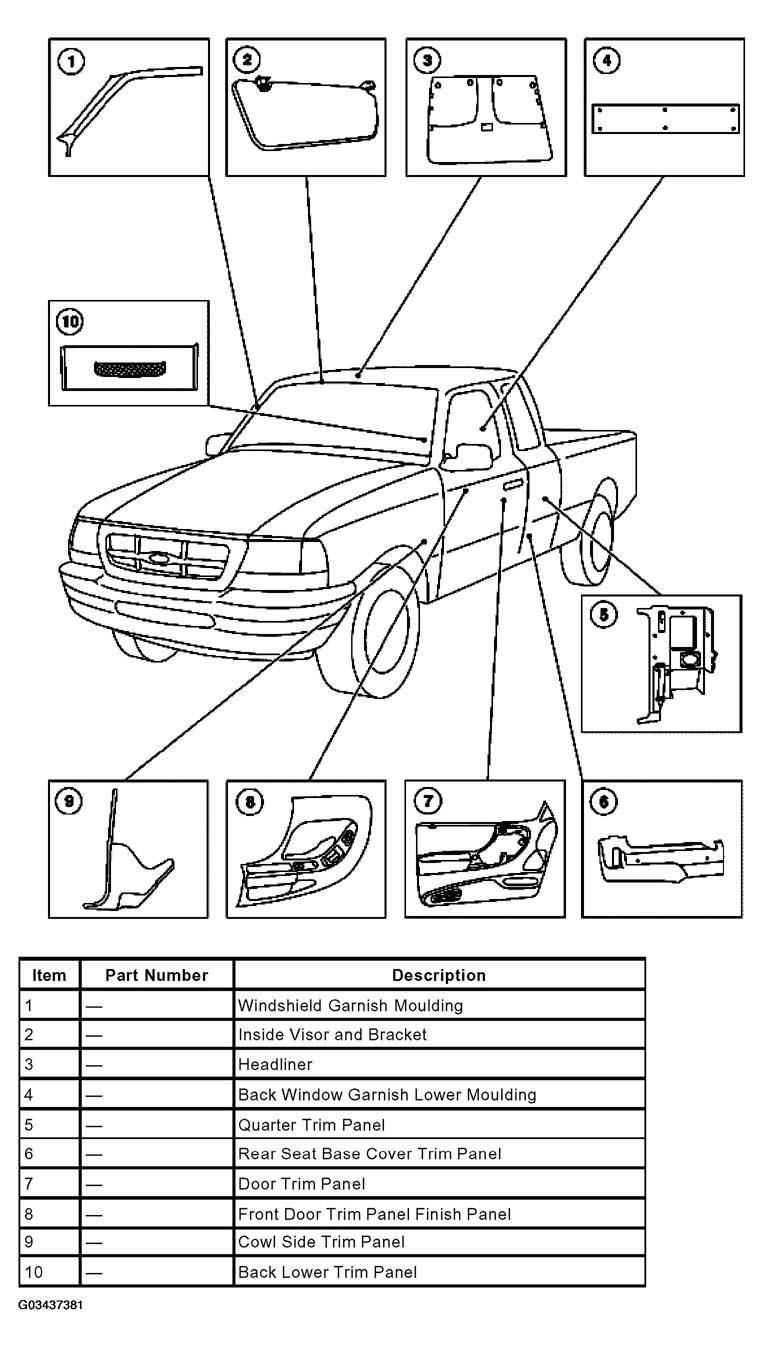

Fig 2: Identifying Interior Trim Components - SuperCab, With Center-Facing Rear Seats
G03437381Courtesy of FORD MOTOR CO.

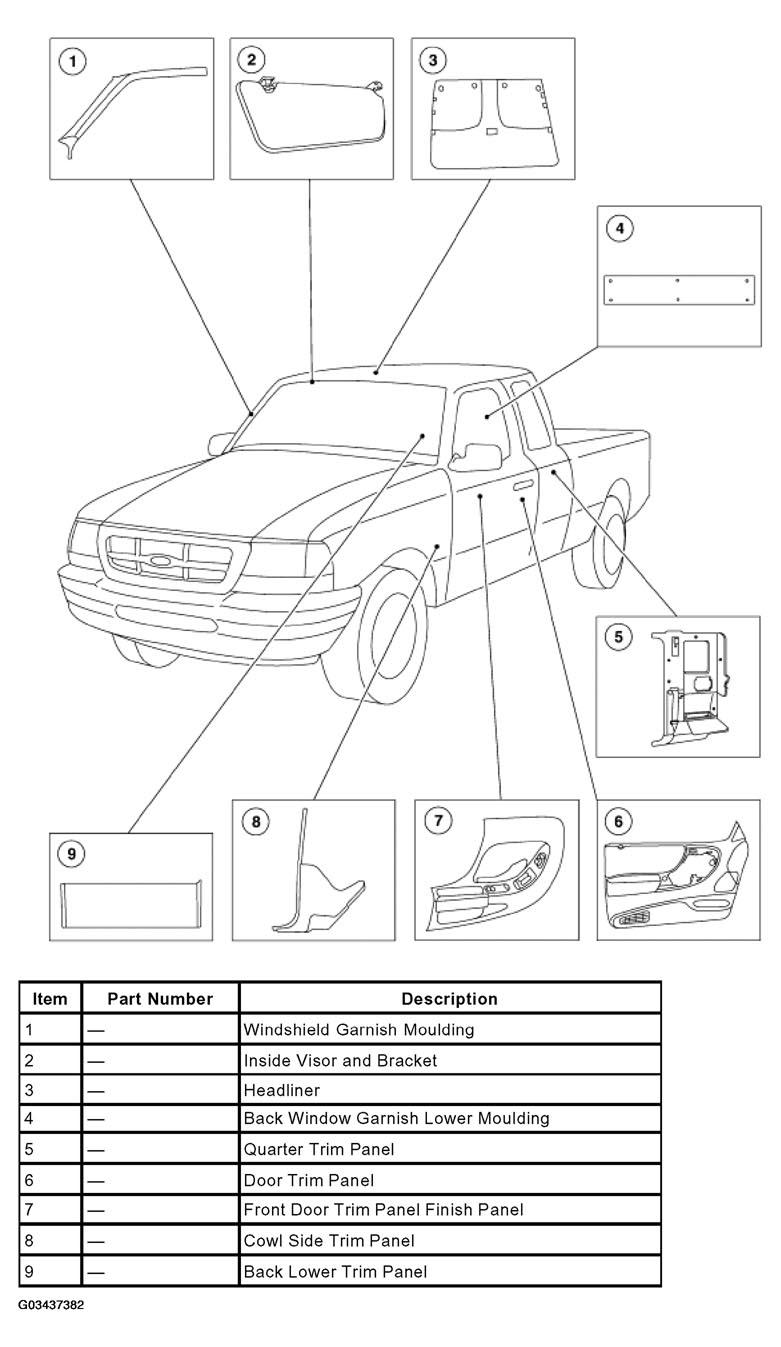

Fig 3: Identifying Interior Trim Components - SuperCab, Without Center-Facing Rear Seats
G03437382Courtesy of FORD MOTOR CO.
