Pinpoint Test G: The Anti-Theft Indicator Is Always/Never On

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

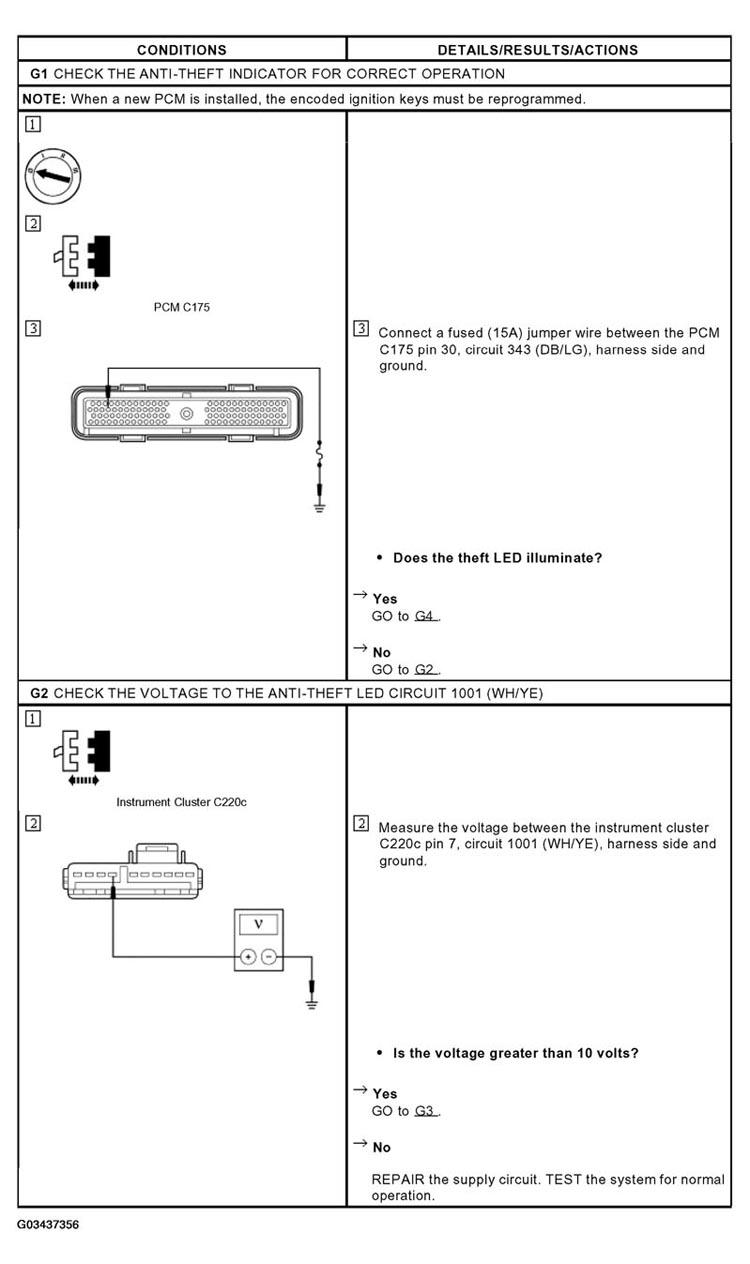

Fig 1: Pinpoint Test G: Anti-Theft Indicator Is Always/Never On (G1-G2)
G03437356Courtesy of FORD MOTOR CO.

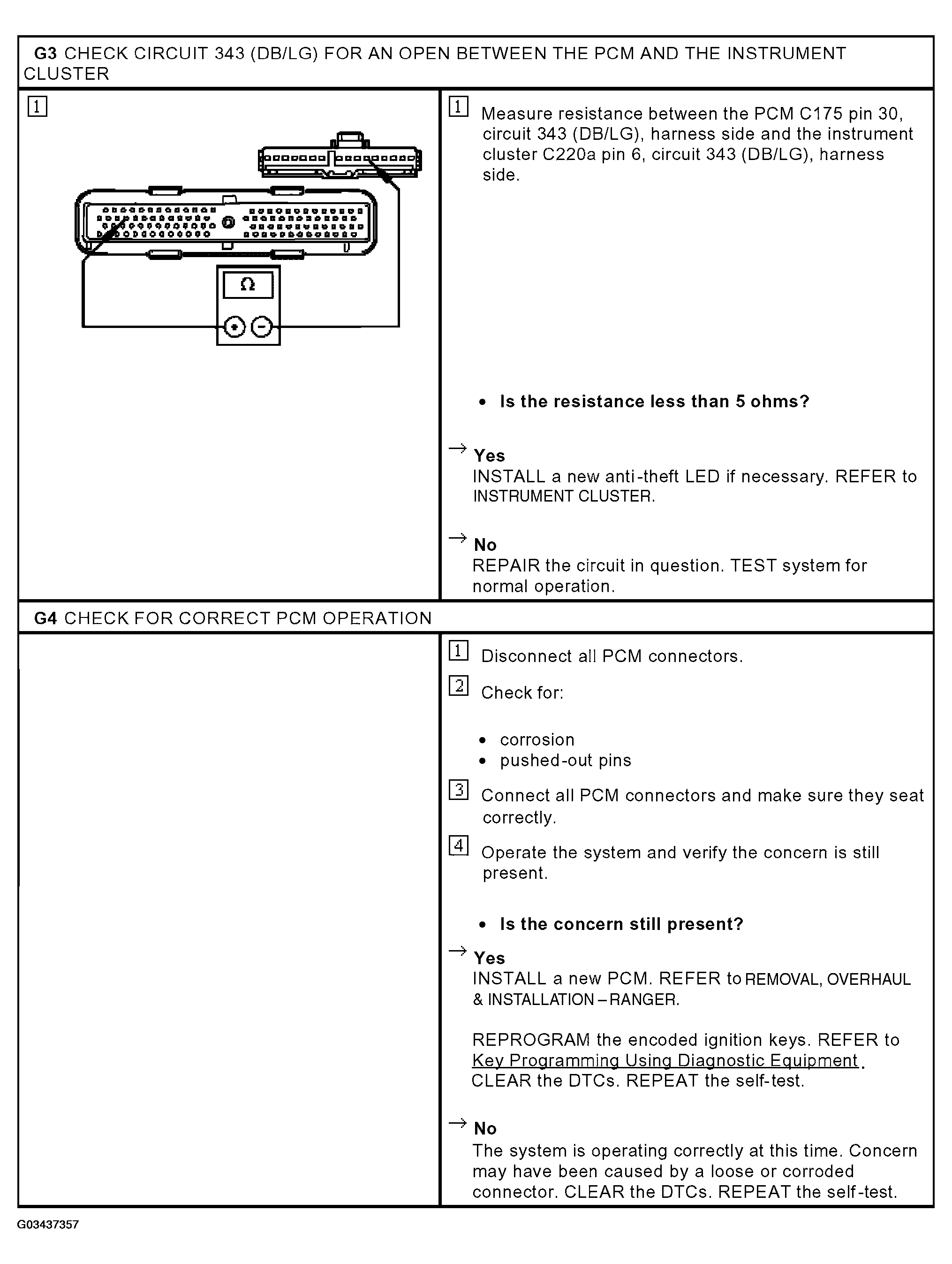

Fig 2: Pinpoint Test G: Anti-Theft Indicator Is Always/Never On (G3-G4)
G03437357Courtesy of FORD MOTOR CO.
