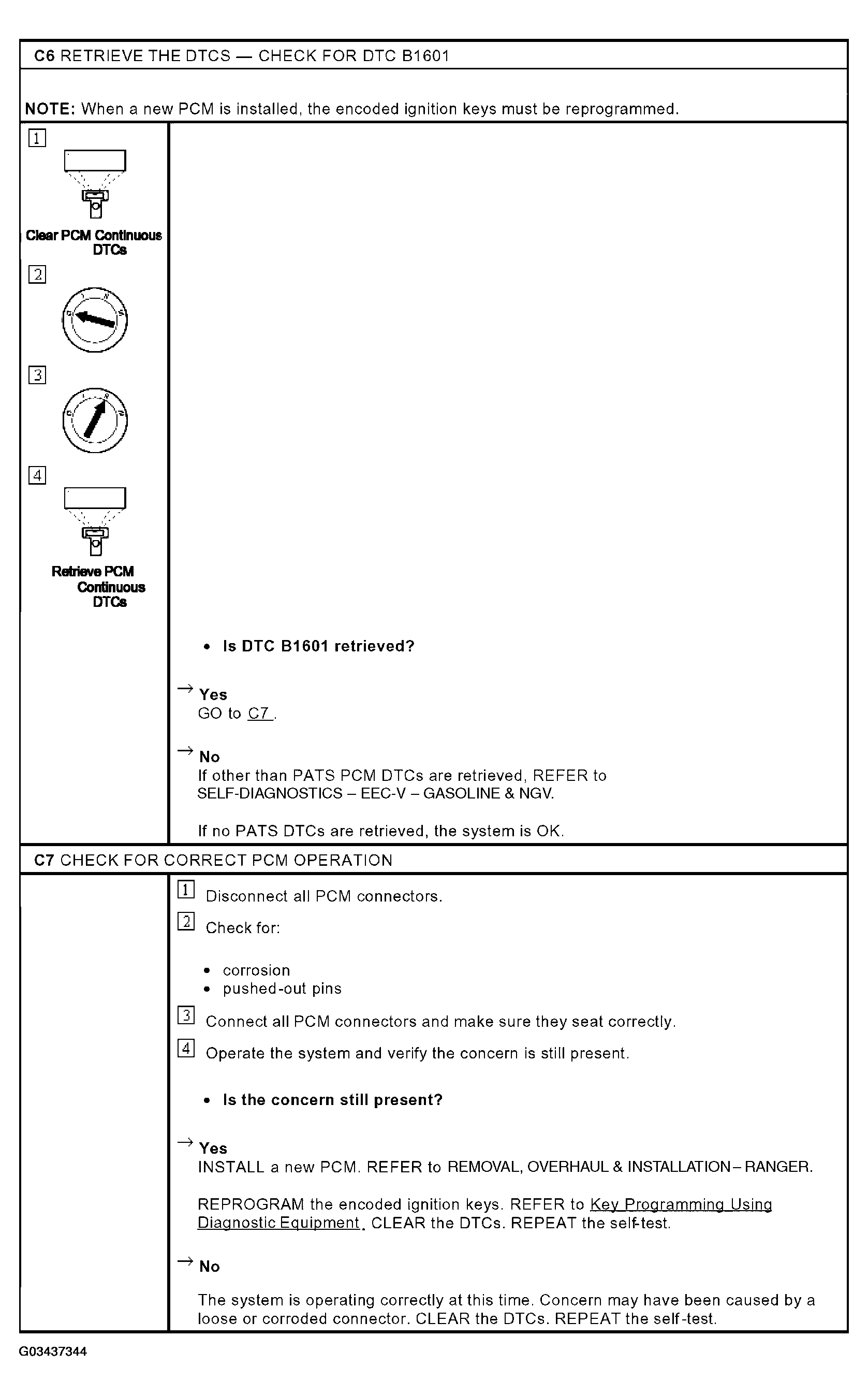

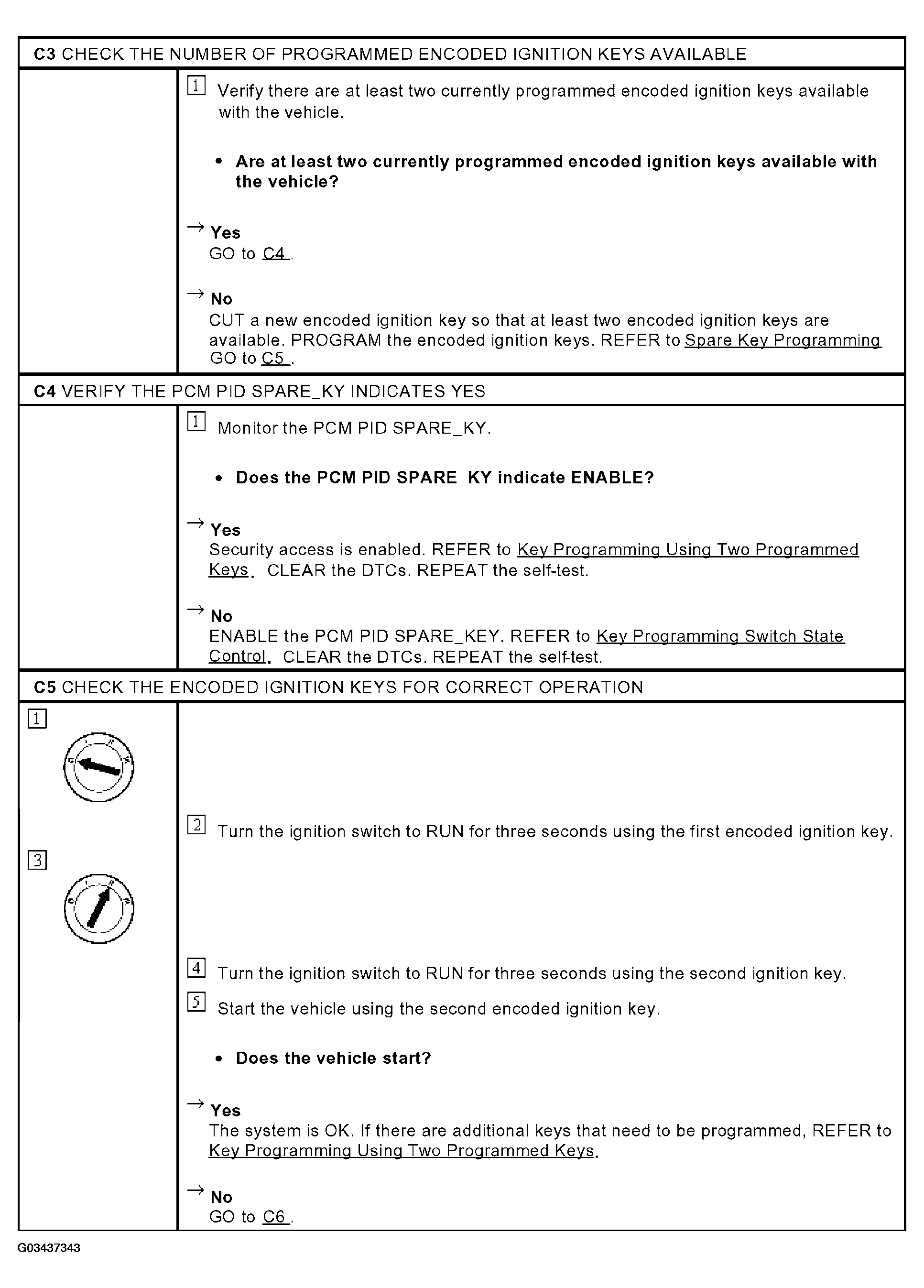

Pinpoint Test C: Pats Received Incorrect Key-Code From Ignition Key Transponder
WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The PCM disables the engine for 20 seconds every time DTC B1601 is set. The ignition must remain in the RUN position for at least 20 seconds before an attempt is made to start the vehicle with any encoded ignition key. Check the PCM PID ANTISCAN for this unprogrammed key timeout status.
NOTE:
Large metallic objects, electronic devices on the key chain that can be used to purchase gasoline or similar items, or a second key on the same key ring as the PATS ignition key may cause vehicle starting problems and record DTCs under certain conditions. If a fault cannot be identified, examine the customer's key ring for such objects or devices. If present, inform the customer that they need to keep these objects from touching the PATS ignition key while starting the engine. These objects and devices cannot damage the PATS ignition key, but can cause a momentary concern if they are too close to the key during engine start. If a concern occurs, turn ignition OFF and restart the engine with all other objects on the key ring held away from the ignition key. Check to make sure the encoded ignition key used by the customer is a Ford approved encoded ignition key (Rotunda is the only approved encoded ignition key).
