Pinpoint Test A: No Antenna Detected

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

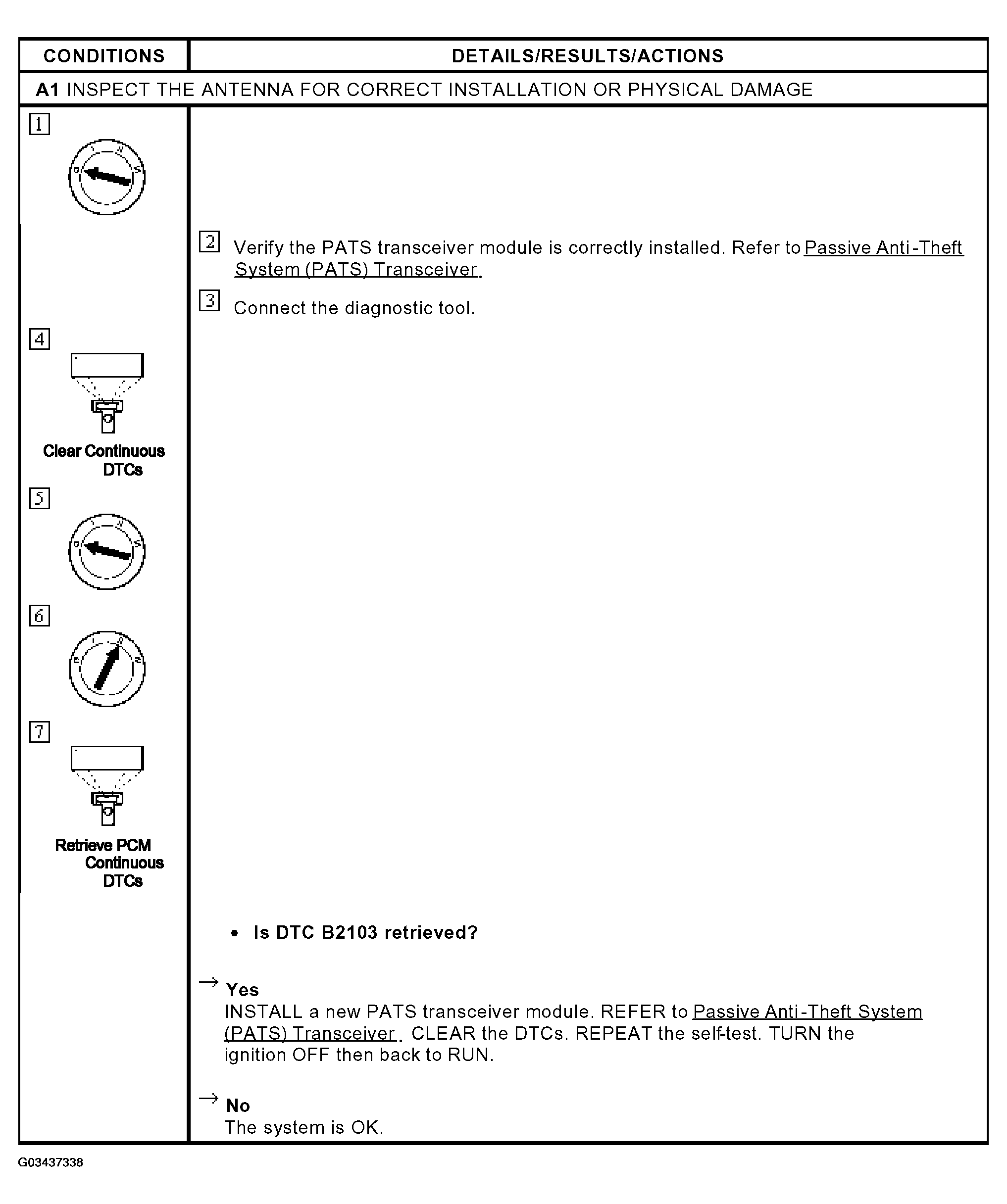

Fig 1: Pinpoint Test A: No Antenna Detected
G03437338Courtesy of FORD MOTOR CO.
