Pinpoint Test G: The Dome Lamp Is Inoperative

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

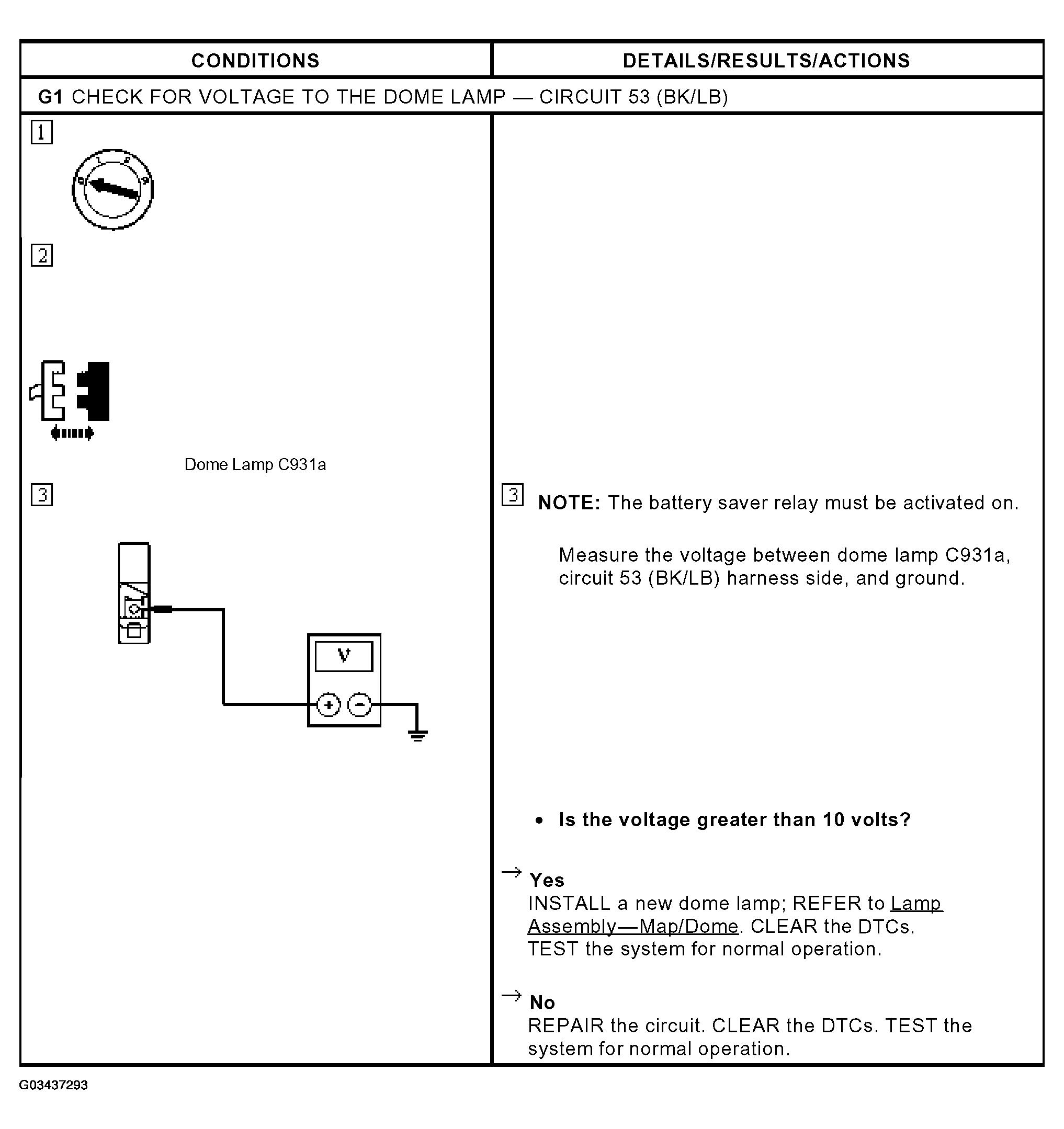

Fig 1: Pinpoint Test G: Dome Lamp Is Inoperative
G03437293Courtesy of FORD MOTOR CO.
