Pinpoint Test F: An Individual Demand Lighting Lamp Is Inoperative
WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

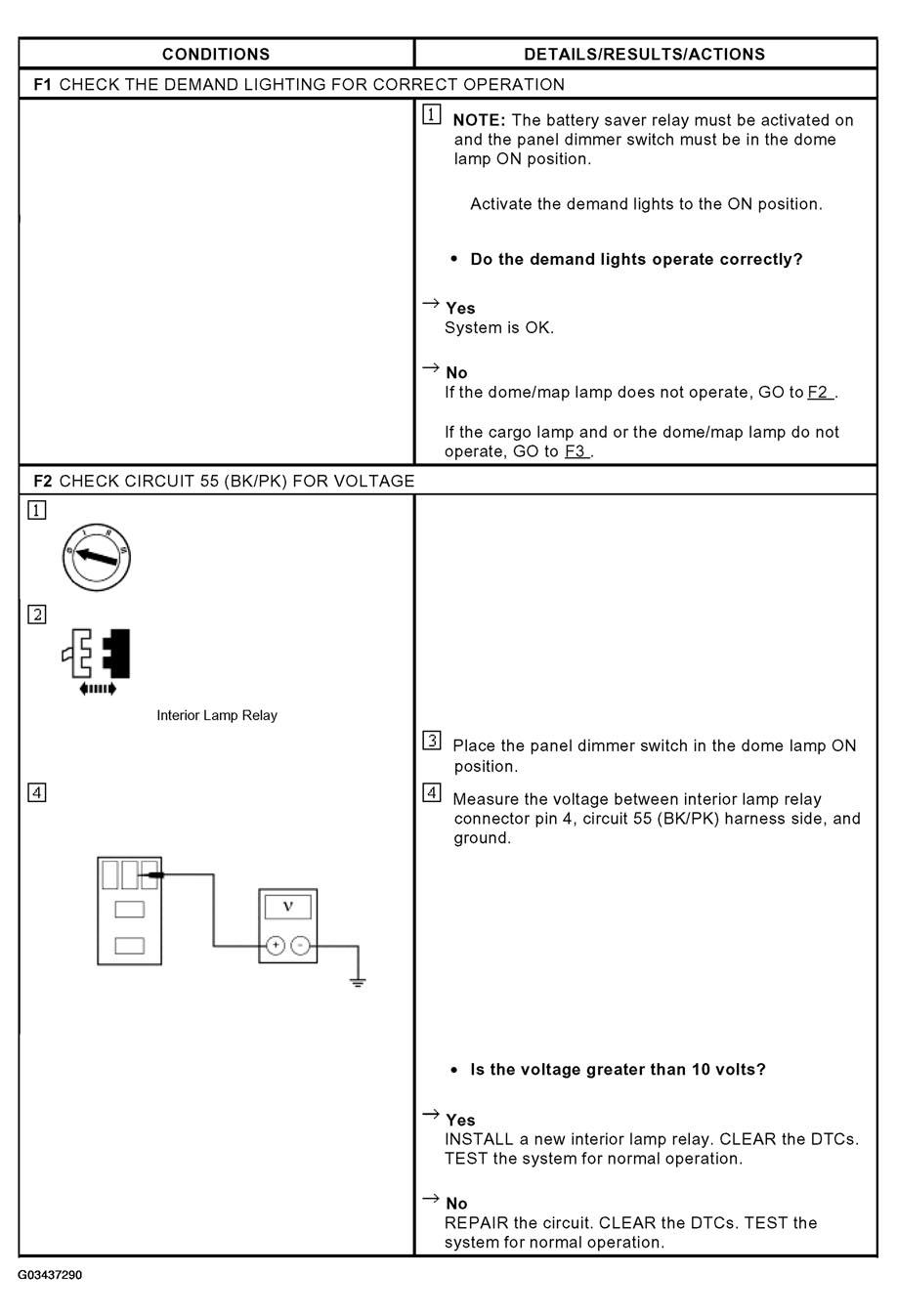

Fig 1: Pinpoint Test F: An Individual Demand Lighting Lamp Is Inoperative (F1-F2)
Courtesy of FORD MOTOR CO.

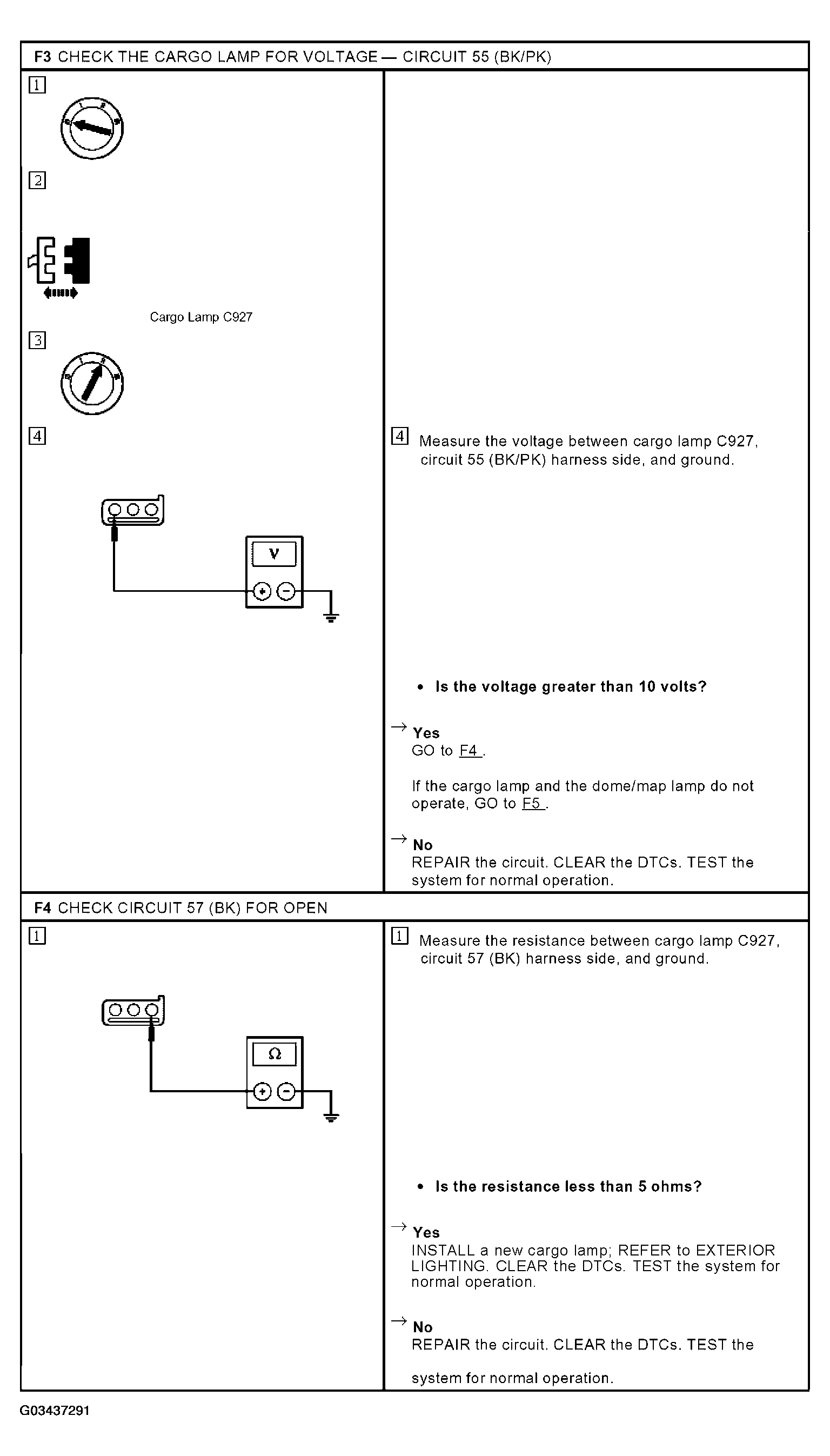

Fig 2: Pinpoint Test F: An Individual Demand Lighting Lamp Is Inoperative (F3-F4)
Courtesy of FORD MOTOR CO.

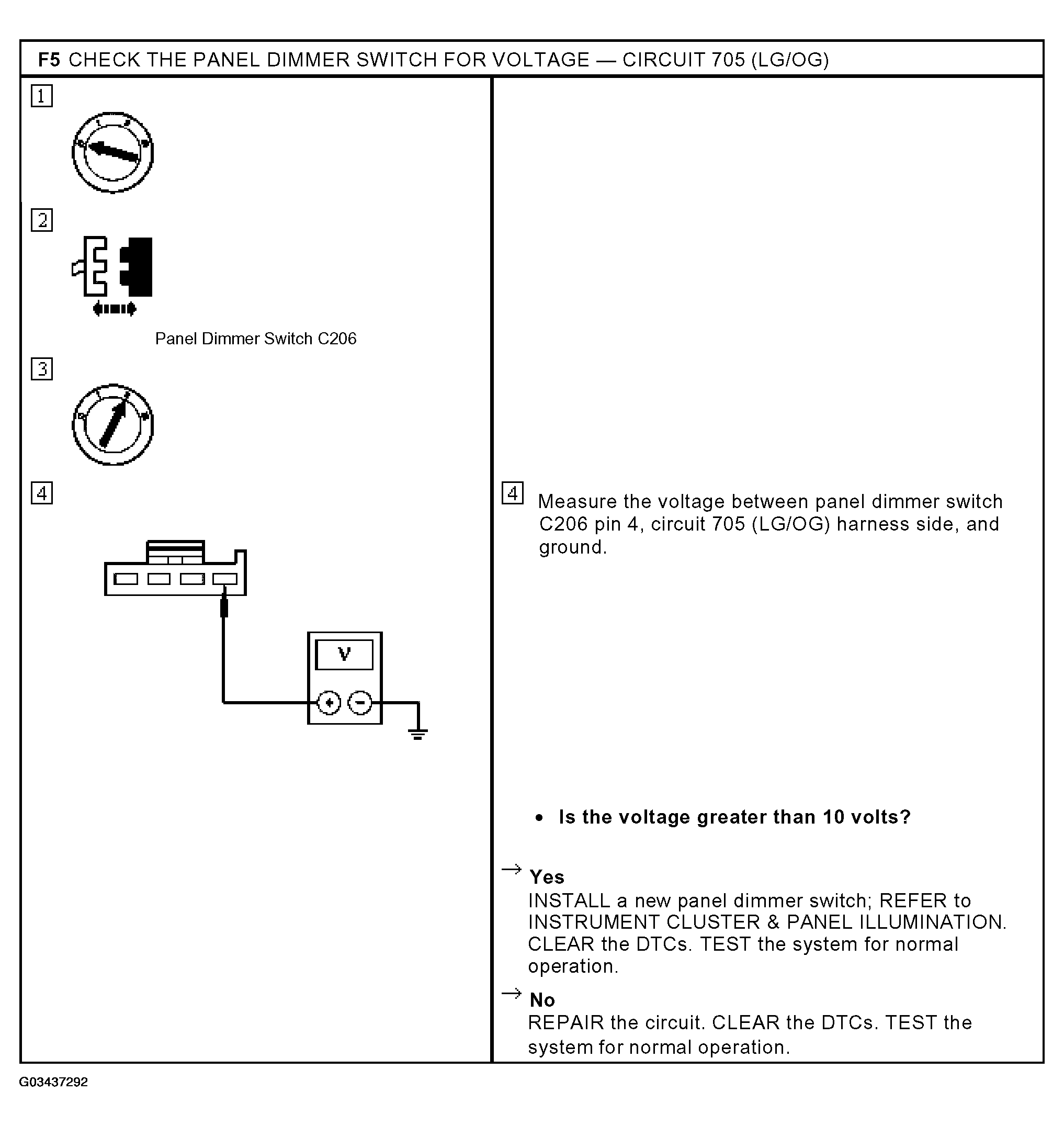

Fig 3: Pinpoint Test F: An Individual Demand Lighting Lamp Is Inoperative (F5)
