Pinpoint Test A: The Courtesy Lamps Are Inoperative
WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

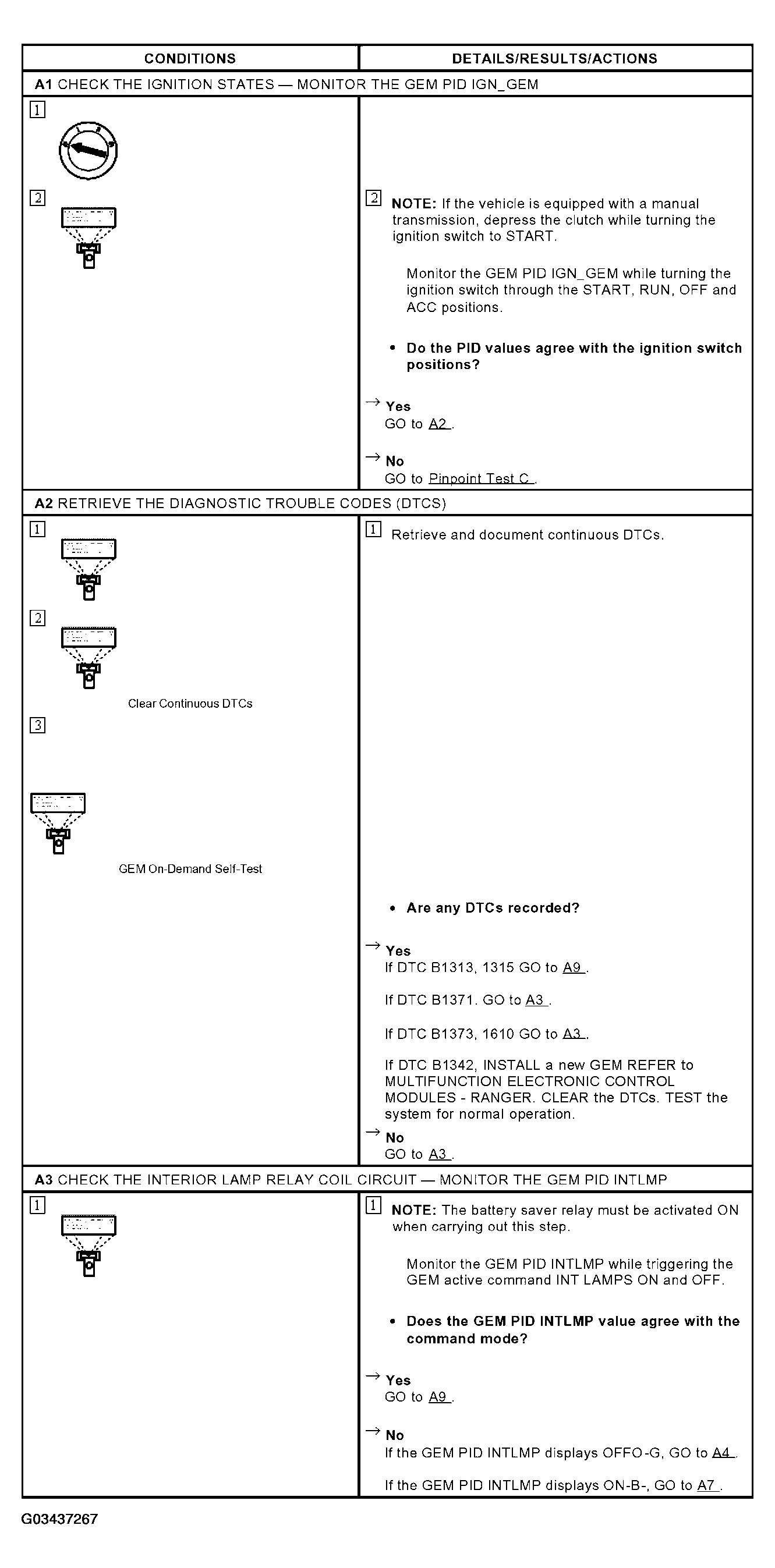

Fig 1: Pinpoint Test A: Courtesy Lamps Are Inoperative (A1-A3)
Courtesy of FORD MOTOR CO.

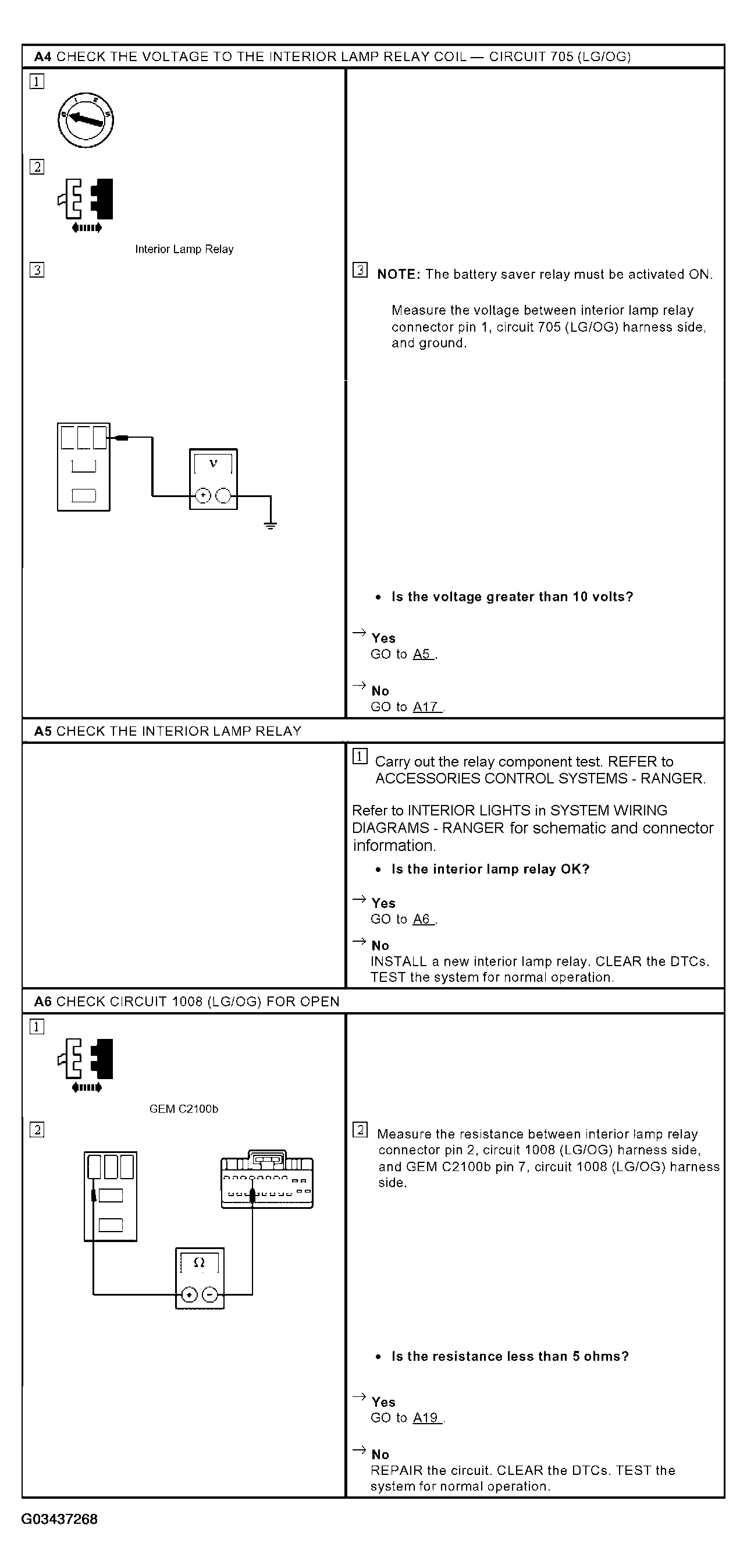

Fig 2: Pinpoint Test A: Courtesy Lamps Are Inoperative (A4-A6)
Courtesy of FORD MOTOR CO.

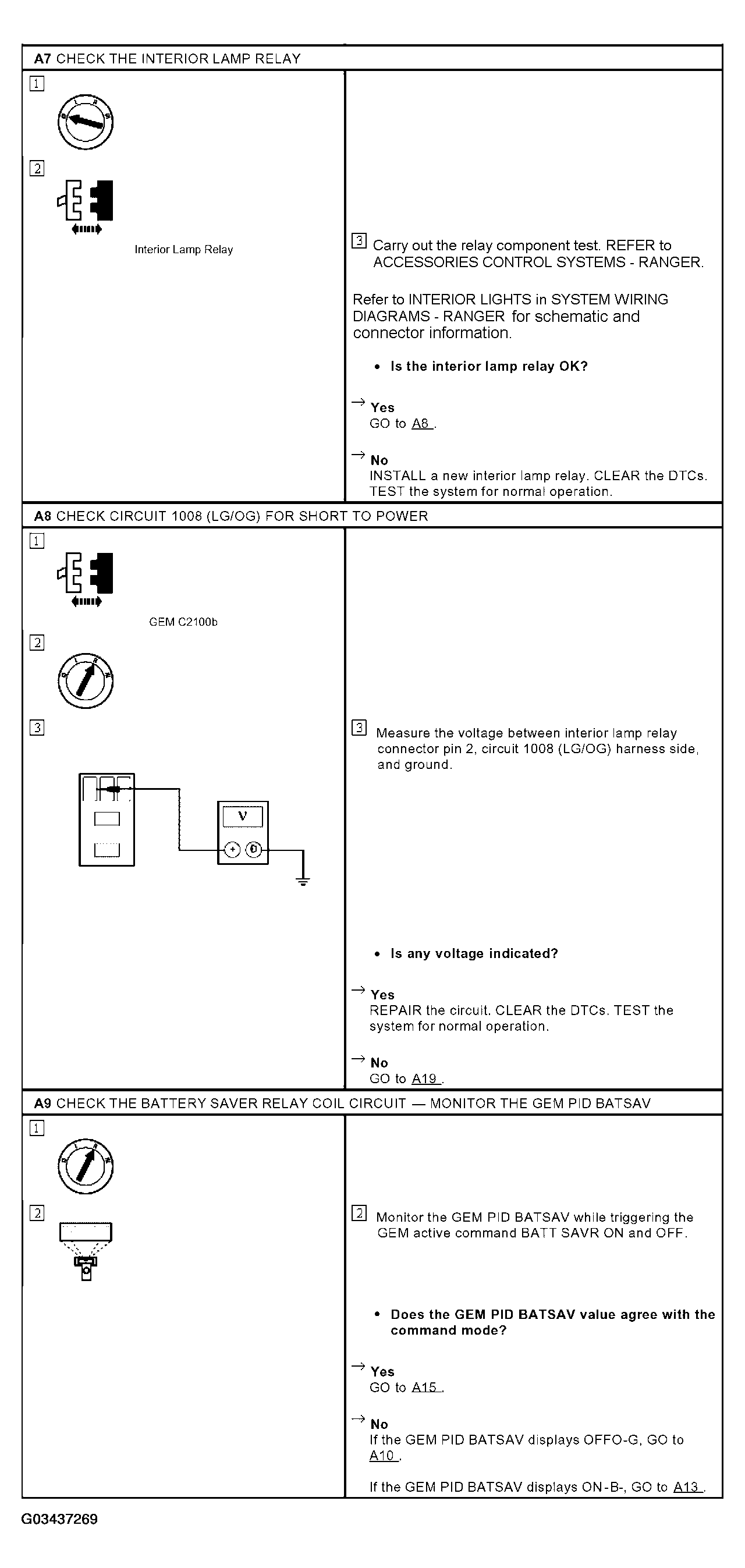

Fig 3: Pinpoint Test A: Courtesy Lamps Are Inoperative (A7-A9)
Courtesy of FORD MOTOR CO.

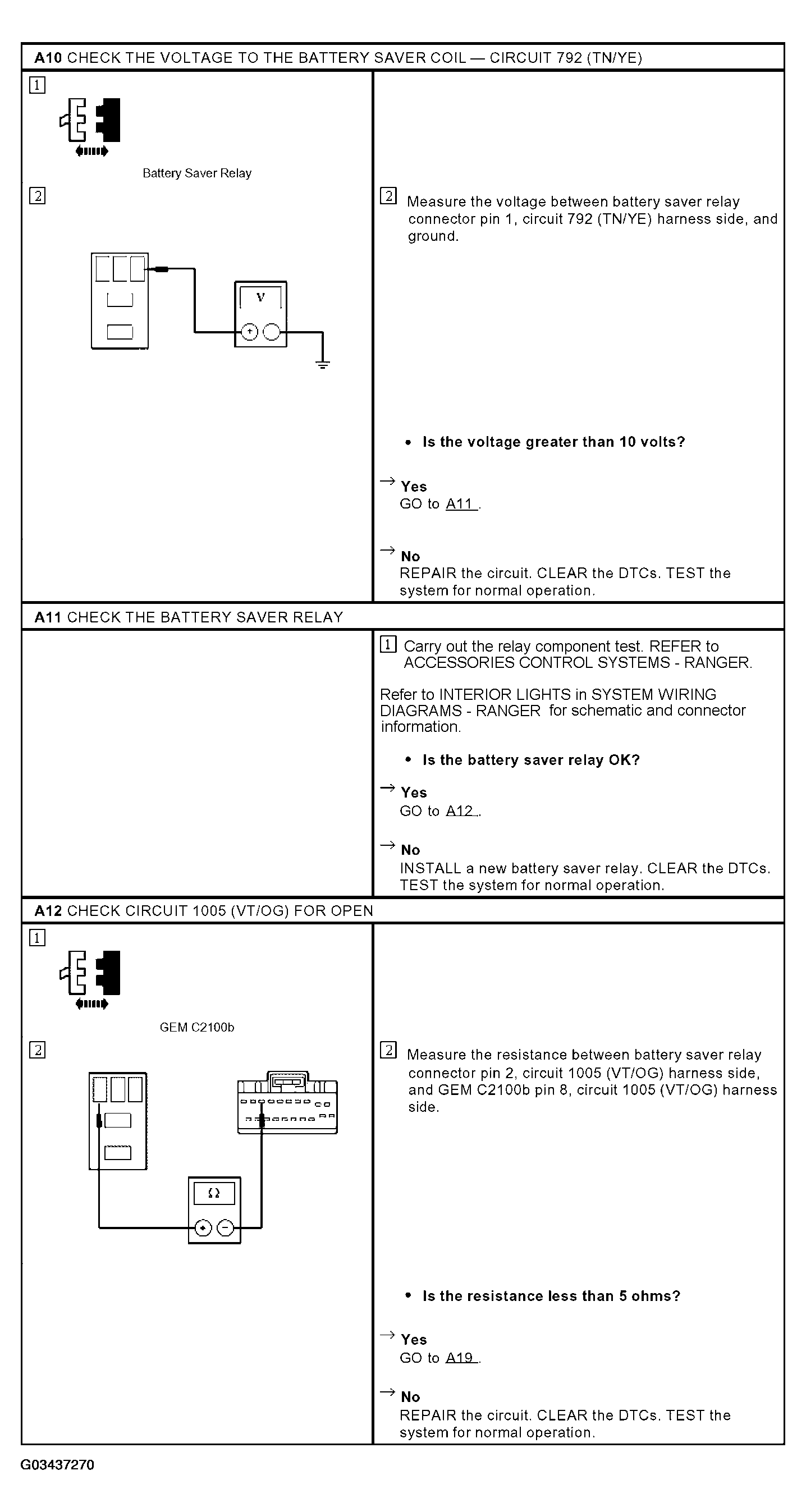

Fig 4: Pinpoint Test A: Courtesy Lamps Are Inoperative (A10-A12)
Courtesy of FORD MOTOR CO.

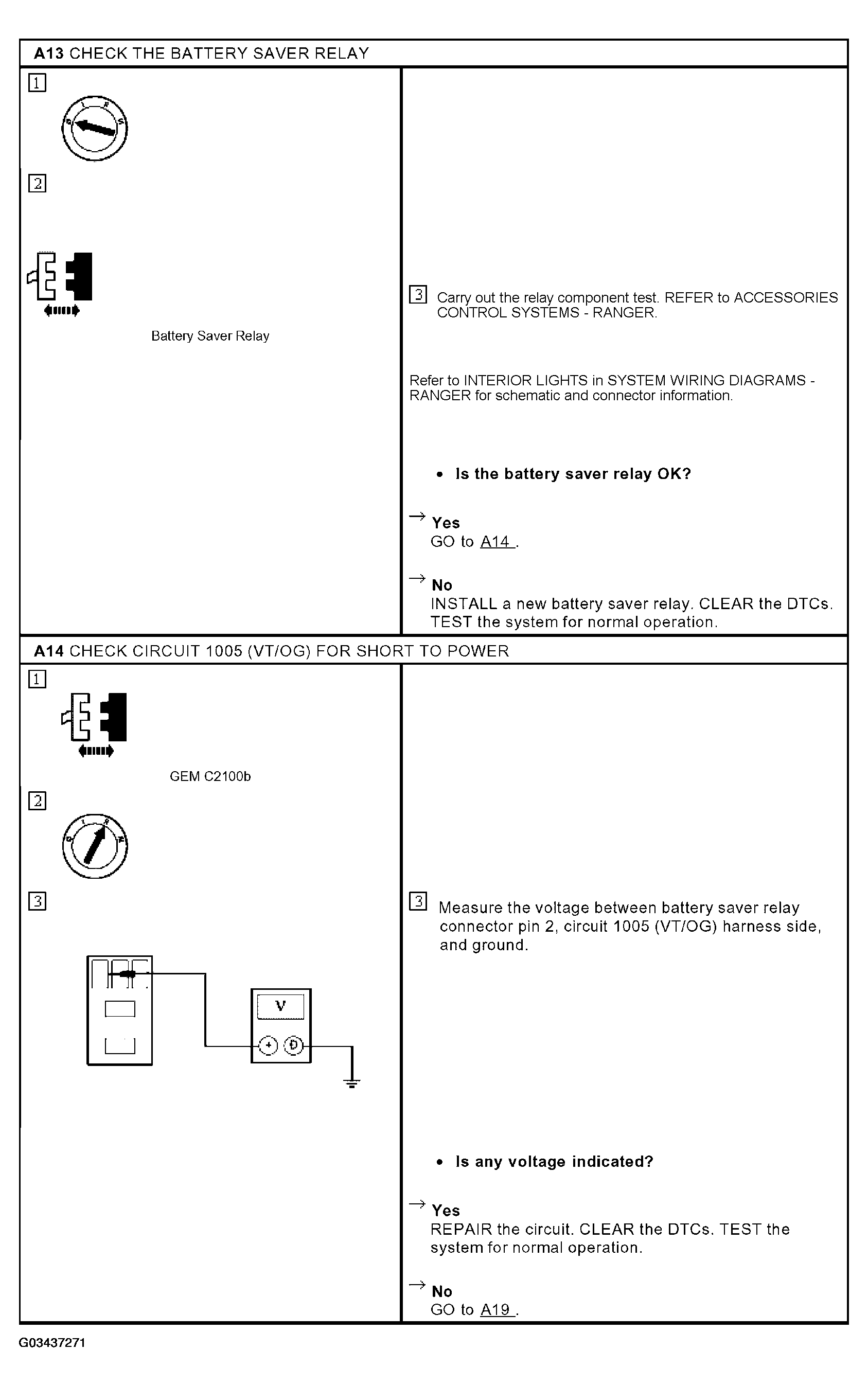

Fig 5: Pinpoint Test A: Courtesy Lamps Are Inoperative (A13-A14)
Courtesy of FORD MOTOR CO.

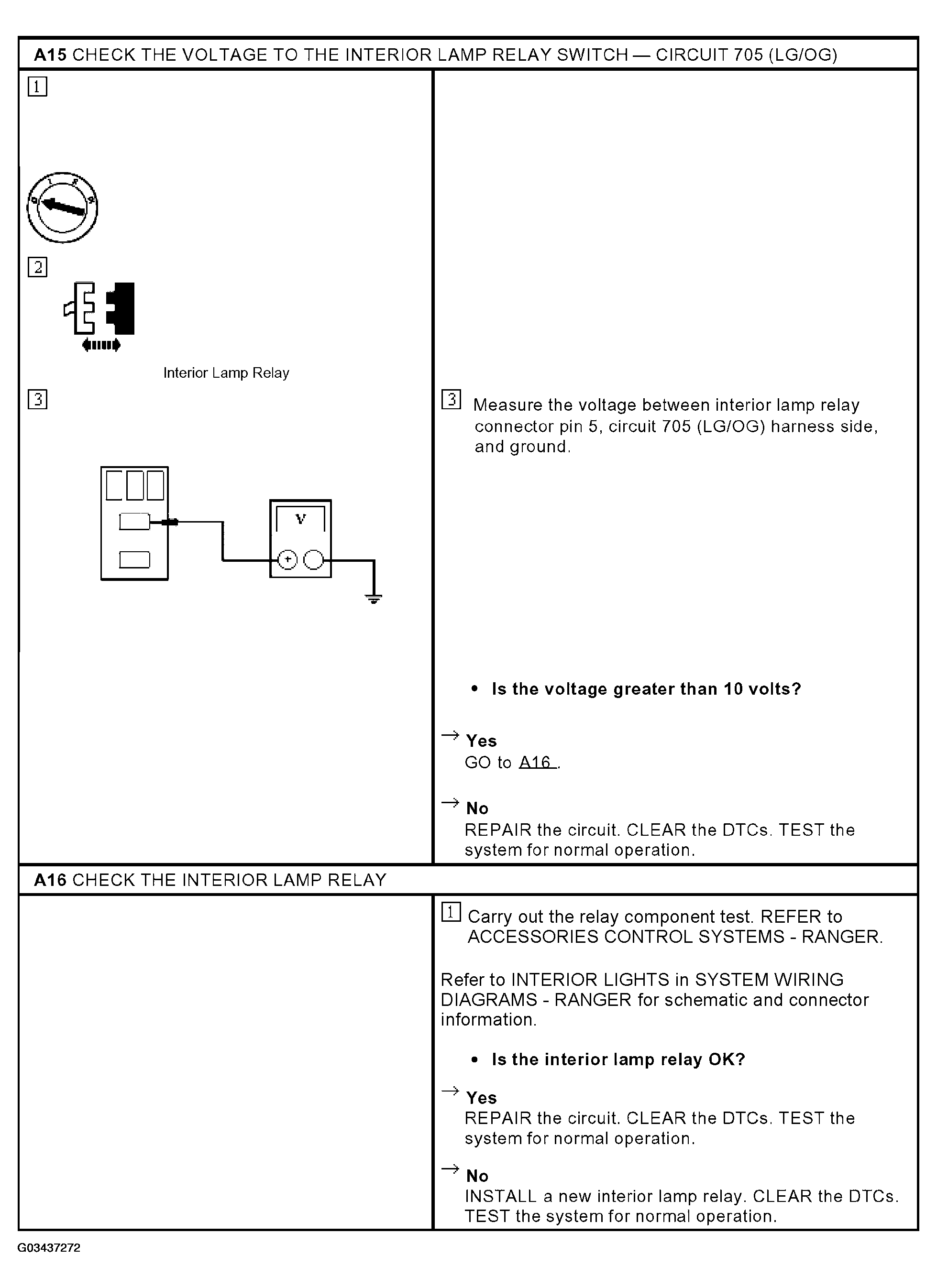

Fig 6: Pinpoint Test A: Courtesy Lamps Are Inoperative (A15-A16)
Courtesy of FORD MOTOR CO.

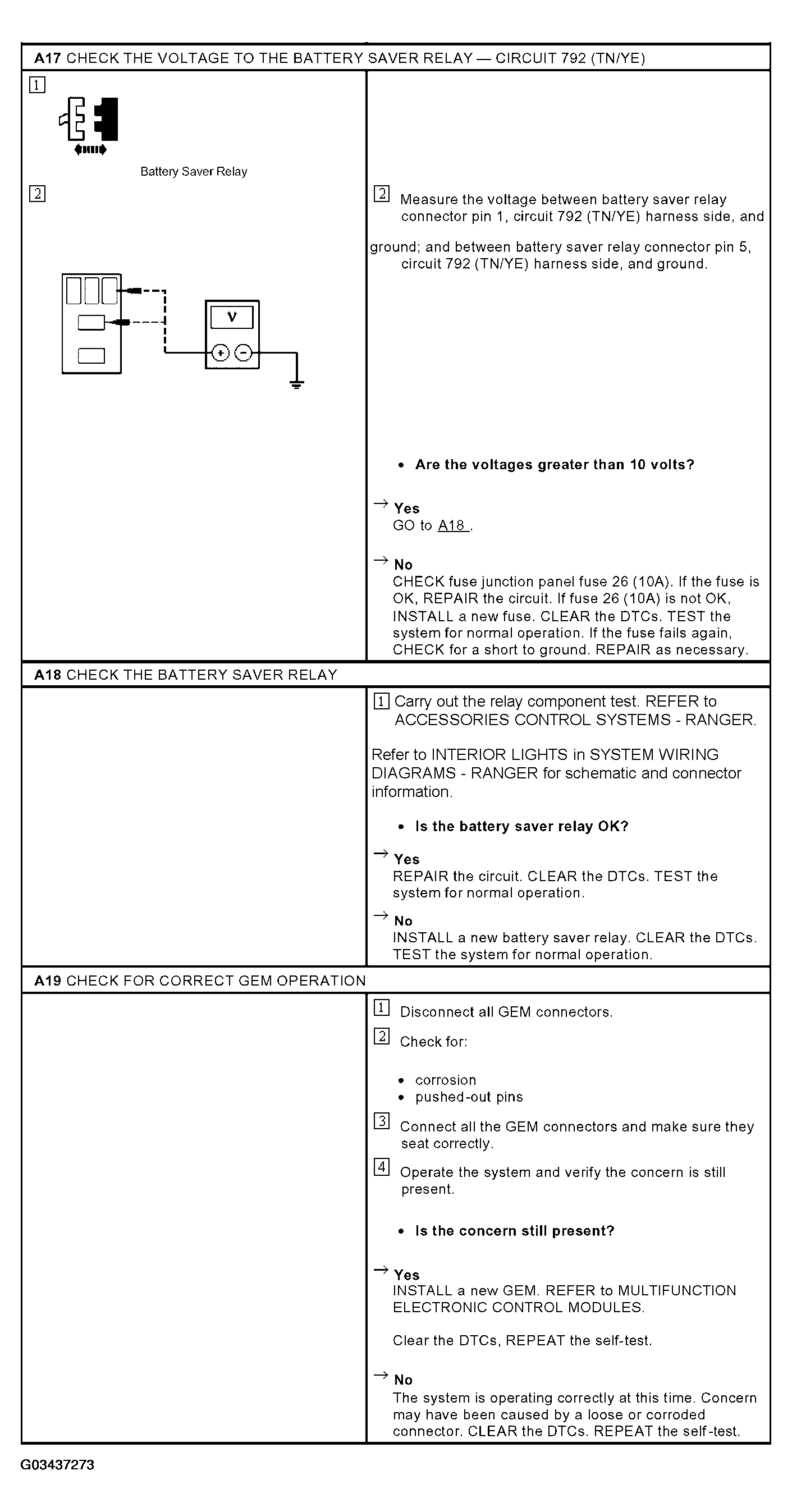

Fig 7: Pinpoint Test A: Courtesy Lamps Are Inoperative (A17-A19)
