WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

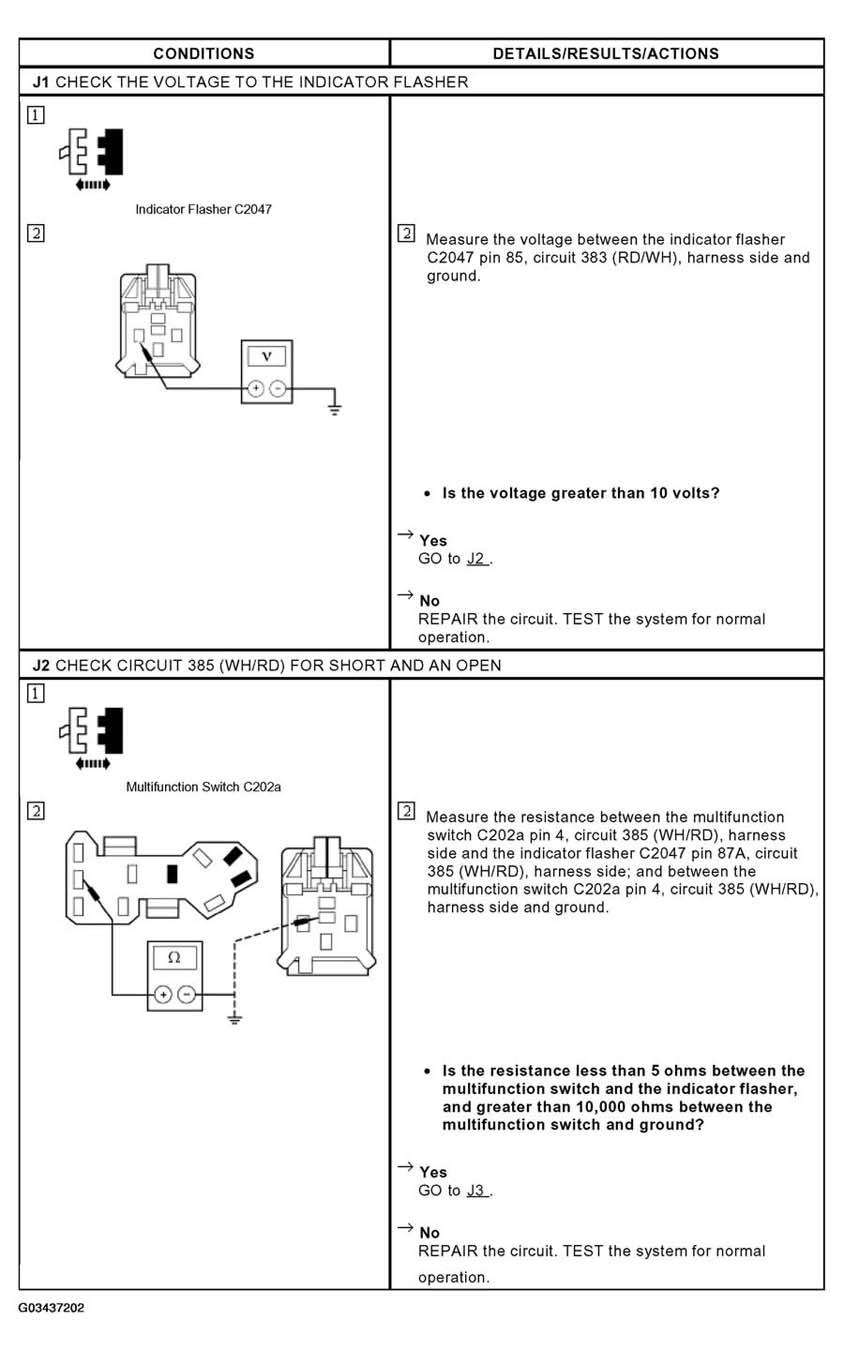

Fig 1: Identifying Pinpoint Test J: Hazard Lamps Are Never On (J1-J2)
Courtesy of FORD MOTOR CO.

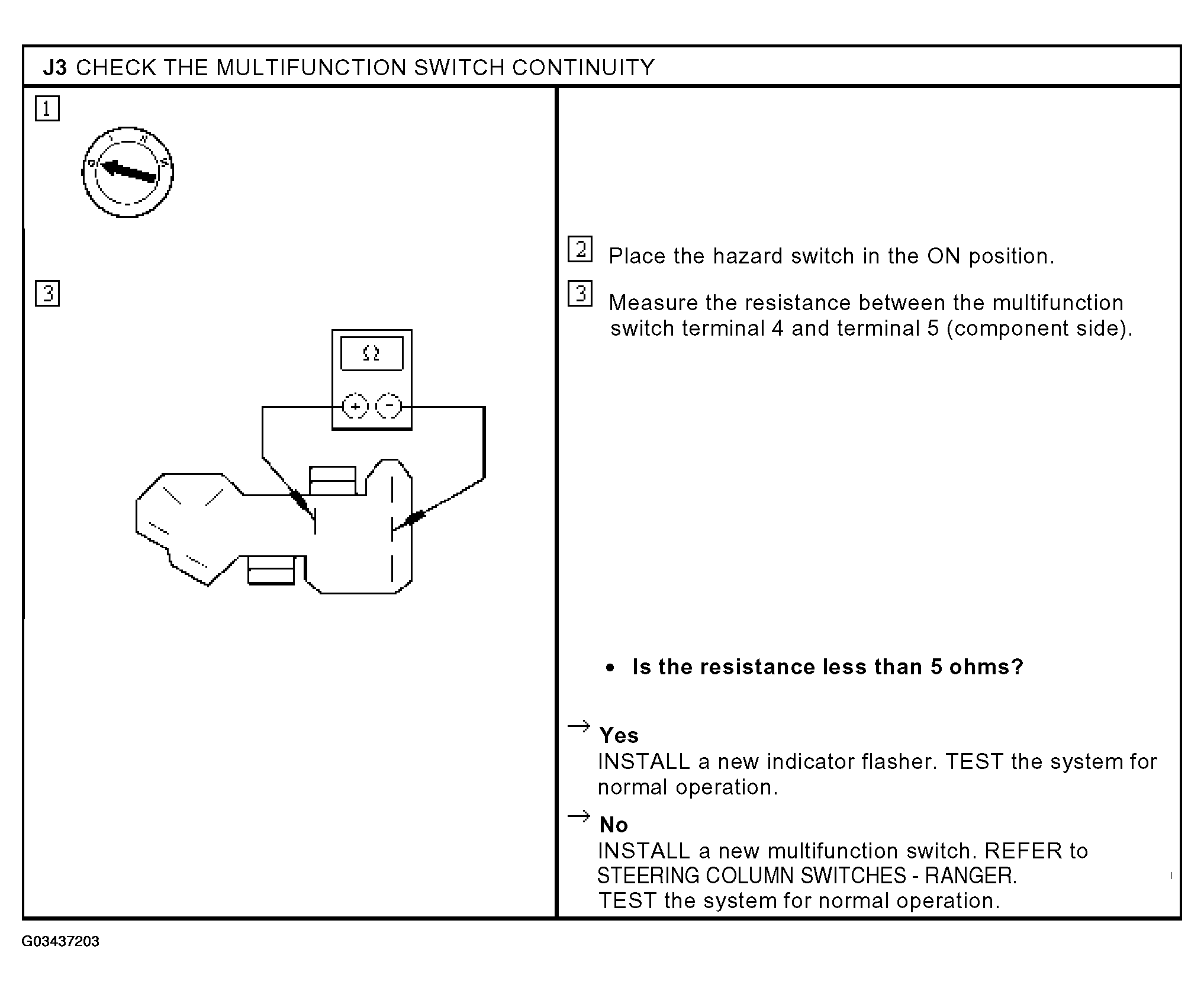

Fig 2: Identifying Pinpoint Test J: Hazard Lamps Are Never On (J3)
