Pinpoint Test G: The Stoplamps Are On Continuously

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

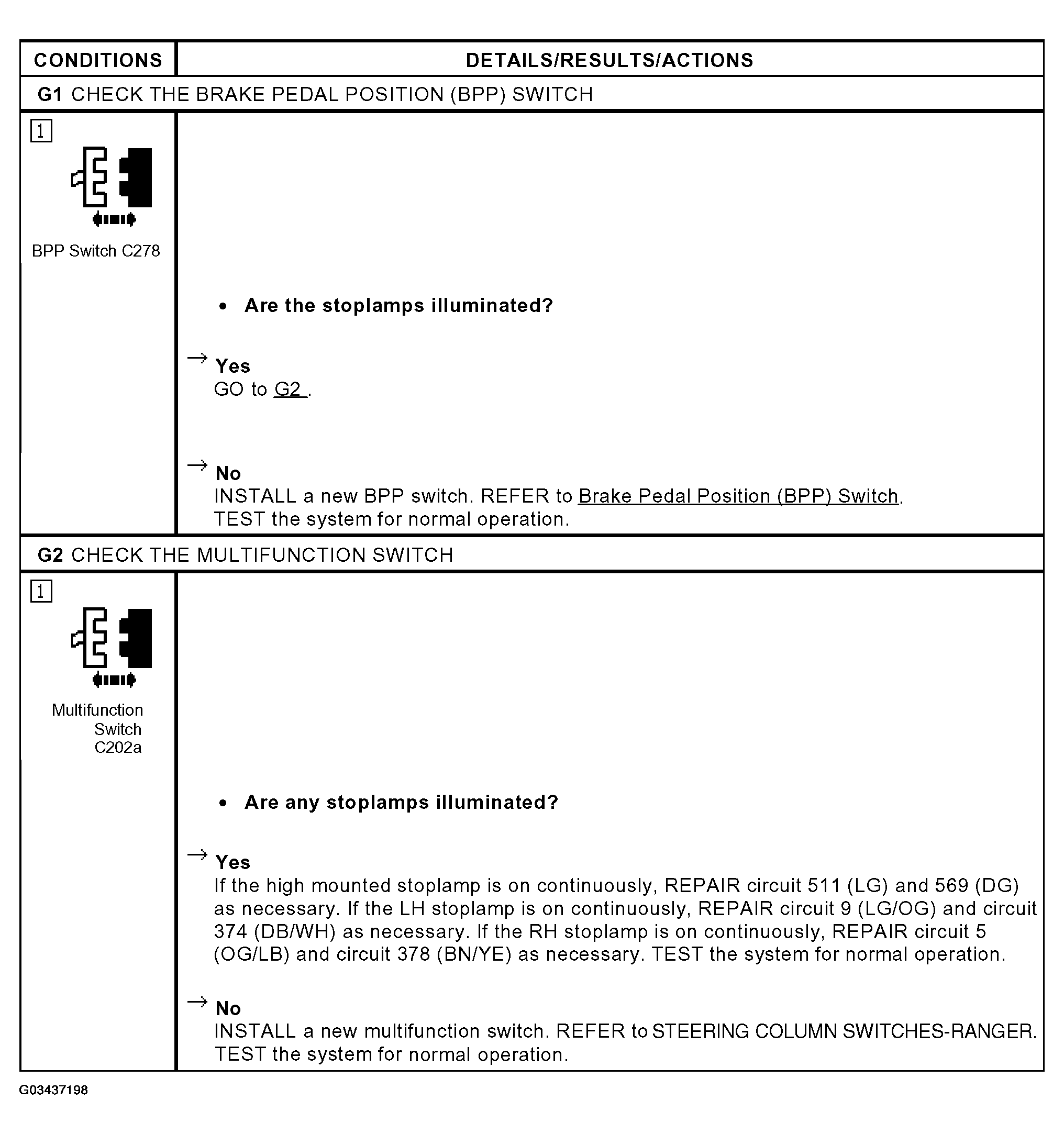

Fig 1: Identifying Pinpoint Test G: Stoplamps Are On Continuously
G03437198Courtesy of FORD MOTOR CO.
