Pinpoint Test P: The Individual Fog Lamp Is Inoperative

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

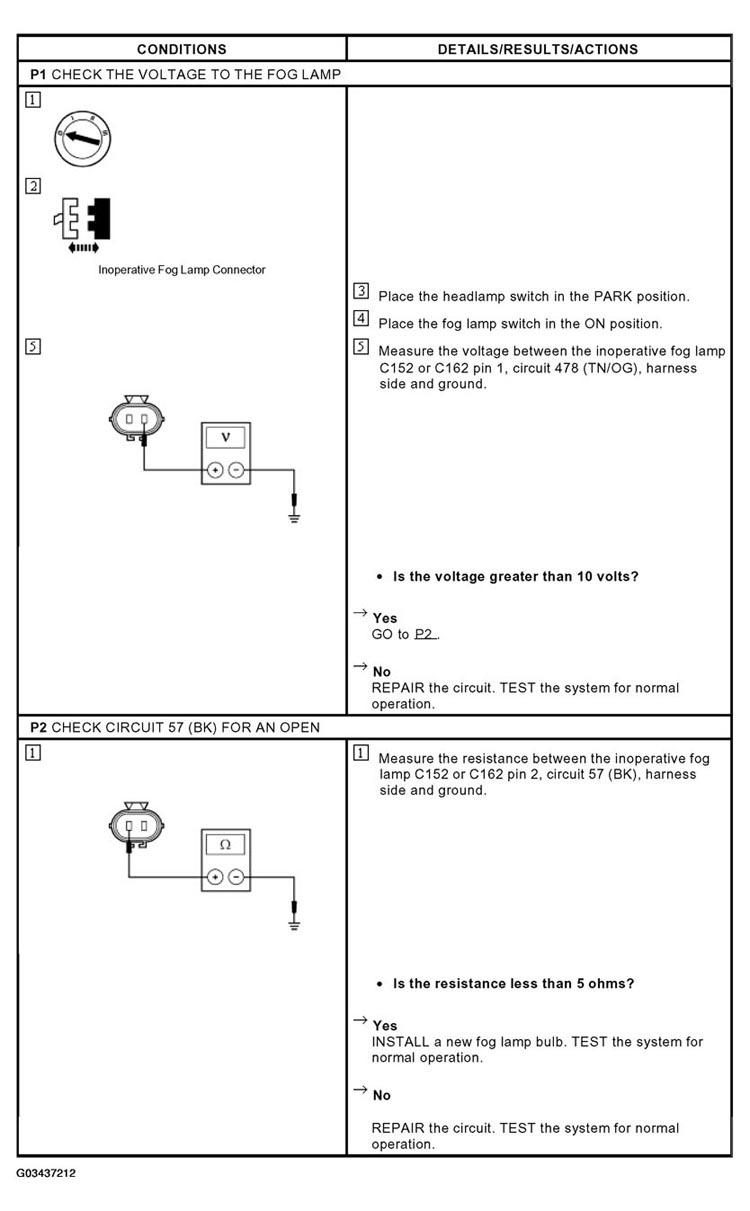

Fig 1: Identifying Pinpoint Test P: Individual Fog Lamp Is Inoperative
G03437212Courtesy of FORD MOTOR CO.
